| AWG: | 20-56 | Temperature: | 130/150/180/220 |
|---|---|---|---|
| Application: | Self Bonding Wire | Insulation: | UEW/PEW/SEIW |
| Standard: | NEMA/JIC/IEC | Size Range: | 0.012-0.8mm |
| Highlight: | round copper wire,thin coated copper wire |
||

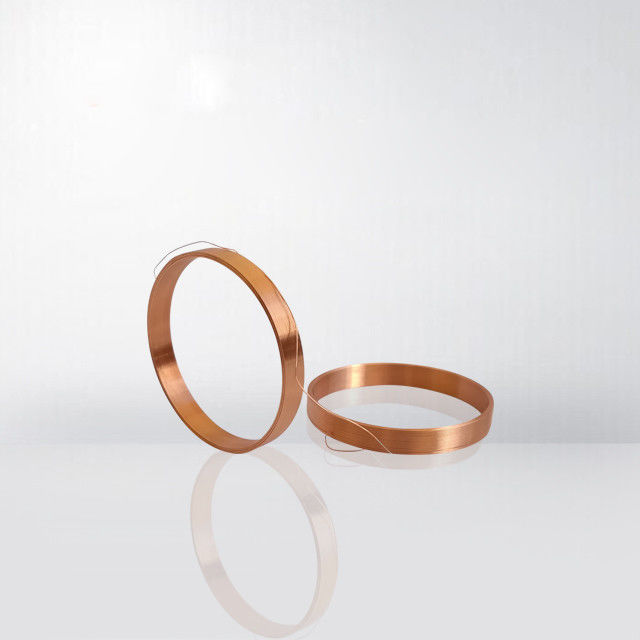

AWG 20 - 56 MULTIPLE COLOR ENAMELED ULTRA THIN COPPER WIRE MAGNET WIRE FOR VOICE COILS
The self bonding wire type 155 is a 2-ply self bonding wire which is used to produce thermally stimulated windings in an integral and thus space saving, machine suitable, efficient and cost-effective manner. In contrast to impregnants, these windings can be bonded quickly and environmentally friendly. The self bonding windings are characterised by their thermal and mechanical stability. State-of-the-art processing techniques, process controls and checks ensure the constant high quality of these wires.
FEATURES
Extreme fine size range:0.012mm-0.8mm
Excellent resistance to abrasion and solvent,
Excellent electricity performance
Excellent heat shock, adherence and flexibility
High cut through
CERTIFICATES
ISO 9001-2000, ISO TS 16949, ISO 14001-2004,
UL Approved, RoHS Directive Met
IEC, JIS and NEMA.
APPLICATIONS
Audio and TV coils
Stator windings
Solenoid coils and air coils
Electrical and electronic components
|
Nominal Diameter mm |
Tolerance |
Min. Increase of Diameter |
Max. Overall Diameter |
Breakdown Voltage |
Elongation |
Pin Hole |
Electrical Resistance |
||
|
|
|
|
|
|
|||||
|
mm |
≥ V |
≥% |
≤Default/5m |
Ω/km (20℃) |
|||||
|
|
|
|
|
Mandrel Method |
Twisted Method |
|
|
Min. |
Max. |
|
0.012 |
---- |
0.013 |
0.015 |
50 |
---- |
5 |
10 |
142.64 |
157.65 |
|
0.013 |
---- |
0.015 |
0.017 |
70 |
---- |
5 |
10 |
118.41 |
133.98 |
|
0.014 |
---- |
0.016 |
0.018 |
70 |
---- |
5 |
10 |
102.64 |
120.45 |
|
0.015 |
---- |
0.017 |
0.02 |
80 |
---- |
5 |
10 |
89.83 |
104.41 |
|
0.016 |
---- |
0.018 |
0.021 |
90 |
---- |
5 |
8 |
74.67 |
97.56 |
|
0.017 |
---- |
0.019 |
0.022 |
90 |
---- |
5 |
8 |
66.6 |
85.75 |
|
0.018 |
---- |
0.02 |
0.023 |
100 |
---- |
5 |
8 |
59.77 |
75.95 |
|
0.019 |
---- |
0.021 |
0.024 |
100 |
---- |
5 |
8 |
53.95 |
67.75 |
|
0.02 |
0.002 |
0.022 |
0.024 |
100 |
---- |
5 |
8 |
|
|
|
0.05 |
±0.002 |
0.007 |
0.062 |
400 |
1200 |
12 |
5 |
7981 |
9528 |
|
0.055 |
±0.002 |
0.007 |
0.068 |
400 |
1200 |
12 |
5 |
6642 |
7815 |
