| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | AWG 44 - 24 |
| Minimum Order Quantity: | Different types with differet MOQ |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Product Name: | Ultra Fine Litz Wire | Size Range: | 0.020-0.5mm |
|---|---|---|---|
| Color: | Nature Or Customized | Stock: | Available |
| Standards: | IEC/JIS/NEMA | ||
| Highlight: | soldering litz wire,rectangular litz wire |
||

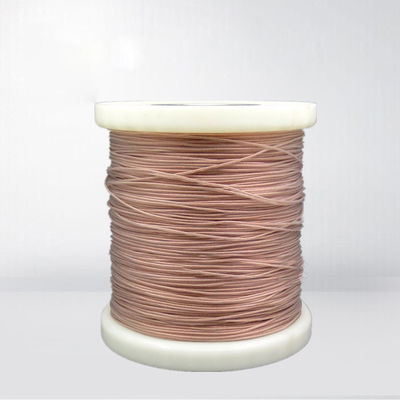

AWG 44 - 24GAUGE ULTRA FINE ENAMELED WIRE HIGH FREQUENCY SILK COVERED LITZ WIRE
Litz wire is a type of cable used in electronics to carry alternating current which is designed to withstand high frequency environments. It is widely suitable for severe temperature duty continuously as well as high frequency applications.
BENEFITS
Increased efficiency
Mitigation of skin and proximity effect
Minimize the power losses due to skin effect
Superior Q characteristics at high frequencies.
Reduced footprint of final product
Substantial weight reduction
Avoidance of "hot spots"
0.020-0.5mm
APPLICATIONS
Coils in higher frequency ranges
|
Conductor dia.(mm) |
Typical overall dia.(mm) |
Max.overall diameter(mm) |
Max. conductor resistance(/km) |
Unit Weight(kg/km) |
|
7/0.10 |
0.524 |
0.58 |
346.9 |
0.679 |
|
7/0.11 |
0.554 |
0.61 |
285.2 |
0.797 |
|
7/0.12 |
0.59 |
0.65 |
238.4 |
0.931 |
|
7/0.13 |
0.62 |
0.68 |
202.4 |
1.069 |
|
7/0.14 |
0.65 |
0.71 |
173.8 |
1.217 |
|
7/0.15 |
0.68 |
0.74 |
151.1 |
1.375 |
|
7/0.16 |
0.716 |
0.77 |
132.4 |
1.55 |
|
7/0.17 |
0.746 |
0.8 |
117 |
1.728 |
|
7/0.18 |
0.776 |
0.83 |
104.2 |
1.917 |
|
7/0.19 |
0.806 |
0.86 |
93.34 |
2.115 |
|
7/0.20 |
0.836 |
0.89 |
84.1 |
2.323 |
|
7/0.21 |
0.866 |
0.92 |
76.18 |
2.541 |
|
7/0.22 |
0.896 |
0.95 |
69.96 |
2.769 |
|
7/0.23 |
0.932 |
0.99 |
63.91 |
3.017 |
|
7/0.24 |
0.962 |
1.02 |
58.61 |
3.265 |
|
7/0.25 |
0.992 |
1.05 |
53.94 |
3.523 |
|
7/0.26 |
1.022 |
1.08 |
49.81 |
3.792 |
|
7/0.27 |
1.052 |
1.11 |
46.13 |
4.07 |
|
7/0.28 |
1.082 |
1.14 |
42.85 |
4.358 |
|
7/0.29 |
1.112 |
1.17 |
39.91 |
4.656 |
|
7/0.30 |
1.148 |
1.2 |
37.01 |
4.976 |
