| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | 0.012mm |
| Minimum Order Quantity: | Different types with differet MOQ |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Thermal Class: | 155/180 | Insulation: | UEW |
|---|---|---|---|
| Delivery: | 2-30days | Stock: | Available |
| Highlight: | thin coated copper wire,soldering copper wire |
||

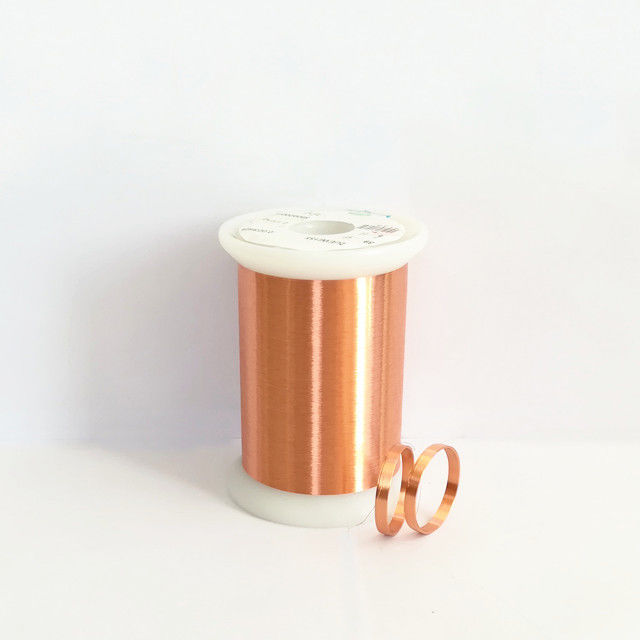

0.012MM SUPER FINE ENAMELED COPPER WIRE WINDING WIRE CALSS 155/180 FOR VOICE COIL
0.012mm,0.013mm,0.015mm-0.15mm superfine/ultrafine enamelled copper wire are corresponding to the industry standards IEC60317, NEMA MW1000 JIS C3202or to customer specific requirements.
FEATURES
1. High Quality Standard for Enamelled Wire Products The effectiveness of the quality assurance measures has been confirmed by external auditors repeatedly in numerous certificates
2. Environmentally Compatible Enamelled Copper Wire. Our products are confriemd by Independent laboratories confirm with their corresponding RoHS certificates.
APPLICATION
transformers and motors,voice coil, relays, coils, Ignition coils etc
Specifications of superfine and fine wire
SPECIFICATION
|
Nominal Diameter mm |
Tolerance |
Min. Increase of Diameter |
Max. Overall Diameter |
Breakdown Voltage |
Elongation |
Pin Hole |
Electrical Resistance |
||
|
mm |
≥ V |
≥% |
≤Default/5m |
Ω/km (20℃) |
|||||
|
|
|
|
|
Mandrel Method |
Twisted Method |
|
|
Min. |
Max. |
|
0.012 |
---- |
0.013 |
0.015 |
50 |
---- |
5 |
10 |
142.64 |
157.65 |
|
0.013 |
---- |
0.015 |
0.017 |
70 |
---- |
5 |
10 |
118.41 |
133.98 |
|
0.014 |
---- |
0.016 |
0.018 |
70 |
---- |
5 |
10 |
102.64 |
120.45 |
|
0.015 |
---- |
0.017 |
0.02 |
80 |
---- |
5 |
10 |
89.83 |
104.41 |
|
0.016 |
---- |
0.018 |
0.021 |
90 |
---- |
5 |
8 |
74.67 |
97.56 |
|
0.017 |
---- |
0.019 |
0.022 |
90 |
---- |
5 |
8 |
66.6 |
85.75 |
|
0.018 |
---- |
0.02 |
0.023 |
100 |
---- |
5 |
8 |
59.77 |
75.95 |
|
0.019 |
---- |
0.021 |
0.024 |
100 |
---- |
5 |
8 |
53.95 |
67.75 |
|
0.05 |
±0.002 |
0.007 |
0.062 |
400 |
1200 |
12 |
5 |
7981 |
9528 |
|
0.055 |
±0.002 |
0.007 |
0.068 |
400 |
1200 |
12 |
5 |
6642 |
7815 |
|
0.06 |
±0.002 |
0.007 |
0.073 |
500 |
1200 |
14 |
5 |
5614 |
6526 |
|
0.065 |
±0.002 |
0.007 |
0.078 |
500 |
1200 |
14 |
5 |
4807 |
5531 |
|
0.07 |
±0.002 |
0.007 |
0.083 |
500 |
1200 |
15 |
5 |
4163 |
4747 |
|
0.075 |
±0.002 |
0.007 |
0.088 |
550 |
1200 |
15 |
5 |
3640 |
4119 |
|
0.08 |
±0.002 |
0.008 |
0.094 |
550 |
1200 |
16 |
5 |
3209 |
3608 |
|
0.085 |
±0.002 |
0.008 |
0.099 |
550 |
1200 |
16 |
5 |
2851 |
3187 |
|
0.09 |
±0.002 |
0.01 |
0.106 |
650 |
1200 |
16 |
5 |
2550 |
2835 |
|
0.095 |
±0.002 |
0.01 |
0.111 |
650 |
1200 |
17 |
5 |
2294 |
2538 |
|
0.1 |
±0.002 |
0.011 |
0.118 |
650 |
1200 |
17 |
5 |
2074 |
2286 |
|
0.11 |
±0.002 |
0.011 |
0.129 |
---- |
1300 |
17 |
5 |
1720 |
1882 |
|
0.12 |
±0.002 |
0.011 |
0.139 |
---- |
1500 |
17 |
5 |
1450 |
1577 |
|
0.13 |
±0.002 |
0.011 |
0.149 |
---- |
1500 |
18 |
5 |
1239 |
1340 |
|
0.14 |
±0.002 |
0.011 |
0.159 |
---- |
1600 |
19 |
5 |
1070 |
1153 |
|
0.15 |
±0.002 |
0.011 |
0.169 |
---- |
1700 |
20 |
5 |
934.1 |
1002 |
|
0.16 |
±0.002 |
0.012 |
0.18 |
---- |
1700 |
21 |
5 |
822.3 |
879.4 |
|
0.17 |
±0.003 |
0.013 |
0.192 |
---- |
2000 |
22 |
5 |
721.1 |
787.1 |
|
0.18 |
±0.003 |
0.014 |
0.204 |
---- |
2000 |
22 |
5 |
644.4 |
700.7 |
|
0.19 |
±0.003 |
0.014 |
0.214 |
---- |
2000 |
23 |
5 |
579.4 |
627.8 |
|
0.2 |
±0.003 |
0.014 |
0.224 |
---- |
2000 |
23 |
5 |
523.7 |
565.7 |
