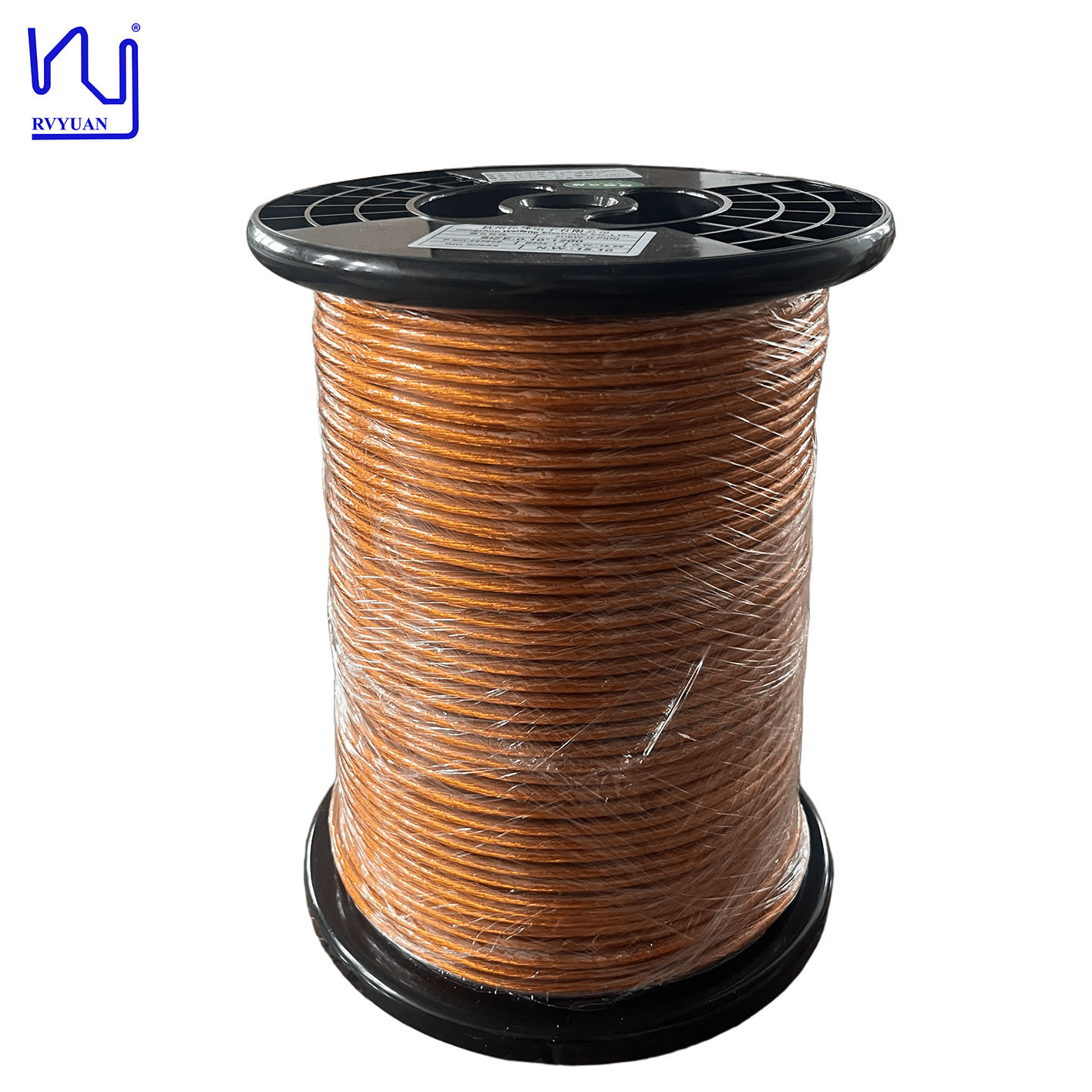

2UEW-H-PI 0.1mmx1200 Taped Litz Wire For Transformer

Basic Information

Place of Origin:	China
Brand Name:	RVYUAN
Certification:	ISO9001/ISO14001 /UL/SGS
Model Number:	USTC

Minimum Order Quantity:	20kg
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	15 workding days
Payment Terms:	T/T/ Paypal
Supply Ability:	Satisfy your demand

Get Best Price Contact Now

Detail Information

Diameter:	0.1mm	Temperature:	180
Certification:	IEC/NEMA/JIS/RoHS/ISO	Conductor:	Copper
Strands:	180	Breakdown Voltage:	Min.6000
Key Word:	2UEW-H-PI 0.1mmx1200 Taped Litz Wire For Transformer
Highlight:	0.1mm taped Litz wire , 1200 transformer Litz wire , copper Litz wire for transformers

Product Description

2UEW-H-PI 0.1mmx1200 Taped Litz Wire For Transformer

This custom-designed round PI taped litz wire is specifically engineered for high-performance transformer windings, especially in applications requiring high voltage resistance and thermal stability.

Product Construction & Features

Consists of 1,200 individual strands of 0.1mm solderable enameled copper wire
Precisely twisted strands form a compact, high-frequency-friendly bundle
Tightly wrapped with high-quality Kapton (polyimide) tape
Exceptional dielectric strength with withstand voltage over 6,000V
Thermal rating of 180°C for demanding environments

Technical Specifications

Item	Tech Requirement	Sample 1
Single Wire Diameter (mm)	0.107-0.125	0.110-0.113
Conductor (mm)	0.10±0.003	0.098-0.10
O.D. (mm)	≤5.28	4.57-5.03
Resistance (Ω/m)	≤0.001984	0.0011833
Dielectric Strength (V)	≥6000	13100
Pitch (mm)	65±10	65
No. Of Strands	1200	48x5x5
Tape Overlap (%)	≥50	54
Winding	NO crack	ok

All specifications are subject to standard manufacturing tolerances. Contact us to discuss your specific winding requirements and for detailed technical data sheets and custom specifications.
