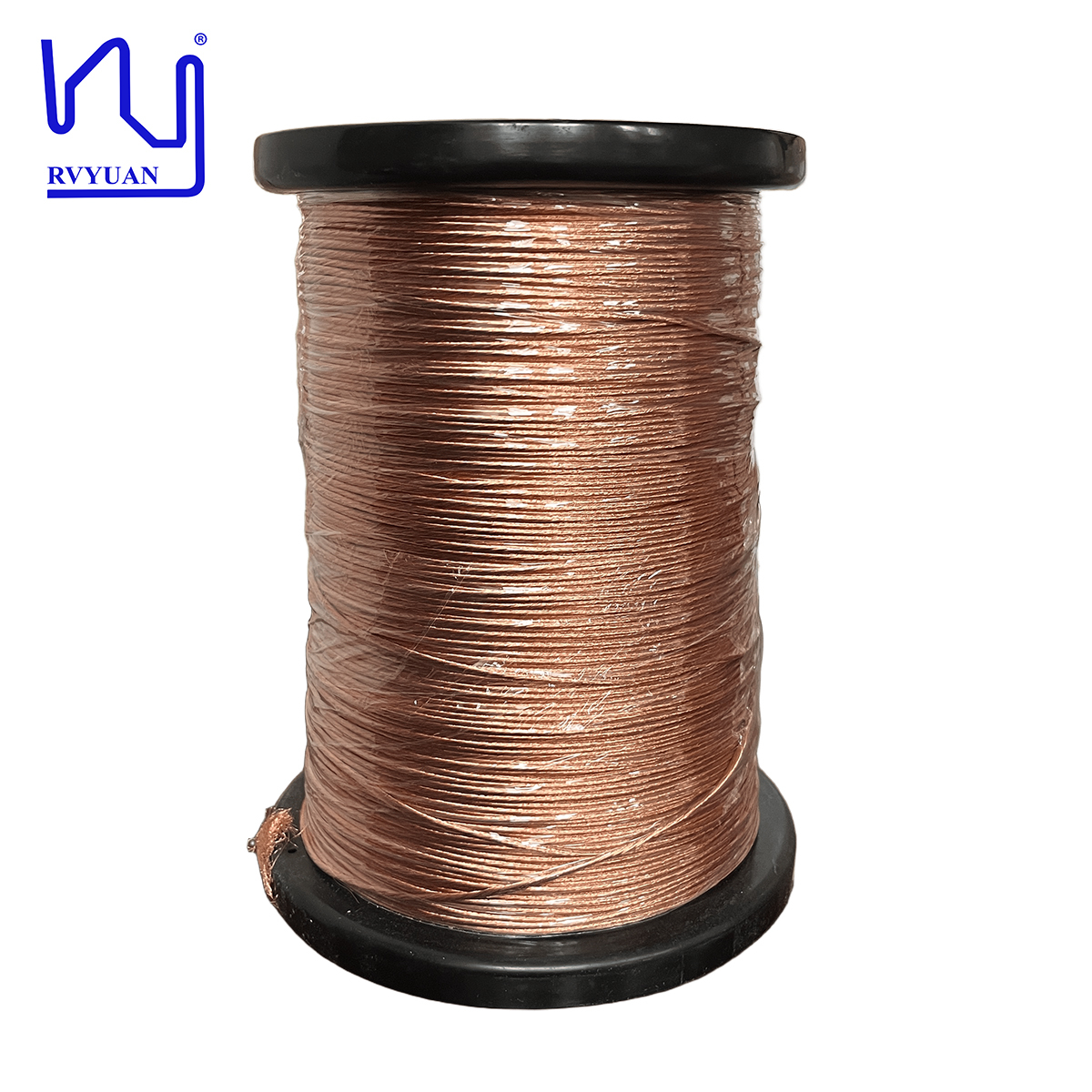

Multiple strands litz wires 0.1mm *180 enameled Copper Wires For Transformer

Basic Information

Place of Origin:	China
Brand Name:	RVYUAN
Certification:	ISO9001/ISO14001 /UL/SGS
Model Number:	USTC

Minimum Order Quantity:	20kg
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	15 workding days
Payment Terms:	T/T/ Paypal
Supply Ability:	Satisfy your demand

Get Best Price Contact Now

Detail Information

Diameter:	0.1mm	Temperature:	180
Certification:	IEC/NEMA/JIS/RoHS/ISO	Conductor:	Copper
Strands:	180	Breakdown Voltage:	Min.1100
Key Word:	Multiple Strands Litz Wires 0.1mm *180 Enameled Copper Wires For Transformer
Highlight:	0.1mm enameled copper litz wire , multiple strands litz wire for transformer , 180 strand enameled copper wire

Product Description

Multiple Strands Litz Wires 0.1mm × 180 Enameled Copper Wires for Transformer

Our multiple strands litz wires with 0.1mm × 180 enameled copper conductors are engineered for high-frequency transformer applications. Whether you're developing compact switch mode power supplies, high-frequency transformers, or induction heating coils, this litz wire provides the ideal balance of performance, processability, and cost effectiveness.

Technical Specifications

Item	Requirement	Test Result
Surface	No crack, smooth	OK
Conductor Diameter (mm)	0.1 ± 0.003	0.101
Outer Diameter of Single Wire	0.110-0.125mm	0.112
Number of Strands	180	180
Maximum Outer Diameter	1.94mm	1.74
Pitch	23.5mm ± 2mm	23.0
Resistance	≤ 13.62 Ω/km (20℃)	12.69
Breakdown Voltage	≥ 1.1kV	3.2

All specifications are subject to standard manufacturing tolerances. Contact us to discuss your specific winding requirements and for detailed technical data sheets and custom specifications.
