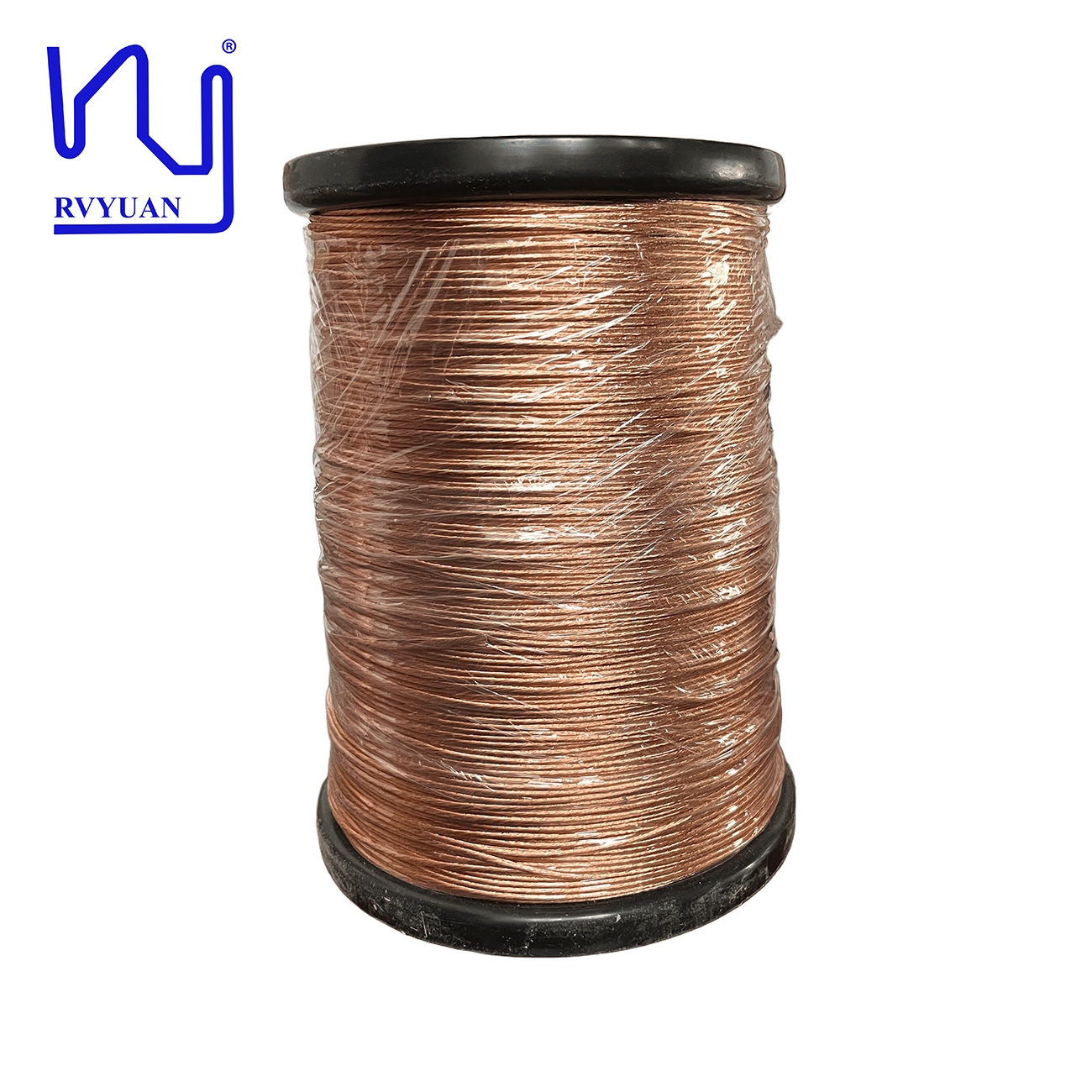

Stranded Litz Wires 0.1mm *180 Strands enameled Copper Wires For Transformer

Basic Information

Place of Origin:	China
Brand Name:	RVYUAN
Certification:	ISO9001/ISO14001 /UL/SGS
Model Number:	USTC

Minimum Order Quantity:	20kg
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	15 workding days
Payment Terms:	T/T/ Paypal
Supply Ability:	Satisfy your demand

Get Best Price Contact Now

Detail Information

Diameter:	0.1mm	Temperature:	180
Certification:	IEC/NEMA/JIS/RoHS/ISO	Conductor:	Copper
Strands:	180	Breakdown Voltage:	Min.1100
Key Word:	Stranded Litz Wires 0.1mm *180 Strands Enameled Copper Wires For Transformer
Highlight:	0.1mm stranded litz wire , 180 strands enameled copper wire , transformer litz wire with warranty

Product Description

Stranded Litz Wires 0.1mm × 180 Strands Enameled Copper Wires for Transformer

High-quality stranded litz wires featuring 180 strands of 0.1mm enameled copper wires, specifically designed for transformer applications requiring optimal performance and reliability.

Key Advantages

Solderable Design: No need to strip individual strands before soldering. The integrated coating enables quick, reliable soldering while reducing assembly time and preventing insulation damage.
Low MOQ for Custom Needs: We support small batch customization with a minimum order quantity of just 20 kg. Ideal for prototyping, small series production, or specialized transformer designs without requiring large inventories.

Technical Specifications

Item	Requirement	Test Result
Surface	No crack, smooth	OK
Conductor Diameter (mm)	0.1 ± 0.003	0.101
Outer Diameter of Single Wire	0.110-0.125mm	0.112
Number of Strands	180	180
Maximum Outer Diameter	1.94mm	1.74
Pitch	23.5mm ± 2mm	23.0
Resistance	≤ 13.62 Ω/km (20℃)	12.69
Breakdown Voltage	≥ 1.1kV	3.2

All specifications are subject to standard manufacturing tolerances. Contact us for detailed technical data sheets and custom requirements.
