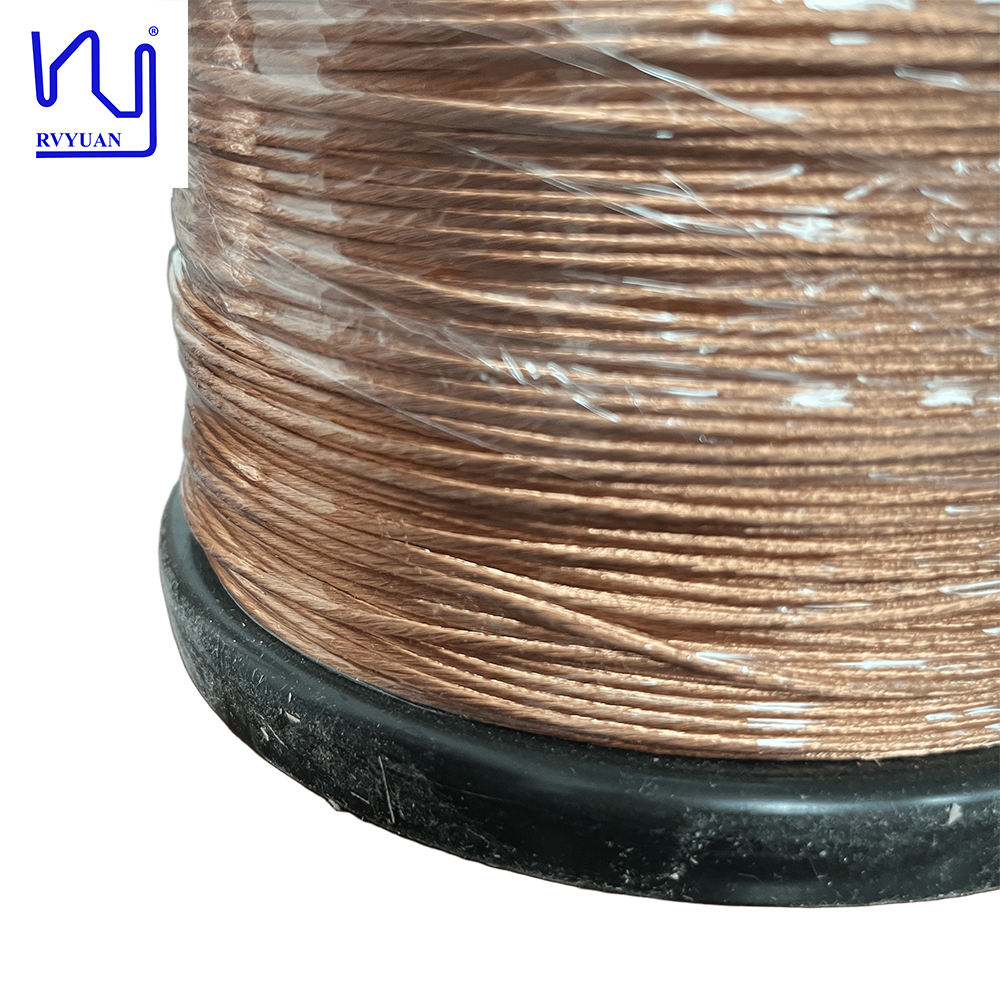

Litz Wire 0.1mm *180 Strands enameled Copper Litz Wires For Transformer

Basic Information

Place of Origin:	China
Brand Name:	RVYUAN
Certification:	ISO9001/ISO14001 /UL/SGS
Model Number:	USTC

Minimum Order Quantity:	20kg
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	15 workding days
Payment Terms:	T/T/ Paypal
Supply Ability:	Satisfy your demand

Get Best Price Contact Now

Detail Information

Diameter:	0.1mm	Temperature:	180
Certification:	IEC/NEMA/JIS/RoHS/ISO	Conductor:	Copper
Strands:	180	Breakdown Voltage:	Min.1100
Key Word:	Litz Wire 0.1mm *180 Strands Enameled Copper Litz Wires For Transformer
Highlight:	0.1mm enameled copper litz wire , 180 strands transformer litz wire , enameled litz wire for transformers

Product Description

Litz Wire 0.1mm × 180 Strands Enameled Copper Litz Wires For Transformer

Premium enameled copper litz wire specifically engineered for high-frequency transformer applications, featuring 180 individually insulated strands for optimal performance.

Key Advantages

Reduced AC Losses - Fine, individually insulated strands minimize skin and proximity effects at high frequencies, significantly lowering AC resistance compared to solid wire for cooler, more efficient transformers
Excellent Flexibility - Multi-strand construction provides exceptional pliability, facilitating winding in tight spaces and around complex core geometries without damaging insulation
High Thermal Reliability - 180°C thermal class maintains stable electrical and mechanical properties under prolonged heat exposure, ensuring long service life in power electronics

Technical Specifications

Item	Requirement	Test Result
Surface	No crack, smooth	OK
Conductor Diameter (mm)	0.1 ± 0.003	0.101
Outer Diameter of Single Wire	0.110-0.125mm	0.112
Number of Strands	180	180
Maximum Outer Diameter	1.94mm	1.74
Pitch	23.5mm ± 2mm	23.0
Resistance	≤ 13.62 Ω/km (20℃)	12.69
Breakdown Voltage	≥ 1.1kV	3.2

All specifications are subject to standard manufacturing tolerances. Contact us for detailed technical data sheets and custom requirements.
