| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | USTCF litz wire |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 7 days |
| Payment Terms: | TT/Paypal |
| Supply Ability: | 100kg/week |
| Breakdown Voltage: | Min. 2000V | Number Of Strands: | 84 |
|---|---|---|---|
| Jacket: | Real Silk | Theraml Grade: | 155 |
| Key Word: | UL Listed Insulated Copper Served Litz Wire For Wireless Charger | Conductor Material: | Copper |
| Product Name: | UL Listed Insulated Copper Served Litz Wire For Wireless Charger | Single Wire: | 0.2mm |
| Highlight: | Copper Served Litz Wire,Insulated Served Litz Wire,UL Listed Served Litz Wire |
||

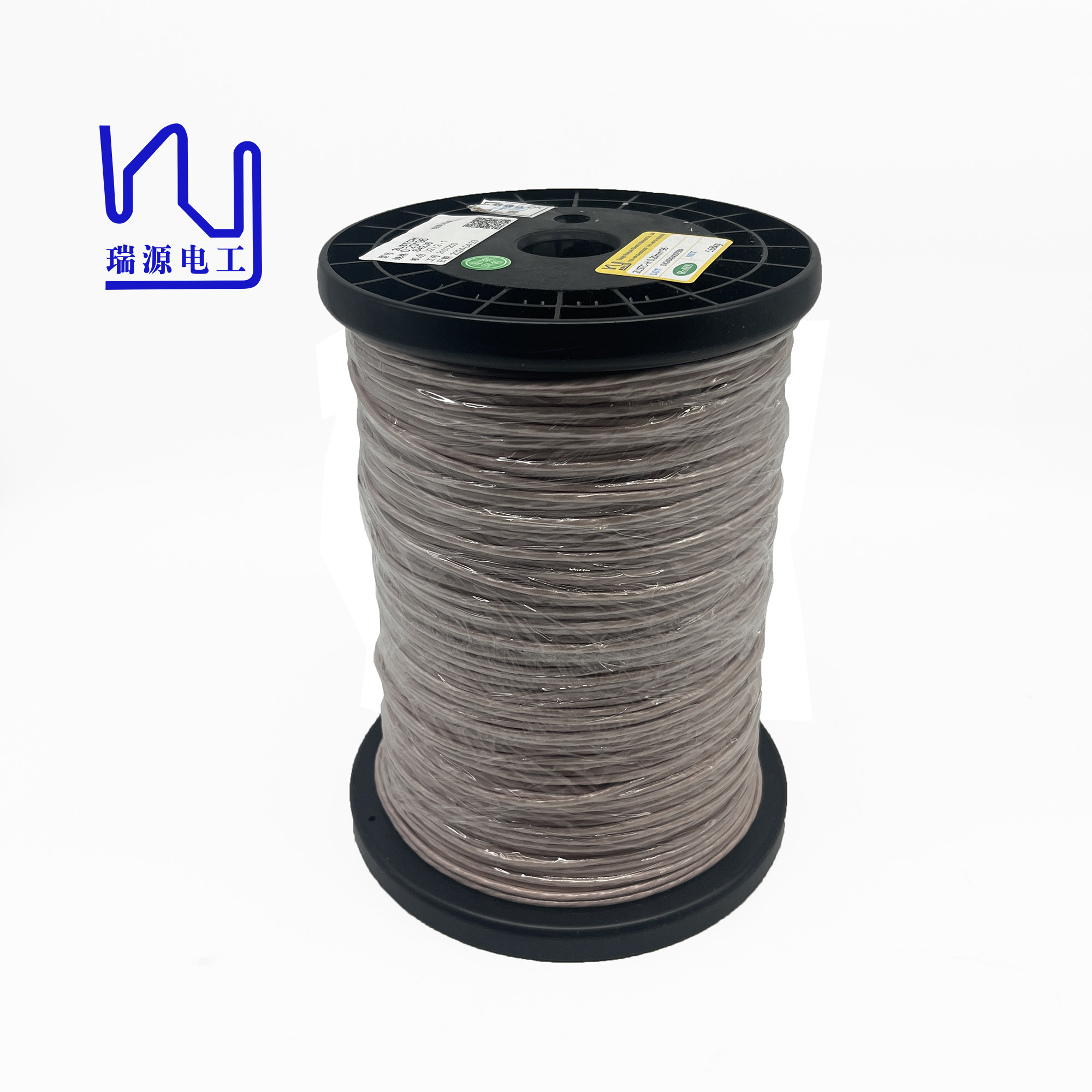

UL Listed Insulated Copper Served Litz Wire for Wireless Charger
The wire's design minimizes skin and proximity effects common in high-frequency applications, improving electrical performance. This reduces energy consumption and increases the overall efficiency of the transformer, making nylon served litz wire an important component in high-frequency power systems.
A professional technical team with more than 20 years of experience supporting nylon seved litz wire customization ensures customers receive expert guidance and customized solutions for their specific transformer applications.
| Item | Standard | Test value | ||
| Sample 1 | Sample 2 | Sample 3 | ||
| Single wire diameter mm | 0.224-0.246 | 0.225 | 0.227 | 0.228 |
| Conductor Diameter mm | 0.2±0.003 | 0.2 | 0.2 | 0.2 |
| O.D. mm | Max. 2.74 | 2.65 | 2.6 | 2.63 |
| Resistance (20℃) Ω/m | 6.87 | ok | ok | ok |
| Breakdown Voltage V | Min.2000 | 3900 | 3800 | 3700 |
| Pitch mm | 44±5% | 44 | 44 | 44 |
