| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | USTCF litz wire |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 7 days |
| Payment Terms: | TT/Paypal |
| Supply Ability: | 100kg/week |
| Breakdown Voltage: | 2700V | Jacket: | Dacron/Nylon/natural Silk |
|---|---|---|---|
| Number Of Strands: | 460 | Key Word: | 2700V Breakdown Voltage Silk Covered Litz Wire For Professional Copper Conductor Needs |
| Single Wire: | 0.1mm | Conductor Material: | Copper |
| Product Name: | 2700V Breakdown Voltage Silk Covered Litz Wire For Professional Copper Conductor Needs | Rated Temperature: | 155 |

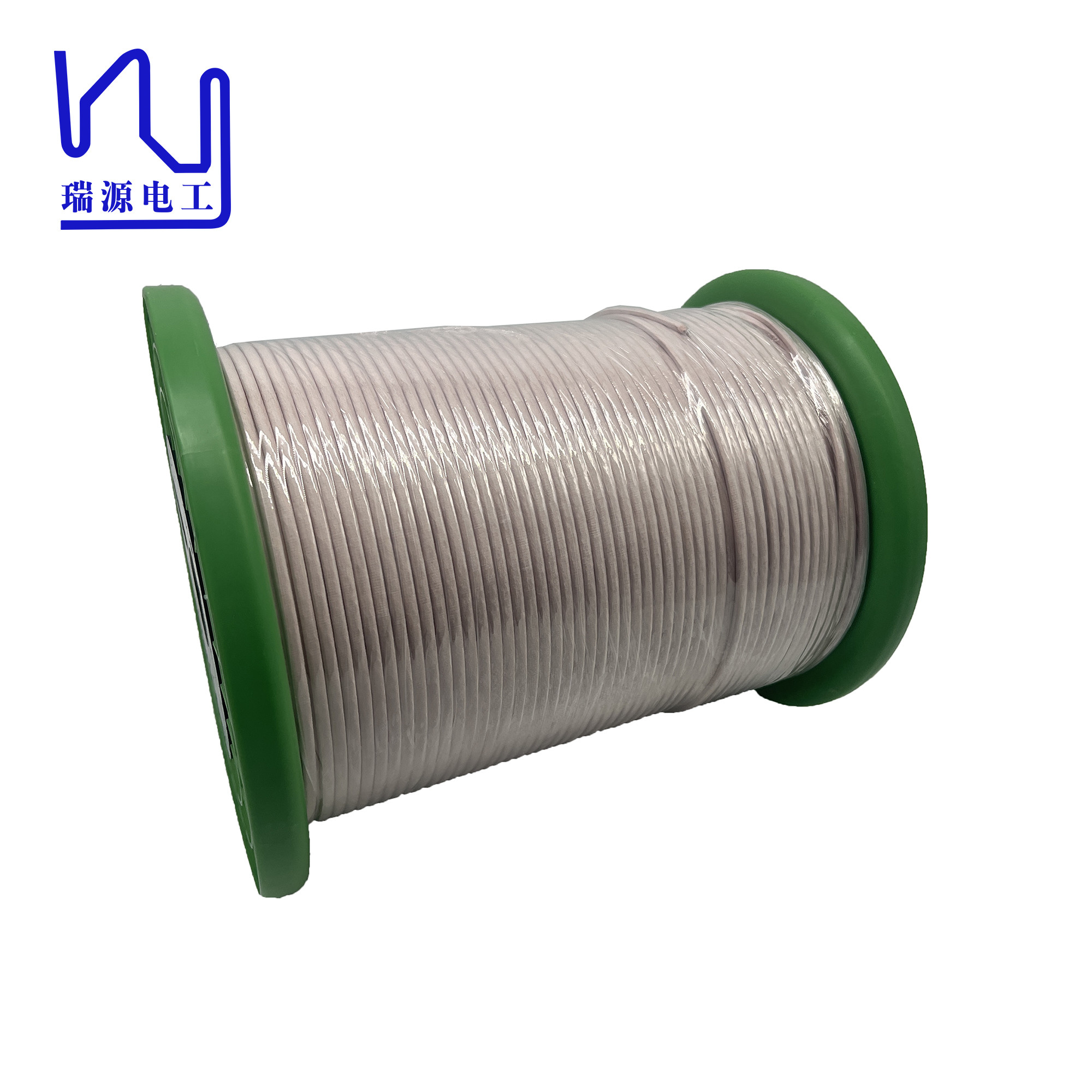

2700V Breakdown Voltage Silk Covered Litz Wire for Professional Copper Conductor Needs
Flat silk covered litz wire is a special type of wire with unique characteristics that can be used in various industrial fields.This kind of litz wire is designed to provide superior performance and reliability in demanding applications.
This wire is a customized product with a diameter of 0.1mm and consists of 460 strands, and the overall dimension is 4mm wide and 2mm thick, covered with nylon yarn for added protection and insulation.
|
Item |
Unit |
Technical requests |
Reality Value |
|
|
|||
|
Conductor Diameter |
mm |
0.1±0.003 |
0.098-0.10 |
|
Single wire diameter |
mm |
0.110-0.125 |
0.110-0.114 |
|
Width |
mm |
4 |
3.74-3.96 |
|
Thickness |
mm |
2 |
2.06-2.26 |
|
Resistance (20℃) |
Ω/m |
Max.0.005176 |
0.004795 |
|
Breakdown Voltage |
V |
Min.500 |
2700 |
|
No. of strands |
|
460 |
460 |
