| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.063mm |
| Minimum Order Quantity: | 2kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 100Ton/week |
| Product Name: | Winding Strat 0.063mm 43AWG Poly Coated Magnet Wire For Guitar Pickup Coils | Insulation: | Polyurethane |
|---|---|---|---|
| Size: | 0.063mm | Application: | Guitar Pickups Coils |
| Quantity: | 1.5kg/roll | Key Word: | Winding Strat 0.063mm 43AWG Poly Coated Magnet Wire For Guitar Pickup Coils |
| High Light: | 0.063mm Poly coated Magnet Wire,43AWG Poly coated Magnet Wire,Winding Strat Poly coated Magnet Wire |
||

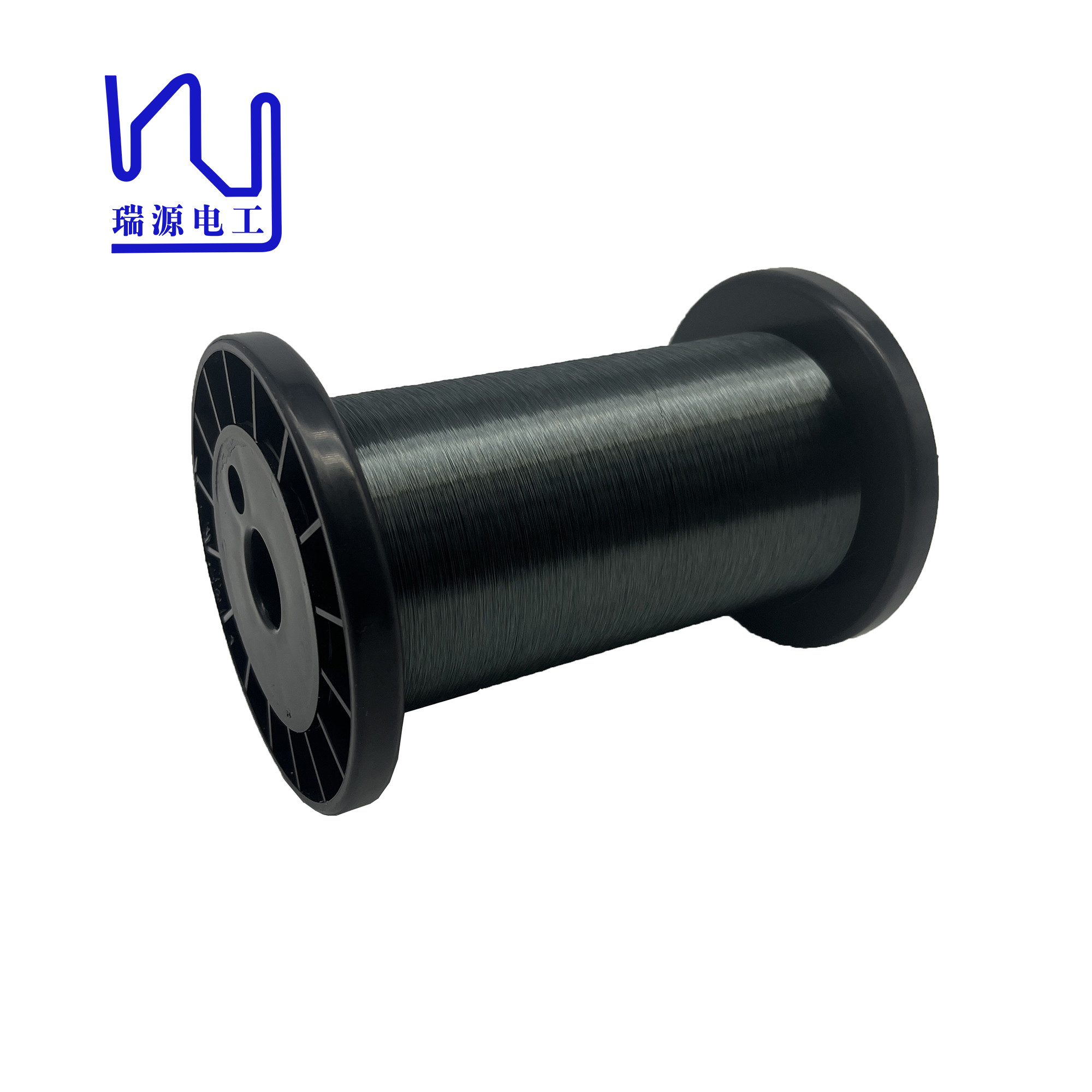

Winding Strat 0.063mm 43AWG Poly coated Magnet Wire for Guitar Pickup Coils
Guitar pickup cables play a vital role in producing high-quality sound from an electric guitar. It is responsible for capturing the vibrations of the guitar strings and converting them into electrical signals, which are then amplified and projected into music.
Choosing the right type of guitar pickup cable is crucial to achieving the best sound quality and performance from your electric guitar. Polyethylene-coated enameled copper wire is a popular choice because of its superior insulation, conductivity, and durability. With its ability to deliver a clear, vibrant tone, it has become the go-to choice for guitar pickup wraps.
|
Characteristics |
Technical requests |
Test Results |
|||
|
|
|
Sample 1 |
Sample 2 |
Sample 3 |
|
|
Bare Wire Diameter |
0.063± |
0.001 |
0.063 |
0.063 |
0.063 |
|
Coating Thickness |
≥ 0.008mm |
0.0095 |
0.0096 |
0.0096 |
|
|
Overall Diameter |
≤ 0.074mm |
0.0725 |
0.0726 |
0.0727 |
|
|
Conductor Resistance |
5.4-5.65 |
5.51 |
5.52 |
5.53 |
|
|
Elongation |
≥ 15% |
23 |
24 |
24 |
|
