| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.063mm |
| Minimum Order Quantity: | 2kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 100Ton/week |
| Product Name: | Premier AWG42 PUPlain Enamel Copper Wire For Pickups | Insulation: | Polyurethane |
|---|---|---|---|
| Size: | 0.063mm | Application: | Guitar Pickups Coils |
| Quantity: | 1.5kg/roll | Key Word: | Premier AWG42 PUPlain Enamel Copper Wire For Pickups |
| High Light: | AWG42 Enamel Copper Wire,PU Plain Enamel Copper Wire,Pickups Enamel Copper Wire |
||

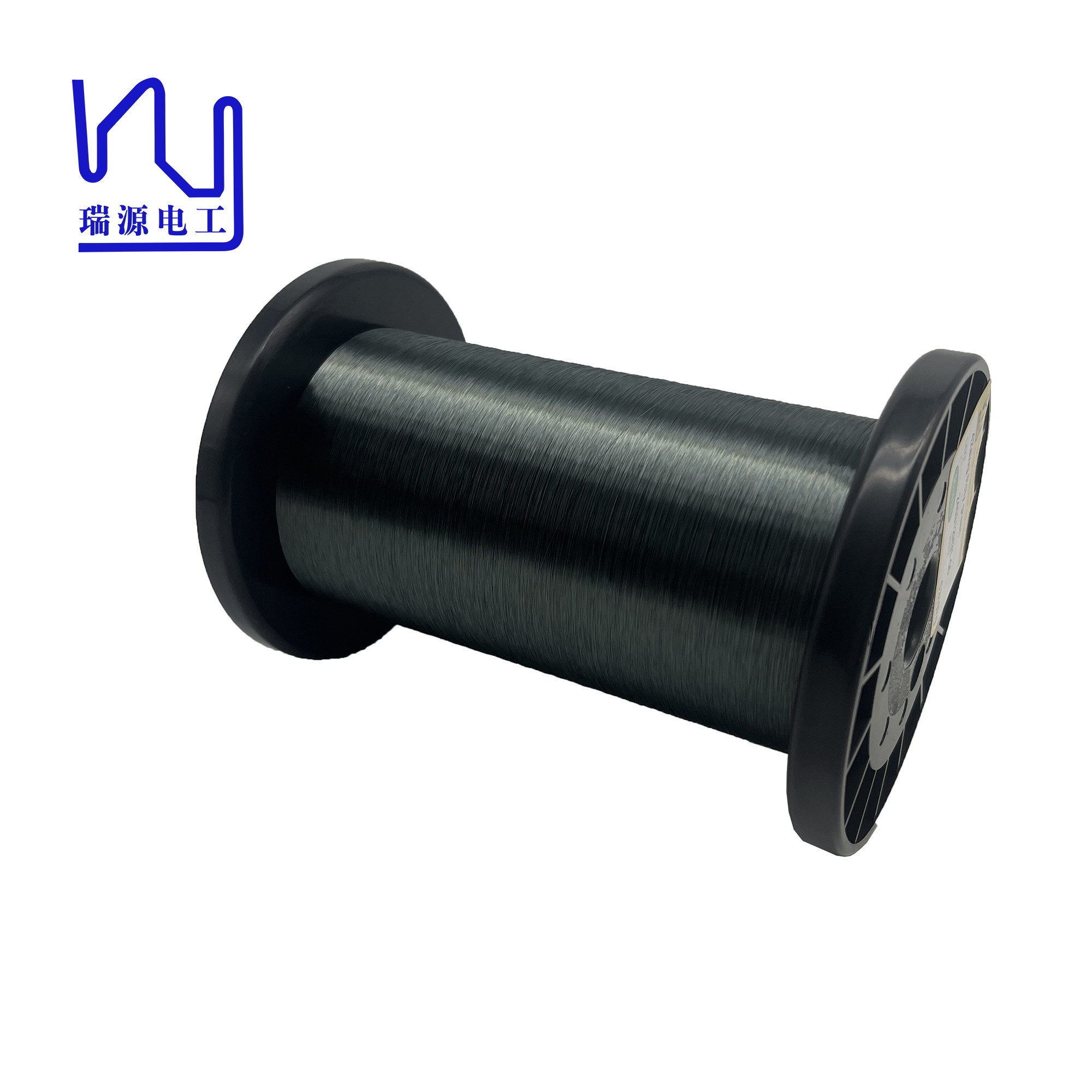

Premier AWG42 PUPlain Enamel Copper Wire for Pickups
An example of poly enamelled copper wire designed specifically for guitar pickup windings is 42 AWG wire. This particular wire is currently in stock and weighs approximately 0.5kg to 2kg per shaft. In addition, manufacturers offer the flexibility of low-volume customization, allowing the production of other colors and wire sizes of wire to meet specific requirements.
The minimum order quantity for this product is 10kg, suitable for individual guitar enthusiasts and commercial guitar manufacturers.
|
Characteristics |
Technical requests |
Test Results |
|||
|
|
|
Sample 1 |
Sample 2 |
Sample 3 |
|
|
Bare Wire Diameter |
0.063± |
0.001 |
0.063 |
0.063 |
0.063 |
|
Coating Thickness |
≥ 0.008mm |
0.0095 |
0.0096 |
0.0096 |
|
|
Overall Diameter |
≤ 0.074mm |
0.0725 |
0.0726 |
0.0727 |
|
|
Conductor Resistance |
5.4-5.65 |
5.51 |
5.52 |
5.53 |
|
|
Elongation |
≥ 15% |
23 |
24 |
24 |
|
