| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.063mm |
| Minimum Order Quantity: | 2kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 100Ton/week |
| Product Name: | 42AWG Color PU Enameled Copper Wire For Guitar | Insulation: | Polyurethane |
|---|---|---|---|
| Size: | 0.063mm | Application: | Guitar Pickups Coils |
| Quantity: | 1.5kg/roll | Key Word: | 42AWG Color PU Enameled Copper Wire For Guitar |
| High Light: | guitar Color copper wire,guitar enameled copper wire,PU enameled copper wire |
||

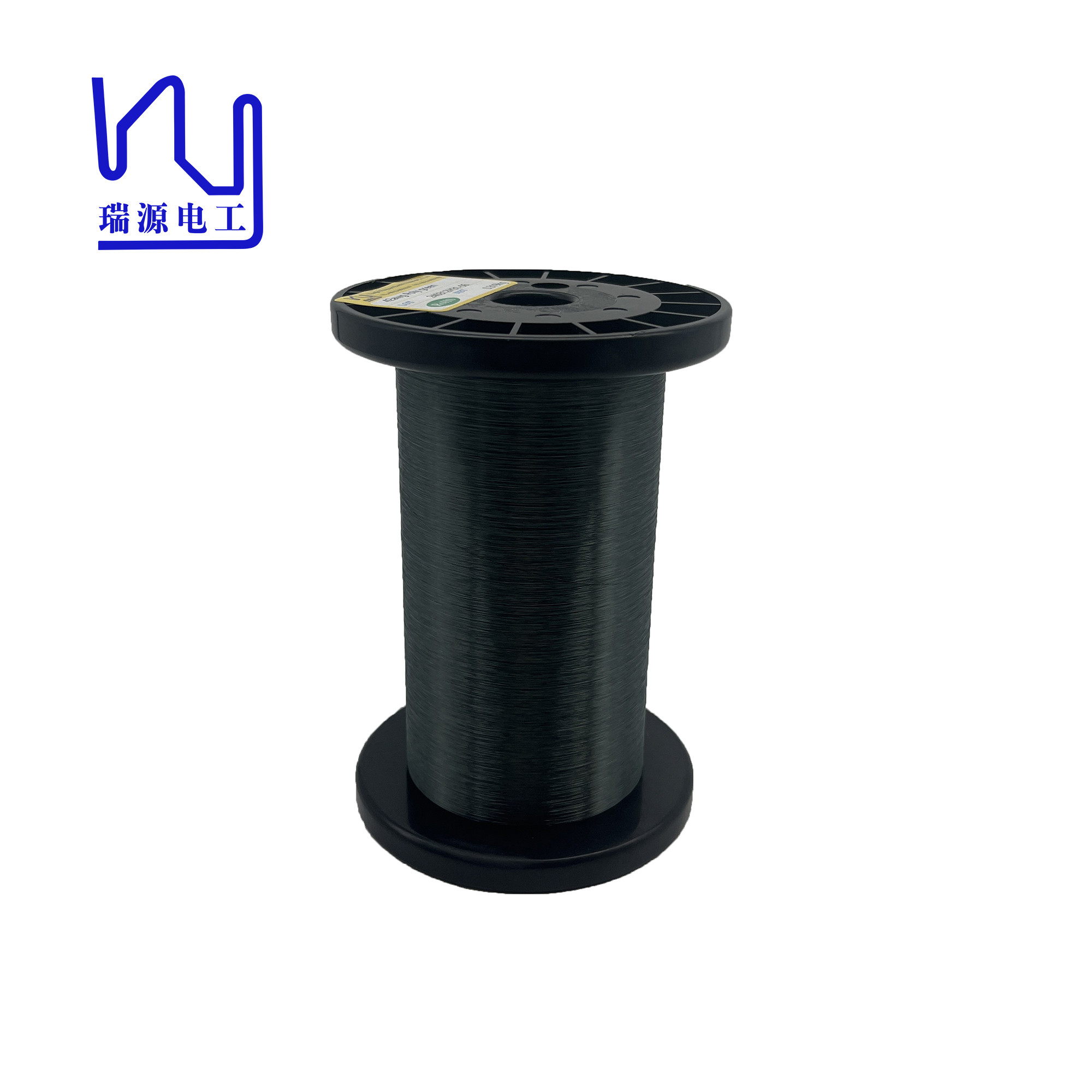

42AWG Color PU enameled copper wire for guitar
There are several advantages to using enameled copper wire in guitar pickups. First, its high conductivity and low resistance make it ideal for transmitting the electrical signals produced by the vibrations of guitar strings.
This results in a clear, crisp sound output that improves the overall sound quality of the instrument. Additionally, the polymer coating provides excellent thermal and mechanical protection, ensuring the cable remains intact and functional even under demanding playing conditions.
|
Characteristics |
Technical requests |
Test Results |
|||
|
|
|
Sample 1 |
Sample 2 |
Sample 3 |
|
|
Bare Wire Diameter |
0.063± |
0.001 |
0.063 |
0.063 |
0.063 |
|
Coating Thickness |
≥ 0.008mm |
0.0095 |
0.0096 |
0.0096 |
|
|
Overall Diameter |
≤ 0.074mm |
0.0725 |
0.0726 |
0.0727 |
|
|
Conductor Resistance |
5.4-5.65 |
5.51 |
5.52 |
5.53 |
|
|
Elongation |
≥ 15% |
23 |
24 |
24 |
|
