| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 44 AWG |
| Minimum Order Quantity: | 1 roll |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 100kg per week |
| Product Name: | Customized Plain Enamel 44AWG 0.050mm Winding Coil Copper Guitar Pickup Wire | Conductor Material: | Copper |
|---|---|---|---|
| Insulation: | Plain Enamel | Diameter: | 44awg |
| Package: | Round 1.5kg Per Reel | Application: | Guitar Pickup Coils |
| Key Word: | Customized Plain Enamel 44AWG 0.050mm Winding Coil Copper Guitar Pickup Wire | ||
| High Light: | customized guitar pickup coil wire,0.05 mm guitar pickup coil wire,guitar pickup 0.05 mm copper wire |
||

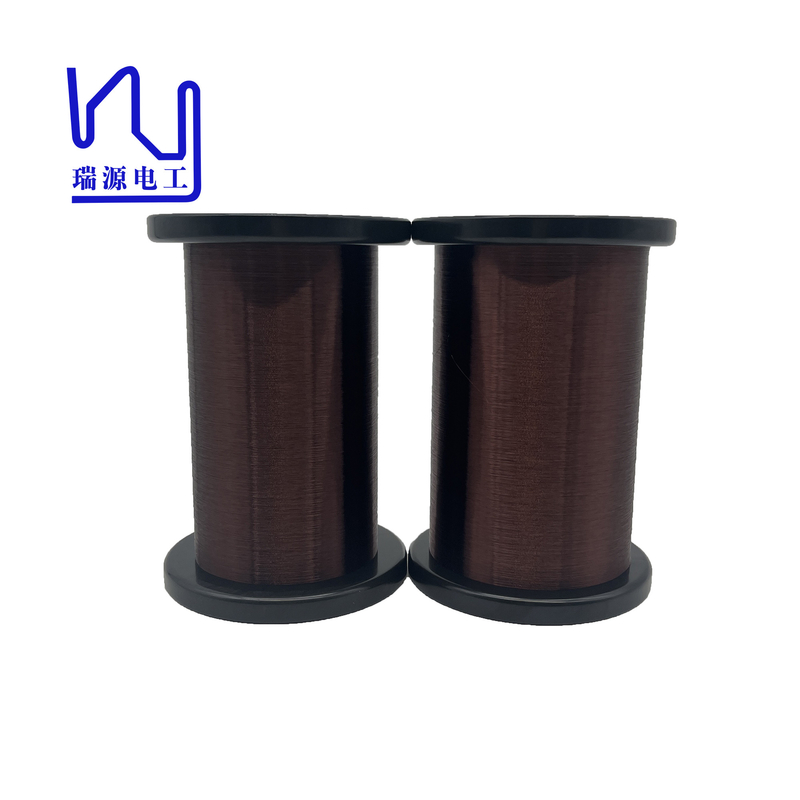

Customized Plain Enamel 44AWG 0.050mm Winding Coil Copper Guitar Pickup Wire
Plain Enamel wires are manufactured to single-build dimensional standards.
|
Customized Plain Enamel 44AWG 0.050mm Winding Coil Copper Guitar Pickup Wire |
|||||||||||
|
1.5kg/roll, 0.5kg/roll
|
|||||||||||
|
Characteristics |
Technical requests |
Test Results |
|||||||||
|
|
Sample 1 |
Sample 2 |
Sample 3 |
||||||||
|
Surface |
Good |
OK |
OK |
OK |
|||||||
|
Bare Wire Diameter |
0.050± |
0.001 |
0.050 |
0.050 |
0.050 |
||||||
|
Overall Diamter |
Max. 0.061 |
0.0595 |
0.0596 |
0.0596 |
|||||||
|
Conductor Resistance(20℃) |
8.55-9.08 Ω/m |
8.74 |
8.74 |
8.75 |
|||||||
|
Breakdown voltage |
Min. 1500 V |
Min. 2539 |
|||||||||
