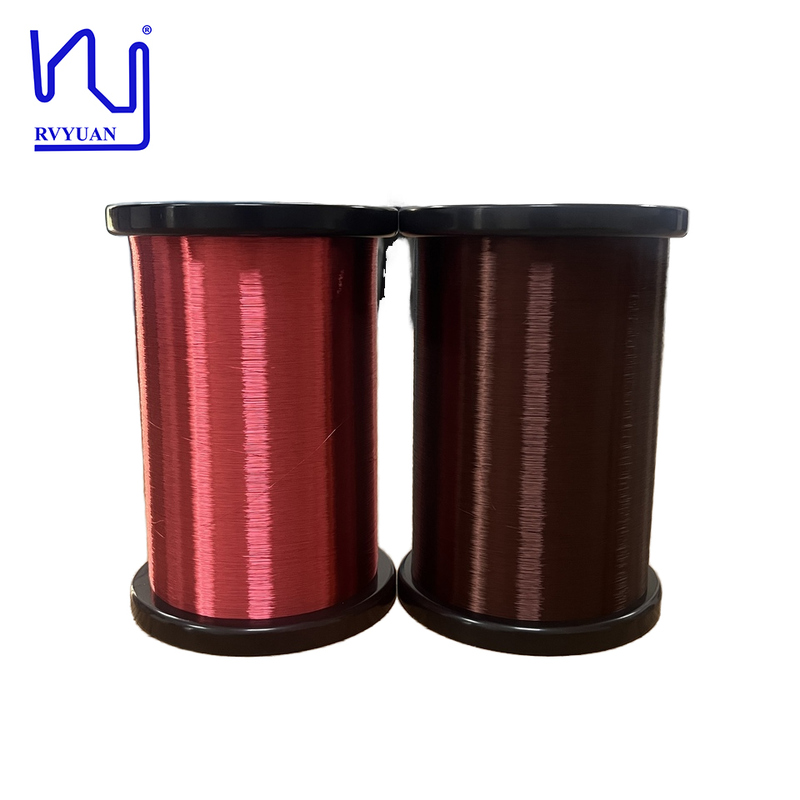

42AWG Red Color Poly Coated Magnet Wire, Polyurethane Copper Wire for Guitar

Basic Information
Place of Origin: China
Brand Name: RVYUAN
Certification: UL/ISO9001/ISO14001/RoHS/Reach
Model Number: 42 AWG
Minimum Order Quantity: 2kg
Price: Negotiation
Packaging Details: Carton
Delivery Time: 3 days
Payment Terms: T/T/Paypal
Supply Ability: 1Ton/Month
Detail Information
Product Name: 42AWG Red Color Poly Coated Magnet Wire, Polyurethane Copper Wire For Guitar Insulation: Red Poly
Size: AWG42 Application: Guitar Pickups Coils
MOQ: 2KG(1 Roll)
Highlight:

42AWG red magnet wire

,

polyurethane coated guitar wire

,

copper pickup wire for guitar


Product Description

42AWG Red Color Poly Coated Magnet Wire, Polyurethane Copper Wire for Guitar
42 AWG 0.063mm Plain / Heavy Formvar Enameled Copper Wire For Guitar Pickup Coils

We supply some of the world's guitar pickup craftsmen with wire custom made to order. Our Pickup Wire started with an Italian customer several years ago, after a year of R&D, and half-year blind and device test in Italy, Canada, Australia. Since launched into markets, Ruiyuan Pickup Wire won a good reputation and has been chosen by over 300 pickups clients from Europe, America, Asia, etc.

Popular insulation options
  • Plain
  • Poly
  • Heavy formvar

Customized colors and size: only 20kg you can choose your exclusive color.

Guitar pickup specialists

We mainly manufacture Plain, heavy Formvar insulation and poly insulation wire, for the simple reason that they just sound best to our ears.

  • Plain wire
  • Heavy formvar wire
  • Poly-coated wire

The thickness of the wire is usually measured in AWG, which stands for American Wire Gauge. In guitar pickups, 42 AWG is the one that's most commonly used. But wire-types measuring from 41 to 46 AWG are all being used in the construction of guitar pickups.

The most professional guitar pickup wire manufacturer, we offer formvar/plain enameled copper wire. 42awg, 43awg, 44awg. The wire is mainly used in winding guitar pickups, and is a favorite among many custom pickup shops.

42awg Heavy formvar wire
Characteristics Technical requests Test results
Conductor diameter 0.063mm±0.002 0.063mm | 0.063mm | 0.063mm
Overall dimension ≤0.074mm 0.071mm | 0.072mm | 0.073mm
Conductor resistance ≤ 5.900 Ω/m 5.478 | 5.512 | 5.482
Breakdown voltage ≥ 400 V 1768 | 1672 | 1723
42AWG Red Color Poly Coated Magnet Wire, Polyurethane Copper Wire for Guitar 0
