| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 44 AWG |
| Minimum Order Quantity: | 1 roll |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 100kg per week |
| Product Name: | 44 AWG 0.05mm Magnet Wire, Plain Enamel Copper Wire For Guitar Pickups | Conductor Material: | Copper |
|---|---|---|---|
| Insulation: | Plain Enamel | Diameter: | 44awg |
| Package: | Round 1.5kg Per Reel | Application: | Guitar Pickup Coils |
| Key Word: | 44 AWG 0.05mm Magnet Wire, Plain Enamel Copper Wire For Guitar Pickups | ||
| High Light: | guitar pickups enamelled copper wire,44 awg enamelled copper wire,guitar pickup 0.05 mm wire |
||

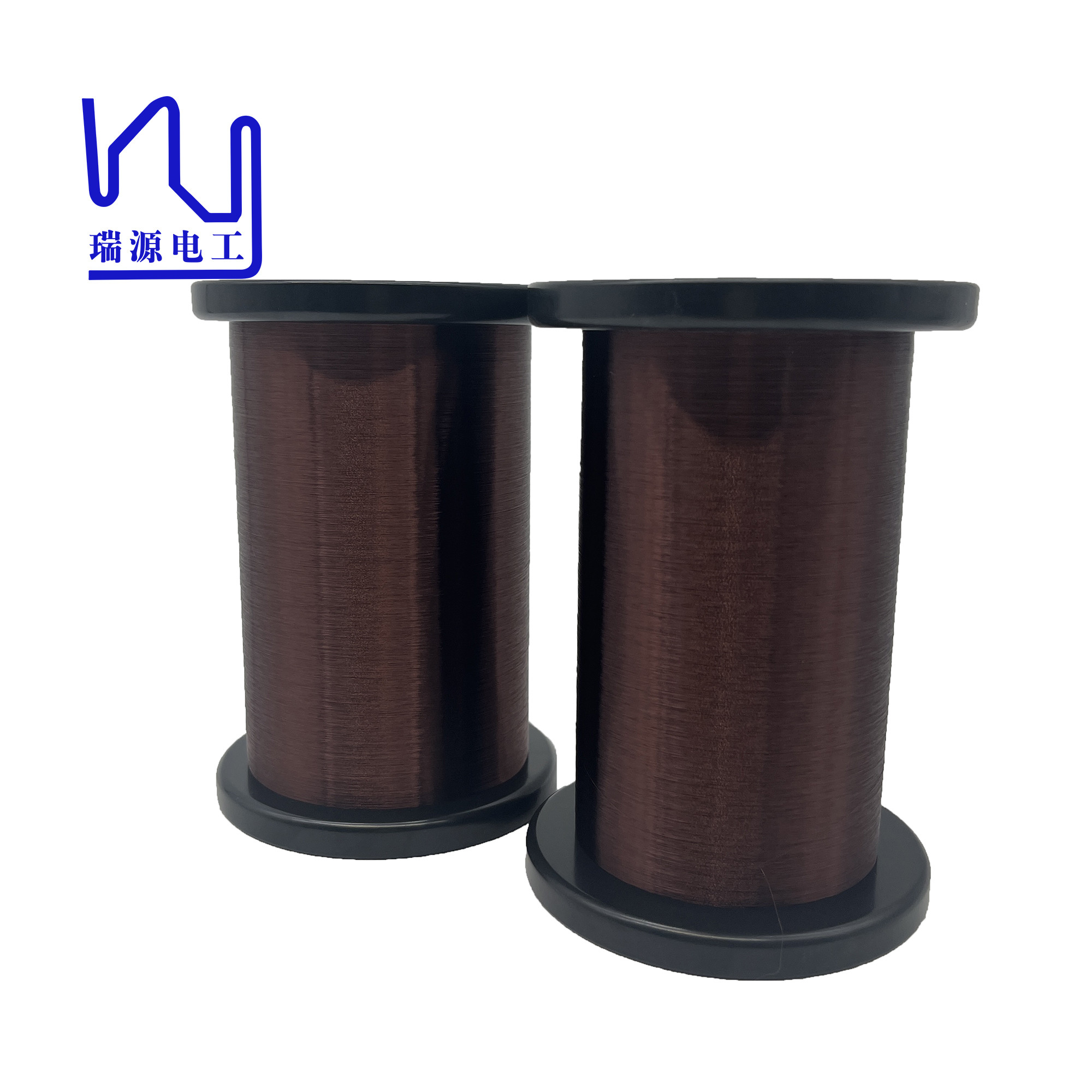

44 AWG 0.05mm magnet wire, Plain Enamel copper Wire For Guitar Pickups
We produce with professional workmanship and technology to ensure the high quality and stability of 44 AWG Plain Guitar Pickup Winding. In conclusion, if you are making guitar pickups and need high quality wire, Ruiyuan 44 AWG Plain Guitar Pickup Winding Wire is definitely your best choice!
|
44 AWG 0.05mm magnet wire, Plain Enamel copper Wire For Guitar Pickups |
|||||||||||
|
1.5kg/roll, 0.5kg/roll
|
|||||||||||
|
Characteristics |
Technical requests |
Test Results |
|||||||||
|
|
Sample 1 |
Sample 2 |
Sample 3 |
||||||||
|
Surface |
Good |
OK |
OK |
OK |
|||||||
|
Bare Wire Diameter |
0.050± |
0.001 |
0.050 |
0.050 |
0.050 |
||||||
|
Overall Diamter |
Max. 0.061 |
0.0595 |
0.0596 |
0.0596 |
|||||||
|
Conductor Resistance(20℃) |
8.55-9.08 Ω/m |
8.74 |
8.74 |
8.75 |
|||||||
|
Breakdown voltage |
Min. 1500 V |
Min. 2539 |
|||||||||
