| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 44 AWG |
| Minimum Order Quantity: | 1 roll |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 100kg per week |
| Product Name: | 44 AWG 0.05mm Dark Brown Old Style Plain Guitar Pickup Wire | Conductor Material: | Copper |
|---|---|---|---|
| Insulation: | Plain Enamel | Diameter: | 44awg |
| Package: | Round 1.5kg Per Reel | Application: | Guitar Pickup Coils |
| Key Word: | 44 AWG 0.05mm Dark Brown Old Style Plain Guitar Pickup Wire | ||
| High Light: | enamelled copper 44 awg magnet wire,guitar pickup 44 awg magnet wire,guitar pickup 44 awg copper wire |
||

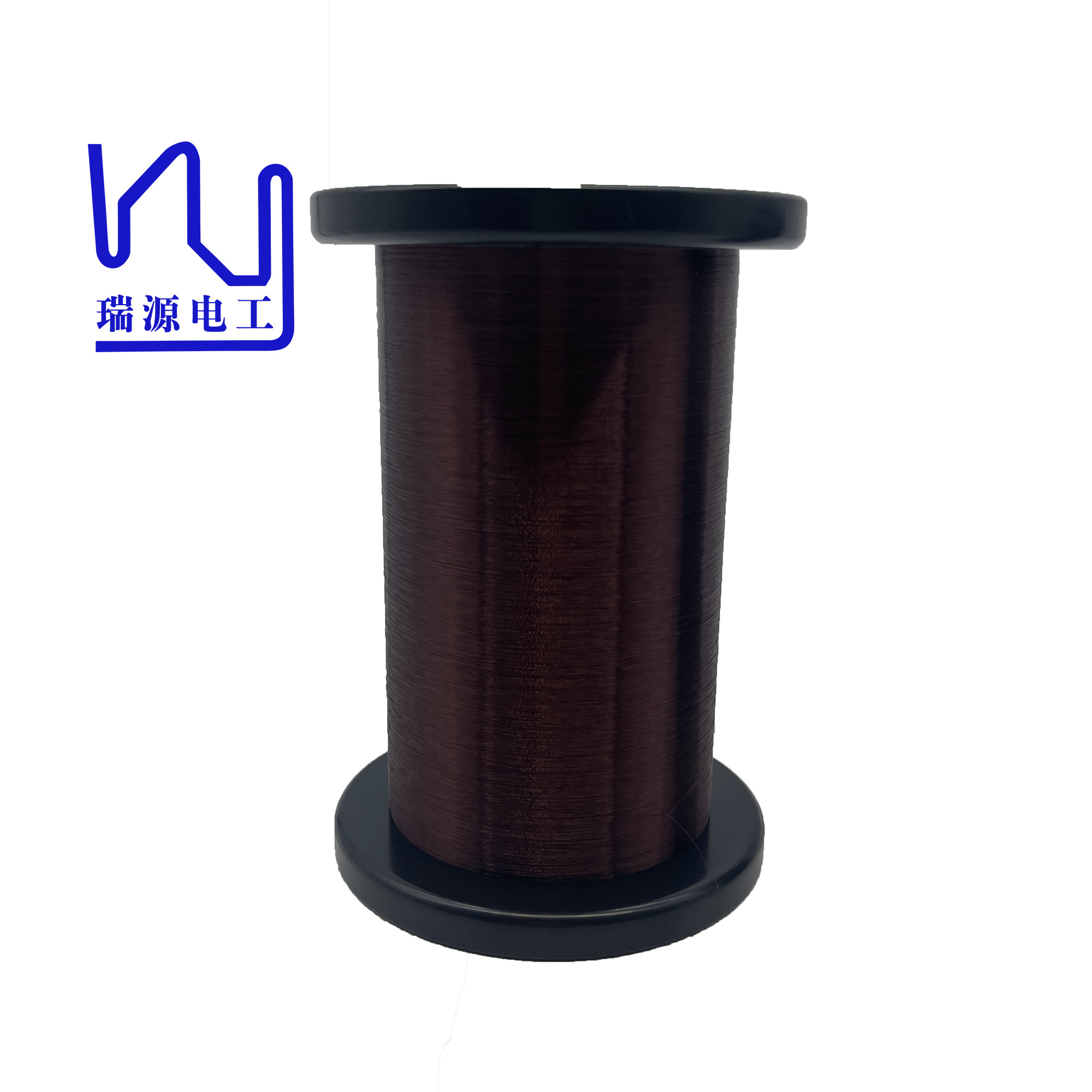

44 AWG 0.05mm Dark Brown Old Style Plain Guitar Pickup Wire
44 AWG Plain Guitar Pickup Wire is ideal for vintage style guitar pickup builds. Not only can this wire be used for winding pickups, but it can also be used to complement a beautifully shaped guitar bridge. The smooth surface of this wire prevents excessive friction and rotation when passing the pickup and nearby components, ensuring a stable sound quality without losing brightness and clarity.
| 44 AWG 0.05mm Dark Brown Old Style Plain Guitar Pickup Wire | |||||||||||
1.5kg/roll, 0.5kg/roll
|
|||||||||||
|
Characteristics |
Technical requests | Test Results | |||||||||
| Sample 1 | Sample 2 | Sample 3 | |||||||||
| Surface | Good | OK | OK | OK | |||||||
| Bare Wire Diameter | 0.050± | 0.001 | 0.050 | 0.050 | 0.050 | ||||||
| Overall Diamter | Max. 0.061 | 0.0595 | 0.0596 | 0.0596 | |||||||
| Conductor Resistance(20℃) | 8.55-9.08 Ω/m | 8.74 | 8.74 | 8.75 | |||||||
| Breakdown voltage | Min. 1500 V | Min. 2539 | |||||||||
