| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Model Number: | Copper litz wire |
| Minimum Order Quantity: | 20kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Certification: | ISO9001/ISO14001/UL/SGS | Name: | USTC 155 0.50x0.1mm Silk Motor Winding Wire High Frequency Wire Copper Litz Wire |
|---|---|---|---|
| Diameter: | 0.2mm | Standard: | GB/T5013.3/IEC60245-3:1994 |
| Conductor: | Copper | Insulation: | Enamel |
| Rated Temperature: | 155/180 | Key Word: | USTC 155 0.50x0.1mm Silk Motor Winding Wire High Frequency Wire Copper Litz Wire |
| No. Of Strands: | 31 | ||
| High Light: | uew 155 ustc litz wire,super thin ustc litz wire,enameled copper stranded ustc wire |
||

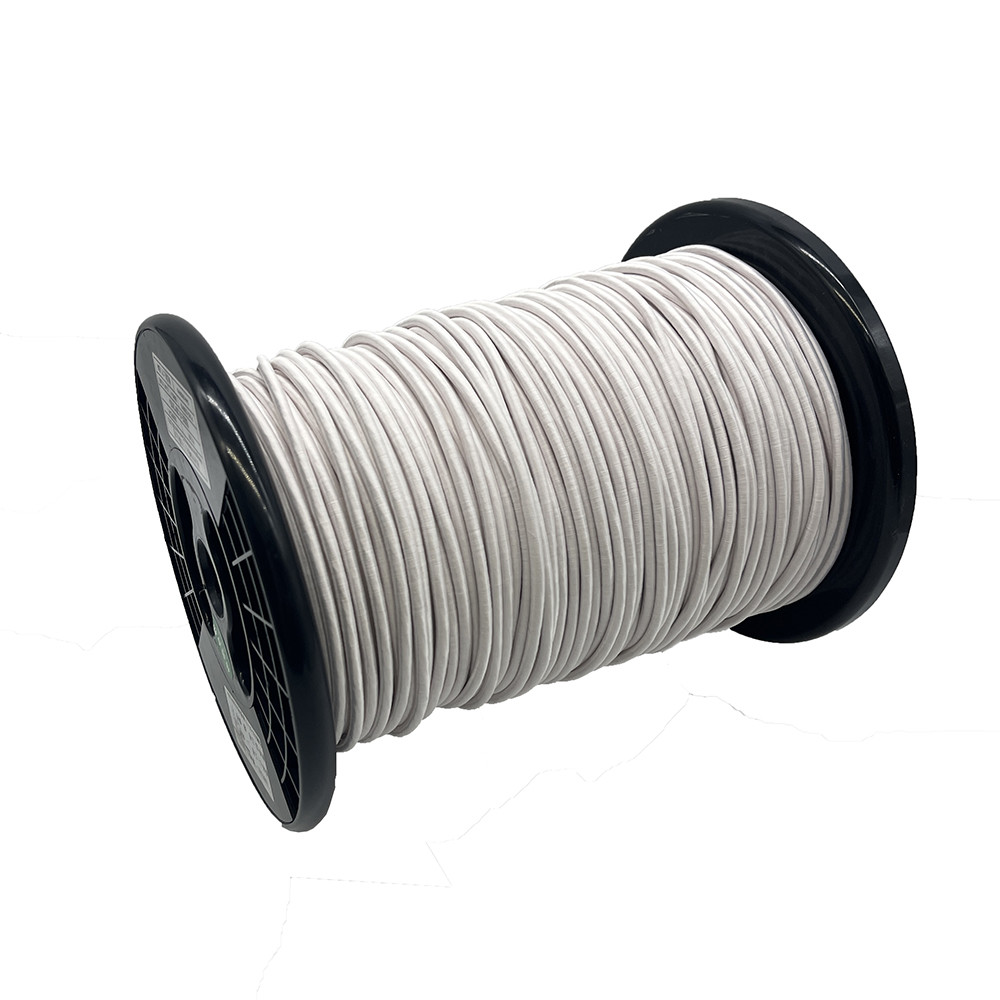

USTC litz wire UEW 155 UEW Super thin enameled copper stranded wire
What is USTC wire? It is insulation wire covered with one layer or multi layer insulating fiber (nylon, polyester fiber, natural silk and adhesive silk) on the surface of single enameled wire or stranded wire.USTC wire is a special type of wire used in electronics. The wire is designed to reduce the skin effect and proximity effect losses in conductors. It consists of many thin wires, individually coated with an insulating film and twisted or woven together, following a carefully prescribed pattern often involving several levels (groups of twisted wires are twisted together, etc.The size range we can make is 0.03-0.8mm, and strands number is 2-4000.
| Serving Material | Nylon | Dacron | Natural Silk |
| Recommended Operation temperature | 120℃ | 120℃ | 110℃ |
| Elongation at Break | 25-46% | 25-46% | 13-25% |
| Moisture absorption | 2.5-4 | 0.8-1.5 | 9 |
| Color | White/Red | White/Red | White |
| Self bonding layer Option | Yes | Yes | Yes |
|
Name:USTC litz wire UEW 155 UEW Super thin enameled copper stranded wire |
|
Key word:USTC litz wire UEW 155 UEW Super thin enameled copper stranded wire |
|
Insulation: nylon /dacron |
|
Thermal rating: 155/180 |
|
Diameter of the enameled copper wire |
|
Number of strands:31 |
|
Type |
