| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Model Number: | Copper litz wire |
| Minimum Order Quantity: | 20kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Certification: | ISO9001/ISO14001/UL/SGS | Name: | USTC 155 0.50x0.1mm Silk Motor Winding Wire High Frequency Wire Copper Litz Wire |
|---|---|---|---|
| Diameter: | 0.2mm | Standard: | GB/T5013.3/IEC60245-3:1994 |
| Conductor: | Copper | Insulation: | Enamel |
| Rated Temperature: | 155/180 | Key Word: | USTC 155 0.50x0.1mm Silk Motor Winding Wire High Frequency Wire Copper Litz Wire |
| No. Of Strands: | 31 | ||
| High Light: | ustc 155 hf litz wire,0.50mm hf litz wire,motor winding ustc wire |
||

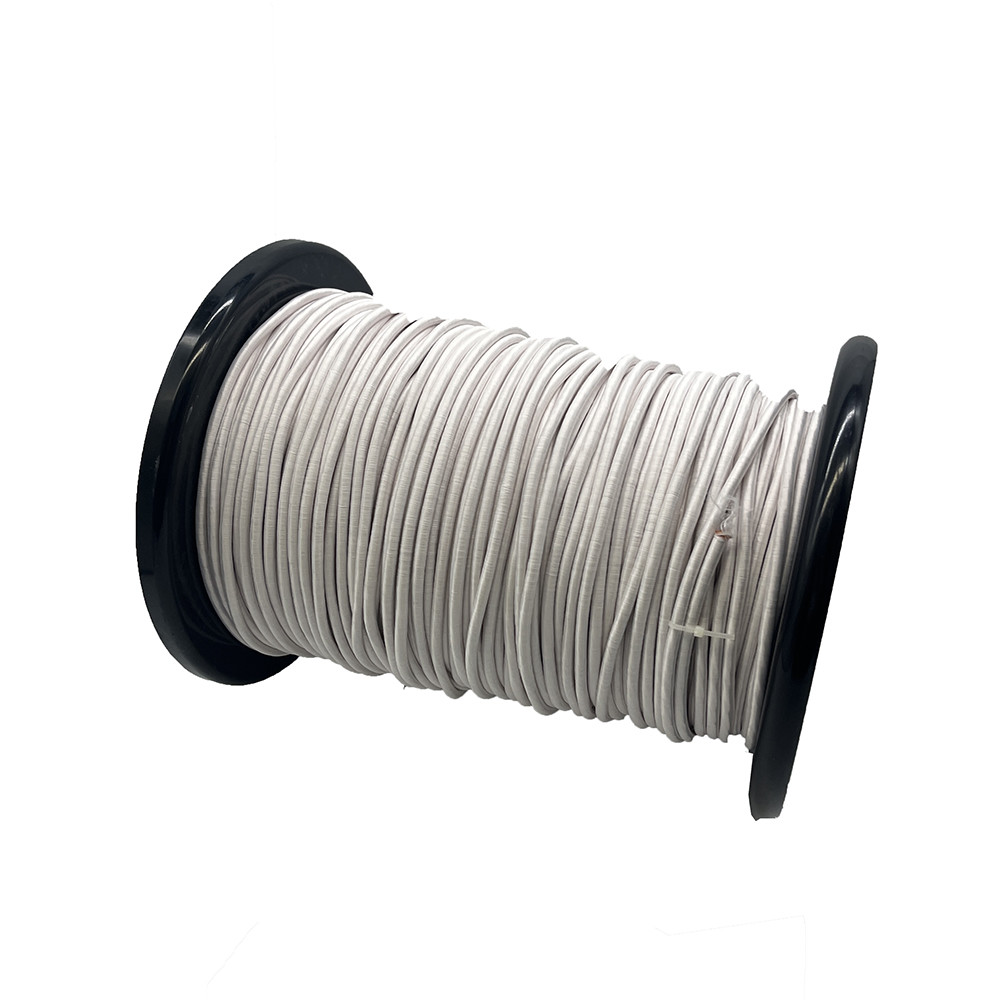

USTC 155 0.50x0.1mm Silk motor winding wire High Frequency wire Copper Litz Wire
1.Good performance of high frequency, that provide high power make super charge possible
2.Optimization of winding capacity. Silk covered litz wire makes the surface is more smooth,that optimize the winding capacity
3.Good solderability above temperatures of 410 ℃, Recommended soldering temperature is 420℃ with 7 seconds, that also depends on the thickness of insulation.
4.Low MOQ: Only 20kg for each size
5.Fast delivery: 7-10days for sample and bulk orders
| Serving Material | Nylon | Dacron | Natural Silk |
| Recommended Operation temperature | 120℃ | 120℃ | 110℃ |
| Elongation at Break | 25-46% | 25-46% | 13-25% |
| Moisture absorption | 2.5-4 | 0.8-1.5 | 9 |
| Color | White/Red | White/Red | White |
| Self bonding layer Option | Yes | Yes | Yes |
|
Name:USTC 155 0.50x0.1mm Silk motor winding wire High Frequency wire Copper Litz Wire |
|
Key word:USTC 155 0.50x0.1mm Silk motor winding wire High Frequency wire Copper Litz Wire |
|
Insulation: nylon /dacron |
|
Thermal rating: 155/180 |
|
Diameter of the enameled copper wire |
|
Number of strands:31 |
|
Type |
