| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 41.5 AWG |
| Minimum Order Quantity: | 2kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 100Ton/week |
| Product Name: | 0.065mm Blackish-purple Color Plain Guitar Pickup Winding Wire | Insulation: | Plain/heavy Formvar |
|---|---|---|---|
| Size: | 41.5awg | Application: | Guitar Pickups Coils |
| Quantity: | 1.5kg/roll | Key Word: | 0.065mm Blackish-purple Color Plain Guitar Pickup Winding Wire |
| High Light: | 0.065mm guitar pickup wire,41.5 awg guitar pickup wire,guitar pickup copper winding wire |
||

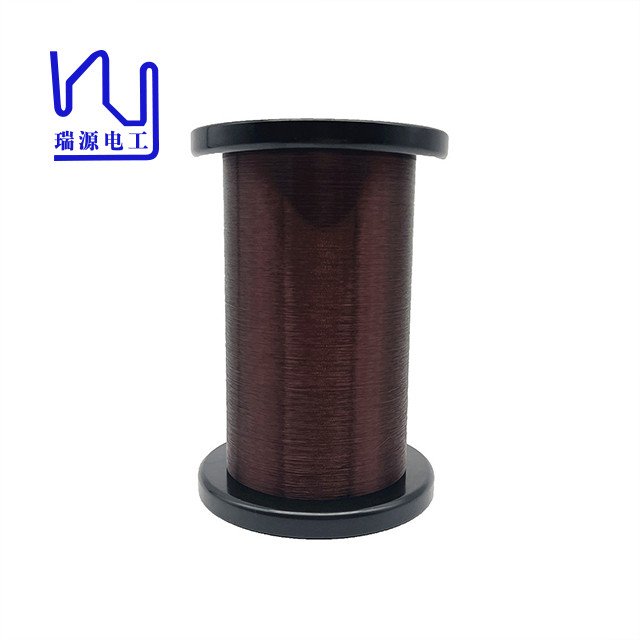

0.065mm blackish-purple color Plain guitar pickup winding wire
We holds the distinction of supplying specifalty wire to some of the world's most respected pickup makers.
Voicing a pickup isn’t just a matter of selecting the right wire, insulation, and number of turns — how you lay the wire is at least as important. Among other things, this determines the pickup’s distributed capacitance, which refers to the air space formed between the layers as the coil is wound.
This property affects the resonant frequency of the coil and dictates the high-frequency roll-off point, so it’s one of the factors that allows for fine-tuning a pickup’s high-end response.
| Test Item | Standard Value | Test Result |
| Conductor Diameter | 0.065±0.001mm | 0.065mm |
| Thickness of insulation | Min. 0.008 | 0.0093mm |
| Overall diameter | Max. 0.075mm | 0.0743mm |
| Breakdown voltage | Min. 1,000V | Min. 1,685V |
| D.C Electrical resistance(20℃) | 5.10-5.30 Ω/m | 5.16 Ω/m |
| Product | 0.065mm blackish-purple color Plain guitar pickup winding wire |
| Conductor diameter | 0.065mm±0.002 |
| Key word | 0.065mm blackish-purple color Plain guitar pickup winding wire |
| Coating | Plain |
