| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 41.5 AWG |
| Minimum Order Quantity: | 2kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 100Ton/week |
| Product Name: | 41.5 AWG Dark Brown Plain Enamel Copper Wire For Guitar Pickup | Insulation: | Plain/heavy Formvar |
|---|---|---|---|
| Size: | 41.5awg | Application: | Guitar Pickups Coils |
| Quantity: | 1.5kg/roll | Key Word: | 41.5 AWG Dark Brown Plain Enamel Copper Wire For Guitar Pickup |
| High Light: | dark brown enamel copper wire,guitar pickup enamel copper wire,awg 41.5 plain enamel wire |
||

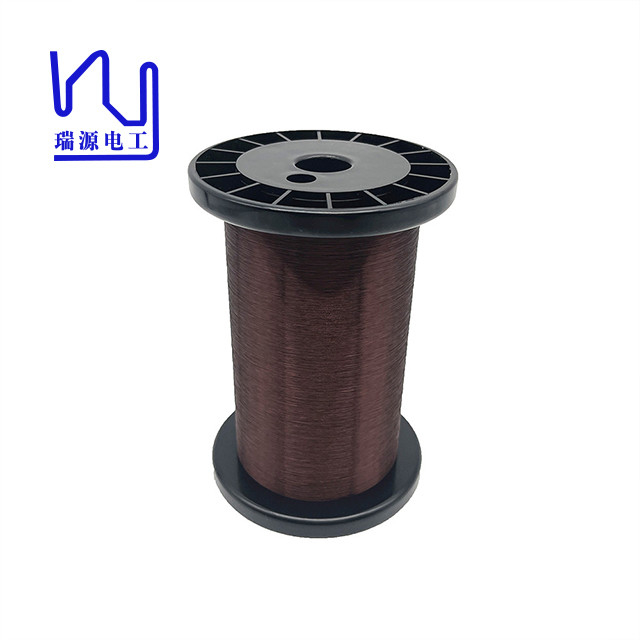

41.5 AWG Dark brown Plain Enamel Copper Wire For Guitar Pickup
Period-accurate wire is used in all vintage-style pickups. One popular vintage-style insulation is Formvar, which was used on old Strats and on some Jazz Bass pickups. But what the insulation vintage buffs know best is plain enamel, with its blackish-purple coating. Plain enamel wire was common in the ’50s and into the ’60s before the new insulations had been invented.
| Test Item | Standard Value | Test Result |
| Conductor Diameter | 0.065±0.001mm | 0.065mm |
| Thickness of insulation | Min. 0.008 | 0.0093mm |
| Overall diameter | Max. 0.075mm | 0.0743mm |
| Breakdown voltage | Min. 1,000V | Min. 1,685V |
| D.C Electrical resistance(20℃) | 5.10-5.30 Ω/m | 5.16 Ω/m |
| Product | 41.5 AWG Dark brown Plain Enamel Copper Wire For Guitar Pickup |
| Conductor diameter | 0.065mm±0.002 |
| Key word | 41.5 AWG Dark brown Plain Enamel Copper Wire For Guitar Pickup |
| Coating | Plain |
