Vintage Style Bondable Guitar Pickup Wire 42 Awg Magnet Plain Enameled Copper

Basic Information
Place of Origin: China
Brand Name: Ruiyuan
Certification: UL/ISO9001/ISO14001/RoHS/Reach
Model Number: 0.063mm
Minimum Order Quantity: 2kg
Price: Negotiation
Packaging Details: Carton
Delivery Time: 2-15 days
Payment Terms: Negotiation
Supply Ability: 100Ton/week
Detail Information
Product Name: 42 AWG Magnet Wire, Plain Enameled Copper Wire For Vintage Style Guitar Pickup Insulation: Plain/heavy Formvar
Size: 0.063mm Application: Guitar Pickups Coils
Quantity: 1.5kg/roll Key Word: 42 AWG Magnet Wire, Plain Enameled Copper Wire For Vintage Style Guitar Pickup
High Light:

bondable guitar pickup wire

,

enamelled copper guitar pickup wire

,

guitar pickup bondable magnet wire


Product Description

42 AWG magnet wire, plain enameled copper wire for vintage style guitar pickup



Variations in materials can have a huge impact on a pickup’s sound. The gauge of the wire, its insulation type and thickness and the purity and flexibility of the copper all influence the tone in subtle yet important ways. For example, two pickups can have an identical number of turns and identical magnets. But by using a different gauge of wire, one can have a little fatter sound while the other is smoother on the top end.

AWG 42  Plain guitar pickup wire

Characteristics

Technical requests

Test Results





Sample 1

Sample 2

Sample 3

Bare Wire Diameter

0.063±0.002

0.063

0.063

0.063

Conductor Resistance

≤ 5.900 Ω/m

5.478

5.512

5.482

Breakdown voltage

≥ 400 V

1768

1672

1723



Product

42 AWG magnet wire, plain enameled copper wire for vintage style guitar pickup

Conductor diameter

0.063mm±0.002

Key word

42 AWG magnet wire, plain enameled copper wire for vintage style guitar pickup

Coating

Plain

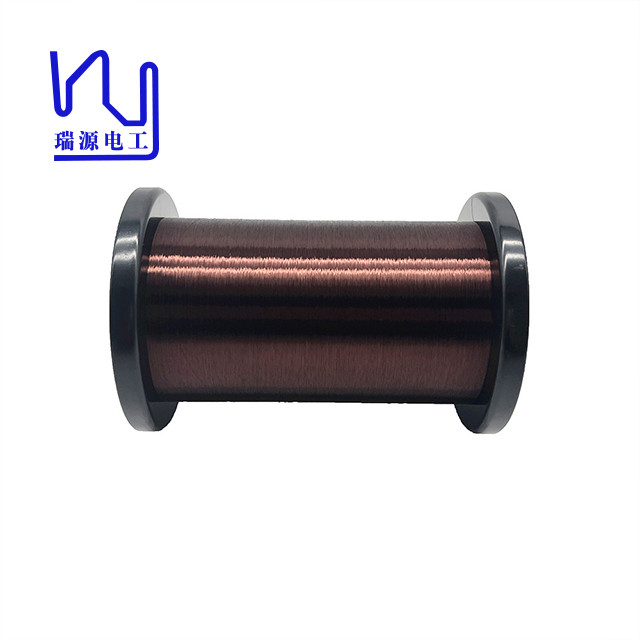

Vintage Style Bondable Guitar Pickup Wire 42 Awg Magnet Plain Enameled Copper 0

Vintage Style Bondable Guitar Pickup Wire 42 Awg Magnet Plain Enameled Copper 1

Vintage Style Bondable Guitar Pickup Wire 42 Awg Magnet Plain Enameled Copper 2
