Detail Information

Product Name:	Class 180 46AWG Hot Wind Self Adhesive Magnet Wire For Voice Coils	Insulation:	UEW
Size:	0.04mm	Application:	Voice Coils
Key Word:	Class 180 46AWG Hot Wind Self Adhesive Magnet Wire For Voice Coils	Thermal Rating:	155/180/200
Highlight:	uew high voltage magnet wire , 46 awg high voltage magnet wire , uew enameled copper wire

Product Description

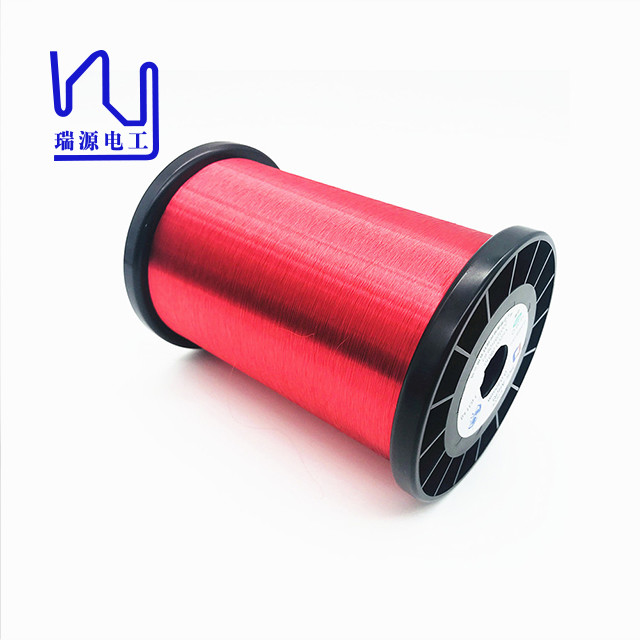

Class 180 46AWG Hot wind Self adhesive magnet wire for voice coils

Voice coil production requiring high-speed, seismic and tensile resistant winding puts forward new requirements for conductors of self-adhesive magnet wire. The tensile strength of copper conductor with suitable alloy can be increased by about 20 ~ 30% compared with that of ordinary copper conductor, especially for fine self-adhesive wire.

Product	Class 180 46AWG Hot wind Self adhesive magnet wire for voice coils
Conductor diameter	0.04mm
Key word	Class 180 46AWG Hot wind Self adhesive magnet wire for voice coils
Coating	UEW

Test Item	Unit	Standard Value	Reality Value
Conductor dimensions	mm	0.040±0.001	0.040	0.040	0.040
(Basecoat dimensions) Overall dimensions	mm	Max. 0.053	0.0524	0.0524	0.0524
Insulation Film Thickness	mm	Min0.002	0.003	0.003	0.003
Bonding Film Thickness	mm	Min0.002	0.003	0.003	0.003
(50V/30m) Continuity of covering	pcs.	Max.60	Max.0
Adherence		No crack	Good
Breakdown Voltage	V	Min.475	Min.1302
Resistance to Softening (Cut Through)	℃	Continue 2 times pass	200℃/Good
(390℃±5℃) Solder test	s	Max 2	Max 1.5
Bonding Strength	g	Min.5	11
(20℃) Electrical Resistance	Ω/m	21.22-22.08	21.67	21.67	21.67
Elongation	%	Min.4	8	8	8
Surface appearance		Smooth coloury	Good

Place of Origin:	China
Brand Name:	Ruiyuan
Certification:	UL/ISO9001/ISO14001/RoHS/Reach
Model Number:	0.04mm

Minimum Order Quantity:	2kg
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	2-15 days
Payment Terms:	Negotiation
Supply Ability:	100Ton/week
