| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.056mm |
| Minimum Order Quantity: | 2kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 100Ton/week |
| Product Name: | 43AWG Heavy Formvar Guitar Pickup Wire | Insulation: | Plain/heavy Formvar |
|---|---|---|---|
| Size: | 0.056mm | Application: | Guitar Pickups Coils |
| Quantity: | 1.5kg/roll | Key Word: | 43AWG Heavy Formvar Guitar Pickup Wire |
| High Light: | formvar copper wire for guitar pickups,0.056mm copper wire for guitar pickups,43 awg guitar pickup coil wire |
||

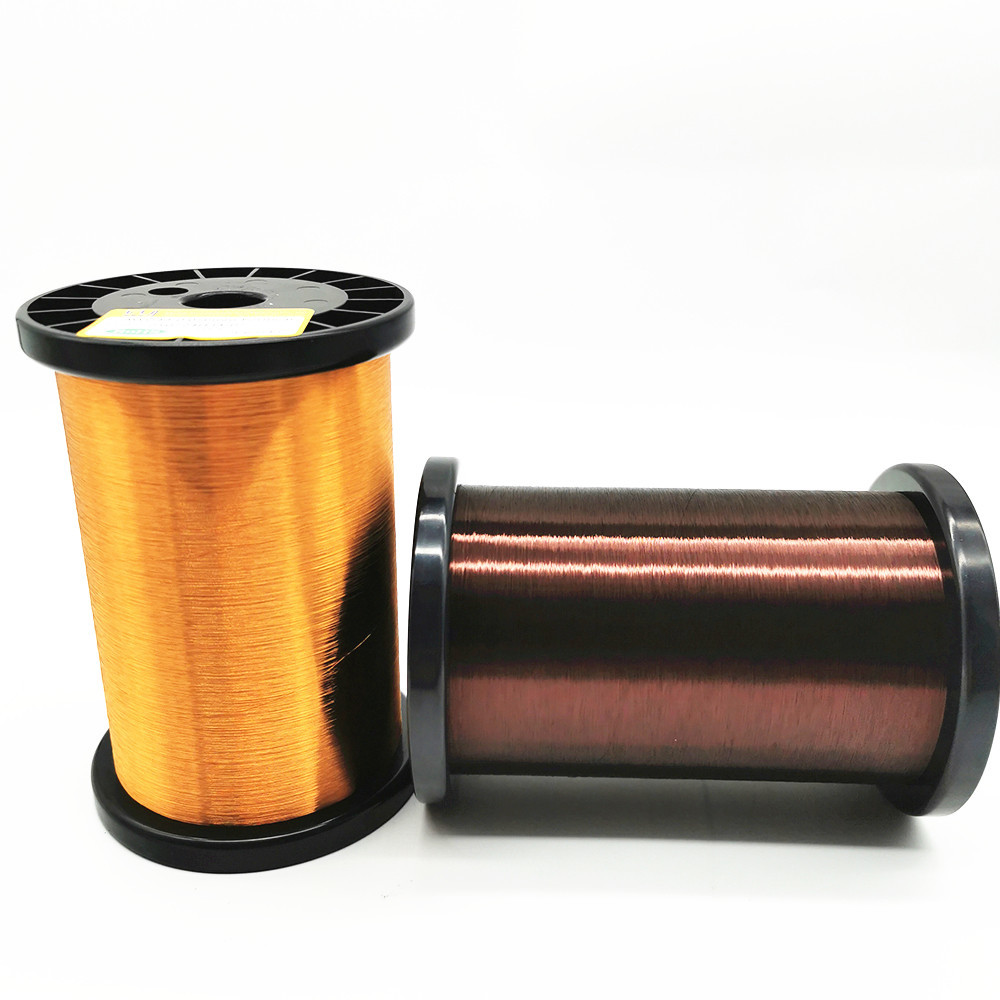

43AWG heavy formvar guitar pickup wire
The Right Stuff
From the early 1950’s through mid-1960’s, Formvar was used by the era’s foremost guitar manufacturers in a majority of their “single coil” style pickups.The natural color of Formvar insulation is amber.Those who use Formvar in their pickups today say that it produces similar tonal quality to those vintage pickups of the 1950’s and 1960’
|
43 plain (0.056mm) enameled copper wire |
||||
|
Characteristics |
Technical requests |
Test Results |
||
|
|
Sample 1 |
Sample 2 |
Sample 3 |
|
|
Surface |
Good |
OK |
OK |
OK |
|
Bare Wire Diameter |
0.056±0.001 |
0.056 |
0.0056 |
0.056 |
|
Conductor Resistance |
6.86-7.14 Ω/m |
6.98 |
6.98 |
6.99 |
|
Breakdown voltage |
≥ 1000V |
1325 |
||
|
Product |
43AWG heavy formvar guitar pickup wire |
|
Conductor diameter |
0.063mm±0.002 |
|
Key word |
43AWG heavy formvar guitar pickup wire |
|
Coating |
Heavy formvar |
