| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.05mm |
| Minimum Order Quantity: | 2kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 100Ton/week |
| Product Name: | 44 AWG Polyurthane Guitar Pickup Wire | Insulation: | Polyurethane |
|---|---|---|---|
| Size: | 0.05mm | Application: | Guitar Pickups Coils |
| Quantity: | 1.5kg/roll | Key Word: | 44 AWG Polyurthane Guitar Pickup Wire |
| High Light: | 44 awg enamel coil wire,guitar pickup enamel coil wire,Polyurethane guitar pickup coil wire |
||

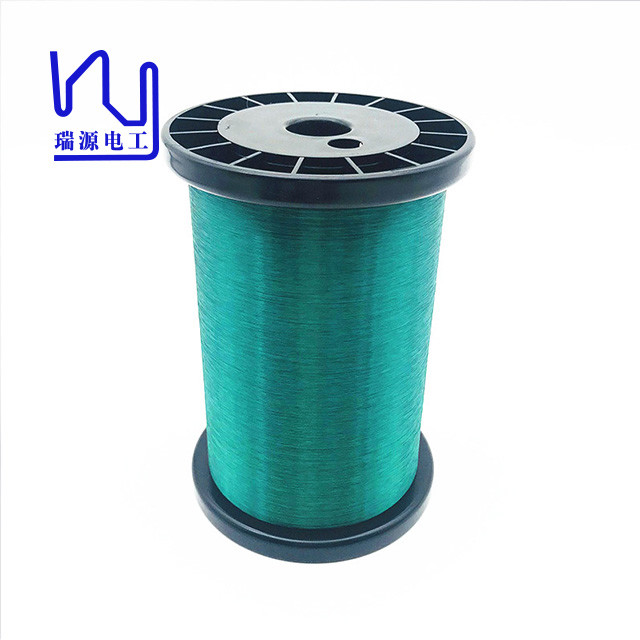

44 AWG Polyurethane guitar pickup wire
Rvyuan has been “Class A” provider for guitar pickup craftsmen and pickups makers around the world over two decades. Apart from universally used AWG41, AWG42, AWG43 and AWG44, we also help our customers explore new tones with different sizes on their requests, such as 0.065mm, 0.071mm etc. Most popular material at Rvyuan is copper, there are also pure silver, gold wire, silver plated wire available if you need.
|
Test Item |
Standard Value |
Test Result |
|
Conductor Diameter |
0.050±0.002mm |
0.050mm |
|
Thickness of insulation |
Min. 0.007 |
0.0094mm |
|
Overall diameter |
Max. 0.060mm |
0.0594mm |
|
Continuity of covering |
Max. 60 pcs |
Max. 0 pcs |
|
Breakdown voltage |
Min. 400V |
Min. 1,628V |
|
Resistance to softening |
Continue 2 times pass |
230℃/Good |
|
Solder test(390℃±5℃) |
Max. 2s |
Max. 1.5s |
|
D.C Electrical resistance(20℃) |
8.6-9.0 Ω/m |
8.80 Ω/m |
|
Elongation |
Min. 12% |
23% |
|
Product |
44 AWG Polyurthane guitar pickup wire |
|
Conductor diameter |
0.05mm |
|
Key word |
44 AWG Polyurthane guitar pickup wire |
|
Coating |
Polyurthane |
