| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.065mm |
| Minimum Order Quantity: | 2kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 100Ton/week |
| Product Name: | 0.065mm Plain Enamel Magnet Wire For Vintage Style Guitar Pickup | Insulation: | Plain/heavy Formvar |
|---|---|---|---|
| Size: | 0.065mm | Application: | Guitar Pickups Coils |
| Quantity: | 1.5kg/roll | Key Word: | 0.065mm Plain Enamel Magnet Wire For Vintage Style Guitar Pickup |
| High Light: | 0.065mm plain enamel magnet wire,guitar pickup plain enamel magnet wire,vintage style guitar pickup coil wire |
||

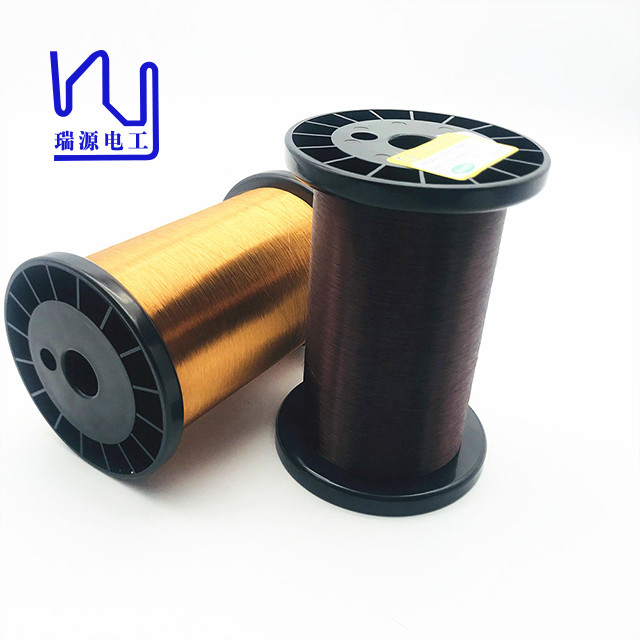

0.065mm Plain enamel magnet wire for vintage style guitar pickup
Generally speaking, Rvyuan offers guitar pickup wires ranging from 0.04mm to 0.071mm. On the basis of the classic design such as AWG 42, AWG 43, AWG 44, wires with new designs are accessible on your requests. 42 AWG magnet wire(heavy formvar, plain enamel) is the most popular thickness for guitar pickups. You can also customize your own tone with Rvyuan magnet wire for pickups by mailing or calling us now.
| Test Item | Standard Value | Test Result |
| Conductor Diameter | 0.065±0.001mm | 0.065mm |
| Thickness of insulation | Min. 0.008 | 0.0093mm |
| Overall diameter | Max. 0.075mm | 0.0743mm |
|
Continuity of covering (50V/30m) |
Max. 60 pcs | Max. 0 pcs |
| Breakdown voltage | Min. 1,000V | Min. 1,685V |
| Resistance to softening | Continue 3 times pass | 230℃/Good |
| Solder test(390℃±5℃) | Max. 2s | Max. 1.5s |
| D.C Electrical resistance(20℃) | 5.10-5.30 Ω/m | 5.16 Ω/m |
| Elongation | Min. 15% | 24% |
|
Product |
41.5 AWG magnet wire, Plain enamel guitar pickup wire |
|
Conductor diameter |
0.065mm±0.002 |
|
Key word |
41.5 AWG magnet wire, Plain enamel guitar pickup wire |
|
Coating |
Heavy formvar |
