| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.065mm |
| Minimum Order Quantity: | 2kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 100Ton/week |
| Product Name: | 41.5 AWG Magnet Wire， Plain Enamel Guitar Pickup Wire | Insulation: | Plain/heavy Formvar |
|---|---|---|---|
| Size: | 0.065mm | Application: | Guitar Pickups Coils |
| Quantity: | 1.5kg/roll | Key Word: | 41.5 AWG Magnet Wire， Plain Enamel Guitar Pickup Wire |
| High Light: | 41.5 awg guitar pickup wire,plain enamel covered guitar pickup wire,41.5 awg guitar pickup coil wire |
||

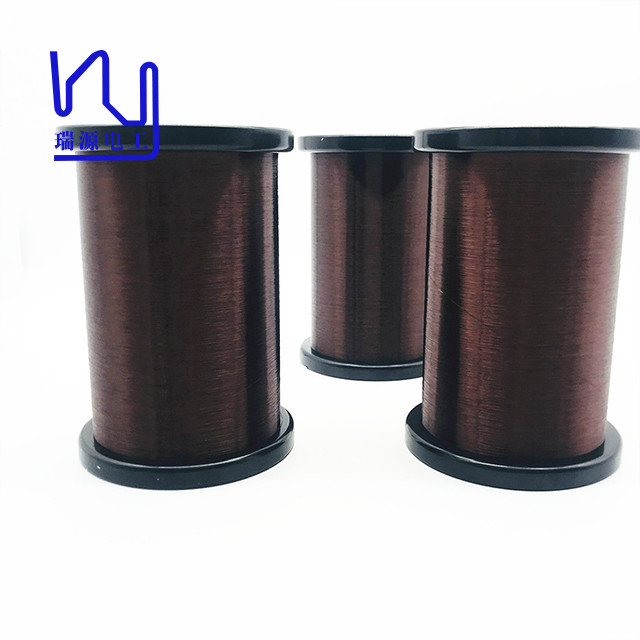

41.5 AWG magnet wire, Plain enamel guitar pickup wire
Why choose us?
| Test Item | Standard Value | Test Result |
| Conductor Diameter | 0.065±0.001mm | 0.065mm |
| Thickness of insulation | Min. 0.008 | 0.0093mm |
| Overall diameter | Max. 0.075mm | 0.0743mm |
|
Continuity of covering (50V/30m) |
Max. 60 pcs | Max. 0 pcs |
| Breakdown voltage | Min. 1,000V | Min. 1,685V |
| Resistance to softening | Continue 3 times pass | 230℃/Good |
| Solder test(390℃±5℃) | Max. 2s | Max. 1.5s |
| D.C Electrical resistance(20℃) | 5.10-5.30 Ω/m | 5.16 Ω/m |
| Elongation | Min. 15% | 24% |
| Product | 41.5 AWG magnet wire, Plain enamel guitar pickup wire |
| Conductor diameter | 0.065mm±0.002 |
| Key word | 41.5 AWG magnet wire, Plain enamel guitar pickup wire |
| Coating | Heavy formvar |
