| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.063mm |
| Minimum Order Quantity: | 2kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 100Ton/week |
| Product Name: | 0.063mm Magnet Wire, Formvar Enameled Copper Wire For Guitar Pickup | Insulation: | Plain/heavy Formvar |
|---|---|---|---|
| Size: | 0.063mm | Application: | Guitar Pickups Coils |
| Quantity: | 1.5kg/roll | Key Word: | 0.063mm Magnet Wire, Formvar Enameled Copper Wire For Guitar Pickup |
| High Light: | formvar enameled copper guitar pickup wire,guitar pickup wire 0.063 mm,formvar enameled guitar pickup coil wire |
||

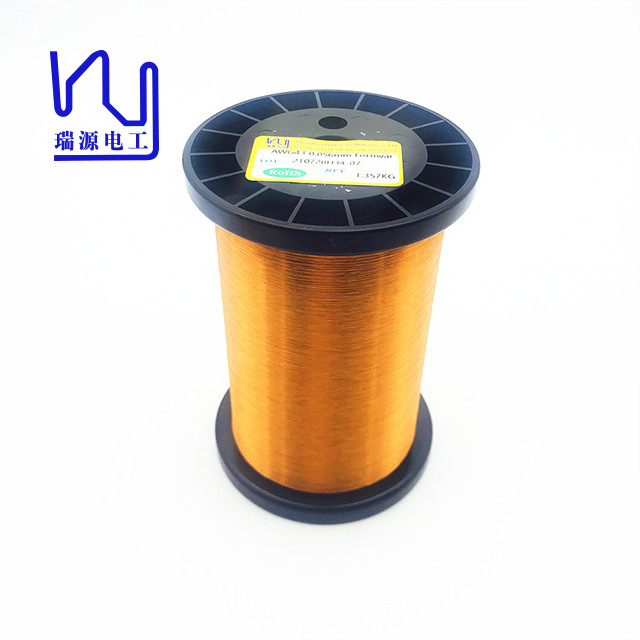

0.063mm magnet wire, formvar enameled copper wire for guitar pickup
The Right Stuff
This is a 42 gauge heavy formvar guitar pickup wire, it is used for vintage or old style guitar pickup winding, we provide small package, each reel is only 1.5kg, samples are available, we also support customization.
Voicing a pickup isn’t just a matter of selecting the right wire, insulation, and number of turns — how you lay the wire is at least as important. Among other things, this determines the pickup’s distribute capacitance, which refers to the air space formed between the layers as the coil is wound. This property affects the resonant frequency of the coil and dictates the high-frequency roll-off point, so it’s one of the factors that allows for fine-tuning a pickup’s high-end response.
| AWG 42 (0.063mm)guitar pickup wire | ||||
| Characteristics | Technical requests | Test Results | ||
| Sample 1 | Sample 2 | Sample 3 | ||
| Bare Wire Diameter |
0.063± 0.002 |
0.063 | 0.063 | 0.063 |
| Conductor Resistance | ≤ 5.900 Ω/m | 5.478 | 5.512 | 5.482 |
| Breakdown voltage | ≥ 400 V | 1768 | 1672 | 1723 |
| Product | 42 AWG heavy formvar enameled copper wire for guitar pickup |
| Conductor diameter | 0.063mm±0.002 |
| Key word | 42 AWG heavy formvar enameled copper wire for guitar pickup |
| Coating | Heavy formvar |
