| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.063mm |
| Minimum Order Quantity: | 2kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 100Ton/week |
| Product Name: | 42 AWG Heavy Formvar Enameled Copper Wire For Guitar Pickup | Insulation: | Plain/heavy Formvar |
|---|---|---|---|
| Size: | 0.063mm | Application: | Guitar Pickups Coils |
| Quantity: | 1.5kg/roll | Key Word: | 42 AWG Heavy Formvar Enameled Copper Wire For Guitar Pickup |
| High Light: | heavy formvar enamel insulated copper wire,guitar pickup enamel insulated copper wire,awg 42 guitar pickup coil wire |
||

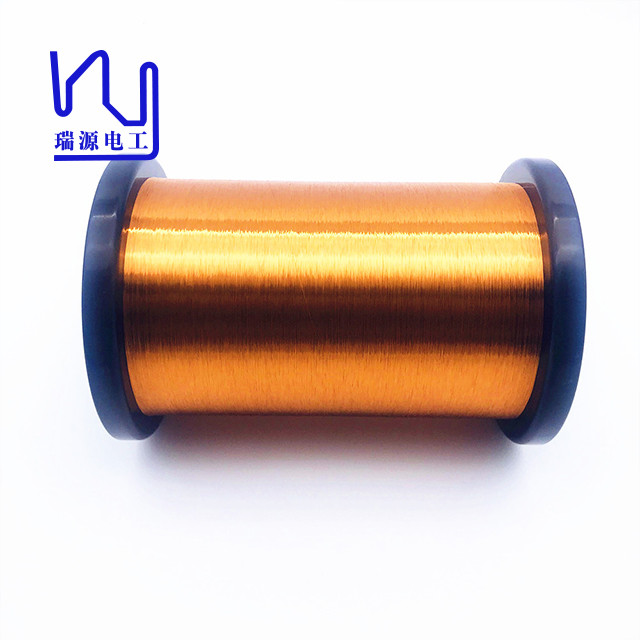

42 AWG heavy formvar enameled copper wire for guitar pickup
Here are at least 18 different types of wire insulation: polyurethanes, nylons, poly-nylons, polyester, and to name a few. Pickup makers have learned how to use different types of insulation to refine a pickup’s tonal response. For example, a wire with heavier insulation can be used to maintain more high-end detail.
Period-accurate wire is used in all vintage-style pickups. One popular vintage-style insulation is Formvar, which was used on old Strats and on some Jazz Bass pickups. But what the insulation vintage buffs know best is plain enamel, with its blackish-purple coating. Plain enamel wire was common in the ’50s and into the ’60s before the new insulations had been invented.
| AWG 42 (0.063mm)guitar pickup wire | ||||
| Characteristics | Technical requests | Test Results | ||
| Sample 1 | Sample 2 | Sample 3 | ||
| Bare Wire Diameter |
0.063± 0.002 |
0.063 | 0.063 | 0.063 |
| Conductor Resistance | ≤ 5.900 Ω/m | 5.478 | 5.512 | 5.482 |
| Breakdown voltage | ≥ 400 V | 1768 | 1672 | 1723 |
| Product | 42 AWG heavy formvar enameled copper wire for guitar pickup |
| Conductor diameter | 0.063mm±0.002 |
| Key word | 42 AWG heavy formvar enameled copper wire for guitar pickup |
| Coating | Heavy formvar |
