Detail Information

Certification:	ISO9001/ISO14001/UL/SGS	Name:	Silk Covered USTC High Frequency Litz Wire With Copper Conductor
Diameter:	0.071mm	Standard:	GB/T5013.3/IEC60245-3:1994
Conductor:	Copper	Insulation:	Enamel
Rated Temperature:	155/180	Key Word:	Silk Covered USTC High Frequency Litz Wire With Copper Conductor
No. Of Strands:	630
High Light:	silk covered high frequency litz wire , ustc high frequency litz wire , copper conductor high frequency litz wire

Product Description

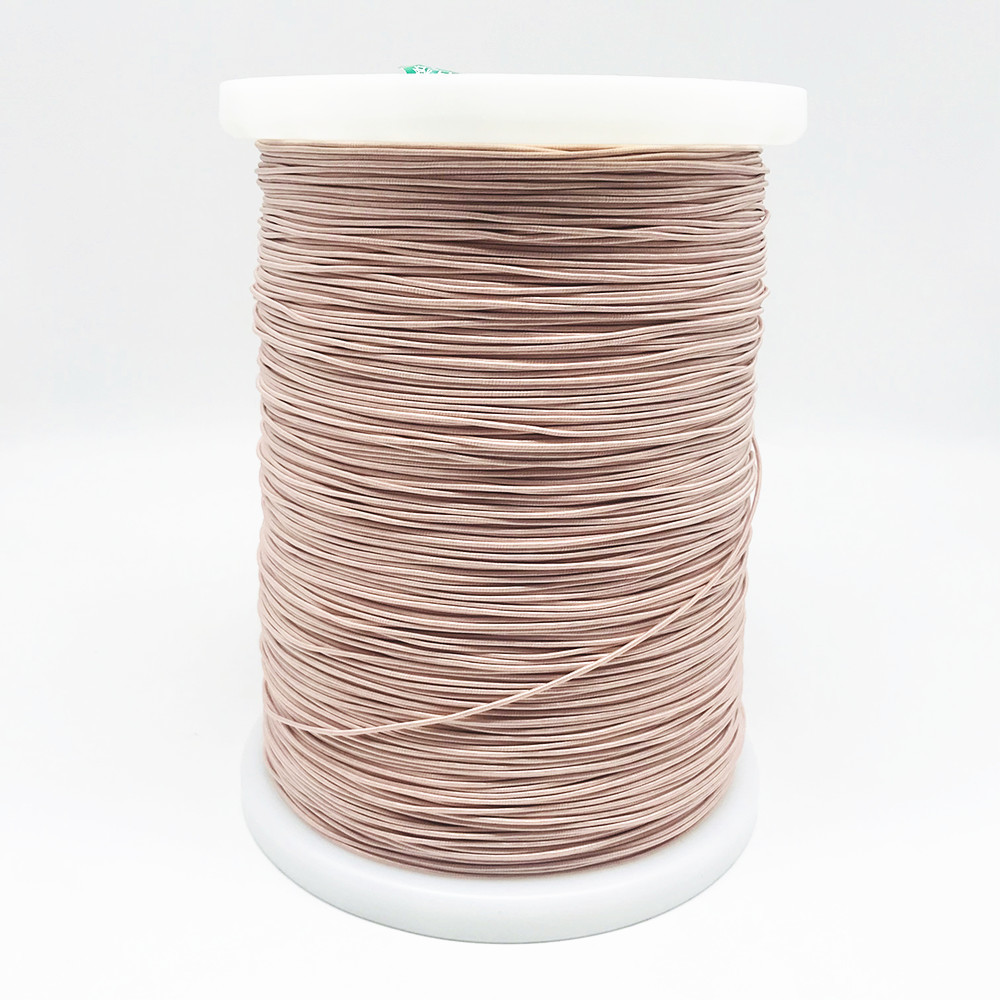

Silk Covered USTC High Frequency Litz Wire With Copper Conductor

Compared with bare wire, silk-covered wire increases insulation strength, reduces surface temperature, and improves "Q" value. Silk-covered wire has the same characteristics as enameled stranded wire. It is mostly used in antenna inductors, high-power lighting systems, video equipment, ultrasonic equipment, high-frequency inductors and transformers.

Name	0.071 x 630 Nylon Covered UDTC Silk Covered Litz Wire For Transformer Winding
Key word	Copper litz wire
Insulationh	Enamel, polyster cover
Thermal rating	155degree
Diameter of the enameled copper wire	0.071mm
Number of strands	155 / 180
Type	0.071 x 630 Nylon Covered UDTC Silk Covered Litz Wire For Transformer Winding

Description Conductor diameter x strand number		2UDTC F 0.071*630
Single wire	Conductor diameter(mm)	0.071
	Conductor diameter to tolerance(mm)	±0.003
	Minimal insulation thickness(mm)	0.005
	Maximal overall diamter(mm)	0.079-0.091
	Thermal class	155
Strand composition	Stranding number	630
	Pitch(mm)	47±3
	Stranding direction	S
Insulation layer	Category
	UL	OK
	Material specs(mm*mm or D)	0.025mm
	Times of wrapping	2
	Overlap(%)	50
	Wrapping direction	S
Characteristics	Max O. D(mm)	3.15
	Max pin holes	100/6m
	Max resistance(Ω/km at 20℃)	7.22
	Mini breakdown voltage	≥2000

Ruiyuan Company was awarded the "Quality A Supplier" by a German Brand

Silk Covered Ustc High Frequency Litz Wire With Copper Conductor 0

Silk Covered Ustc High Frequency Litz Wire With Copper Conductor 1

Silk Covered Ustc High Frequency Litz Wire With Copper Conductor 2

Silk Covered Ustc High Frequency Litz Wire With Copper Conductor 3

Tag:

Place of Origin:	China
Brand Name:	Rvyuan
Model Number:	Copper litz wire

Minimum Order Quantity:	20kg
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	2-15 workding days
Payment Terms:	Negotiation
Supply Ability:	Satisfy your demand
