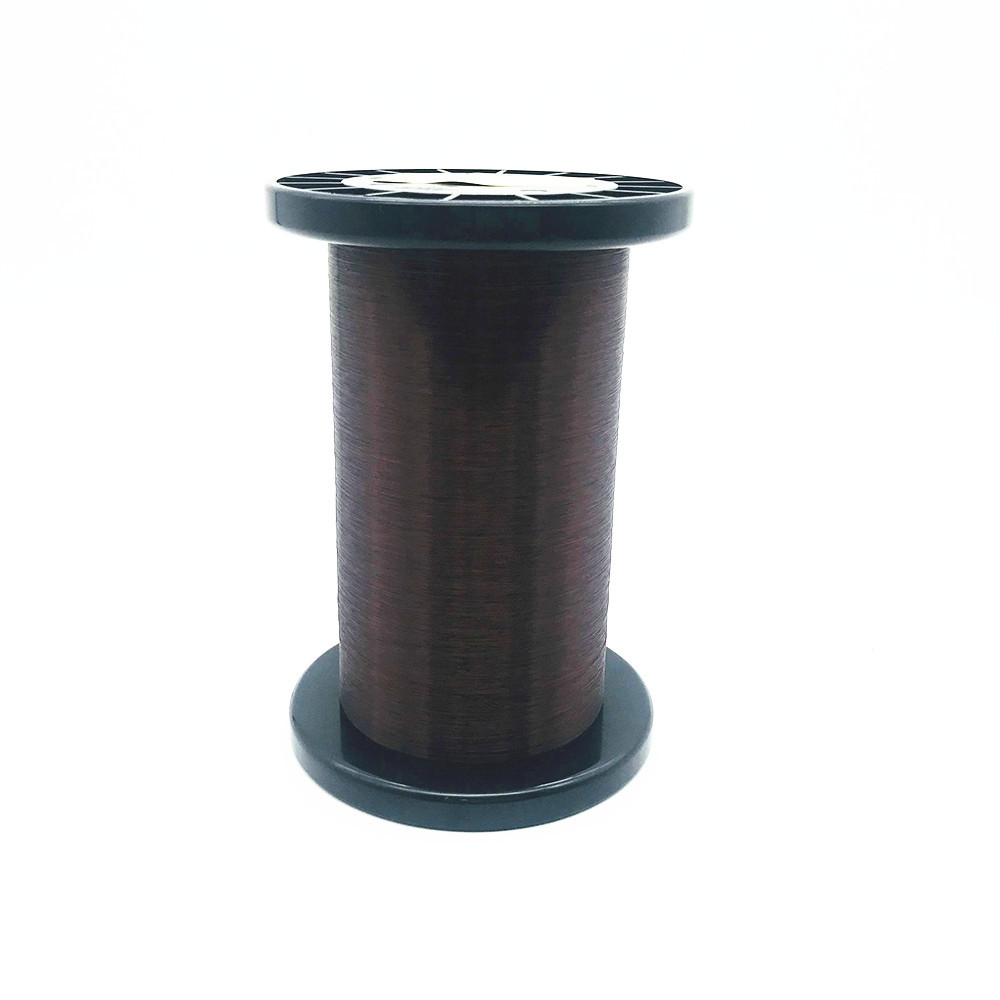

0.056mm Plain 43AWG Guitar Pickup Wire For Old Style Guitar

Basic Information
Place of Origin: China
Brand Name: Rvyuan
Certification: IEC/NEMA/JIS/RoHS/ISO
Model Number: Guitar pickup wire
Minimum Order Quantity: 1kg
Price: Negotiation
Packaging Details: Spool with carton
Delivery Time: 2-15 workding days
Payment Terms: Negotiation
Supply Ability: Satisfy your demand
Detail Information
Name: 0.056mm Plain Guitar Pickup Wire For Old Style Guitar Color: Brown
Certification: ISO9001/ISO14001/UL/SGS Diameter: 43AWG
Standard: GB/T5013.3/IEC60245-3:1994 Conductor: Copper
Insulation: Plain Enamel Rated Temperature: 155/180
Key Word: Guitar Pickup Wire
High Light:

0.056mm guitar pickup wire

,

43awg guitar pickup wire

,

0.056mm guitar pickup coil wire


Product Description

0.056mm Plain 43AWG Guitar Pickup Wire For Old Style Guitar 0

0.056mm Plain 43AWG Guitar Pickup Wire For Old Style Guitar 1

0.056mm Plain 43AWG Guitar Pickup Wire For Old Style Guitar 2

0.056mm Plain 43AWG Guitar Pickup Wire For Old Style Guitar 3

0.056mm plain guitar pickup wire for old style guitar



42/43 awg plain enamel guitar pickup wire, around 1.5kg/spool

42/43 awg heavy formvar guitar pickup wire, around 1.5kg/spool
42/43 awg polysol guitar pickup wire, around 1.5kg/spool



Name

0.056mm plain guitar pickup wire for old style guitar

Key word

Enameled copper wire

Insulationh

Heavy formvar enamel

Thermal rating

155degree

Diameter of the enameled copper wire

0.056mm

Type

Enameled copper wire



AWG 43 (0.056mm) enameled copper wire
Characteristics
Technical requests
Test Results

Sample 1
Sample 2
Sample 3
Surface
Good
OK
OK
OK
Bare Wire Diameter
0.056±
0.002
0.056
0.056
0.056
0.002
Conductor Resistance
≤ 7.528 Ω/m
7.102
7.098
7.087
Breakdown voltage
≥ 300 V
1153
1236
1358



0.056mm Plain 43AWG Guitar Pickup Wire For Old Style Guitar 4
