Name: 0.063mm Guitar Pickup Wire Magnet Plain Enamel Copper
Brand: Tianjin Ruiyuan Electric Material Co,.Ltd
SKU: Guitar pickup wire
Price: 46.20 USD
Availability: InStock

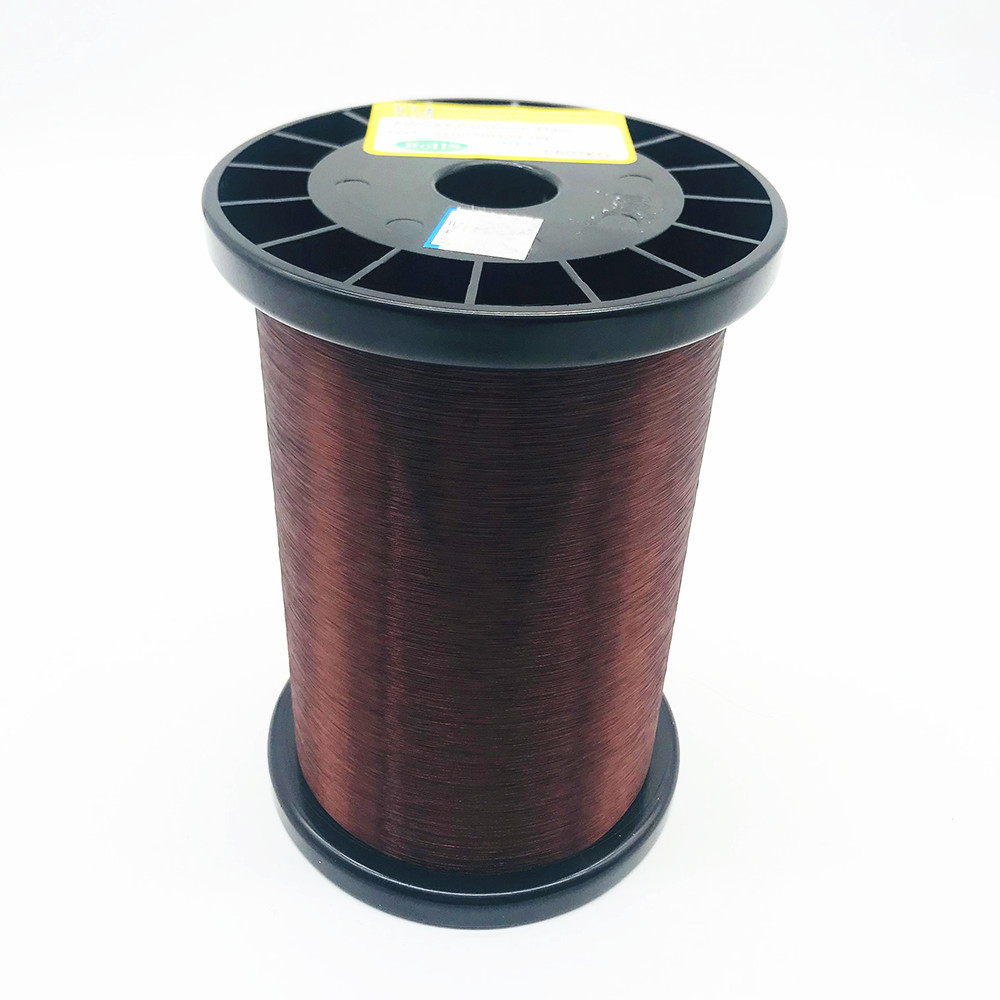

0.063mm Guitar Pickup Wire Magnet Plain Enamel Copper

Basic Information

Place of Origin:	China
Brand Name:	Rvyuan
Certification:	IEC/NEMA/JIS/RoHS/ISO
Model Number:	Guitar pickup wire

Minimum Order Quantity:	1kg
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	2-15 workding days
Payment Terms:	Negotiation
Supply Ability:	Satisfy your demand

Get Best Price Contact Now

Detail Information

Name:	0.063mm Magnet Wire, Plain Enamel Copper Wire For Vintage Style Guitar Pickups	Color:	Brown
Certification:	ISO9001/ISO14001/UL/SGS	Diameter:	42AWG
Standard:	GB/T5013.3/IEC60245-3:1994	Conductor:	Copper
Insulation:	Plain Enamel	Rated Temperature:	155/180
Key Word:	Guitar Pickup Wire
Highlight:	0.063mm guitar pickup wire , nema guitar pickup wire , copper 42 awg plain enamel wire

Product Description

0.063mm Magnet Wire, Plain Enamel Copper Wire For Vintage Style Guitar Pickups

We are professional guitar pickup wire manufacturer, we offer formvar/plain enameled copper wire.We supply 42 awg, 43 awg and 44awg, and also customized wire according to your needs.

Model: 42 awg/0.063mm plain enameled copper wire

Quantity: Round 1.5kg/spool, Carton

Name	0.063mm Magnet Wire, Plain Enamel Copper Wire For Vintage Style Guitar Pickups
Key word	Enameled copper wire
Insulationh	Heavy formvar enamel
Thermal rating	155degree
Diameter of the enameled copper wire	0.063mm
Type	Enameled copper wire

AWG 42 (0.063mm) enameled copper wire weight
Characteristics	Technical requests		Test Results
			Sample 1	Sample 2	Sample 3
Surface	Good		OK	OK	OK
Bare Wire Diameter	0.063±	0.002	0.063	0.063	0.063
		0.002
Conductor Resistance	≤ 5.900 Ω/m		5.478	5.512	5.482
Breakdown voltage	≥ 400 V		1768	1672	1723

Ruiyuan Company was awarded the "Quality A Supplier" by a German Brand

0.063mm Guitar Pickup Wire Magnet Plain Enamel Copper 0

0.063mm Guitar Pickup Wire Magnet Plain Enamel Copper 1

0.063mm Guitar Pickup Wire Magnet Plain Enamel Copper 2

0.063mm Guitar Pickup Wire Magnet Plain Enamel Copper 3
