Detail Information

Name:	UL Certification UEW 52AWG Solderable Enamelled Copper Wire For Ignition Coil	Color:	Red/Green/Normal
Certification:	ISO9001/ISO14001/UL/SGS	Diameter:	0.06m
Standard:	GB/T5013.3/IEC60245-3:1994	Conductor:	Copper
Insulation:	Polyurethane	Rated Temperature:	155/180
Key Word:	Enameled Copper Wire
Highlight:	2uew voice coil wire , high frequency voice coil wire , 48awg enamel covered wire

Product Description

2UEW 180 48AWG High Frequency Enameled Magnet Copper Wire For Voice Coils

Polyurethane Enameled Copper Wire
Conductor Material:Copper
Diameter: 0.011-1.20mm enameled copper wire
Standard: IEC, NEMA, GB,JIS
Thermal Class: 130,155,180
Enameled types : UEW,QA
Certification:UL Approved, ISO9001,ISO14001,RoHS

Name	2UEW 180 48AWG High Frequency Enameled Magnet Copper Wire For Voice Coils
Key word	Enameled copper wire
Insulation	Polyurethane
Thermal rating	155degree
Diameter of the enameled copper wire	0.02mm
Type	Enameled copper wire

NO.	Characteristics	Technical requests		Test Results			Conclusion
				Sample1	Sample 2	Sample 3
1	Surface	Good		OK	OK	OK	OK
2	Bare Wire Diameter	0.060±	0.002	0.0600	0.0600	0.0600	OK
			0.002
3	Insulation thickness	≥ 0.008 mm		0.0100	0.0120	0.0110	OK
4	Overall diameter	≤ 0.074 mm		0.0700	0.0720	0.0710	OK
5	Electrical Resistance	≤6.415Ω/m		6.009	6.081	6.013	OK
6	Elongation	≥ 14 %		21.7	22.6	21.9	OK
7	Breakdown voltage	≥500 V		1769	1961	1886	OK
8	Pinbole test	≤ 5 hole/5m		0	0	0	OK
9	Enamel continuity	≤ 15 hole/30m		0	0	0	OK
Remark
	Test items		Technical Requests		Results		Conclusion
1	Adhesive		No crack		OK		Approval
2	Cut-through		200℃ 2mins no crack		OK
3	Heat Shock		175±5℃/30min no crack		OK
4	Solder Ability		390± 5℃ 2Sec Smooth		OK

Ruiyuan Company was awarded the "Quality A Supplier" by a German Brand

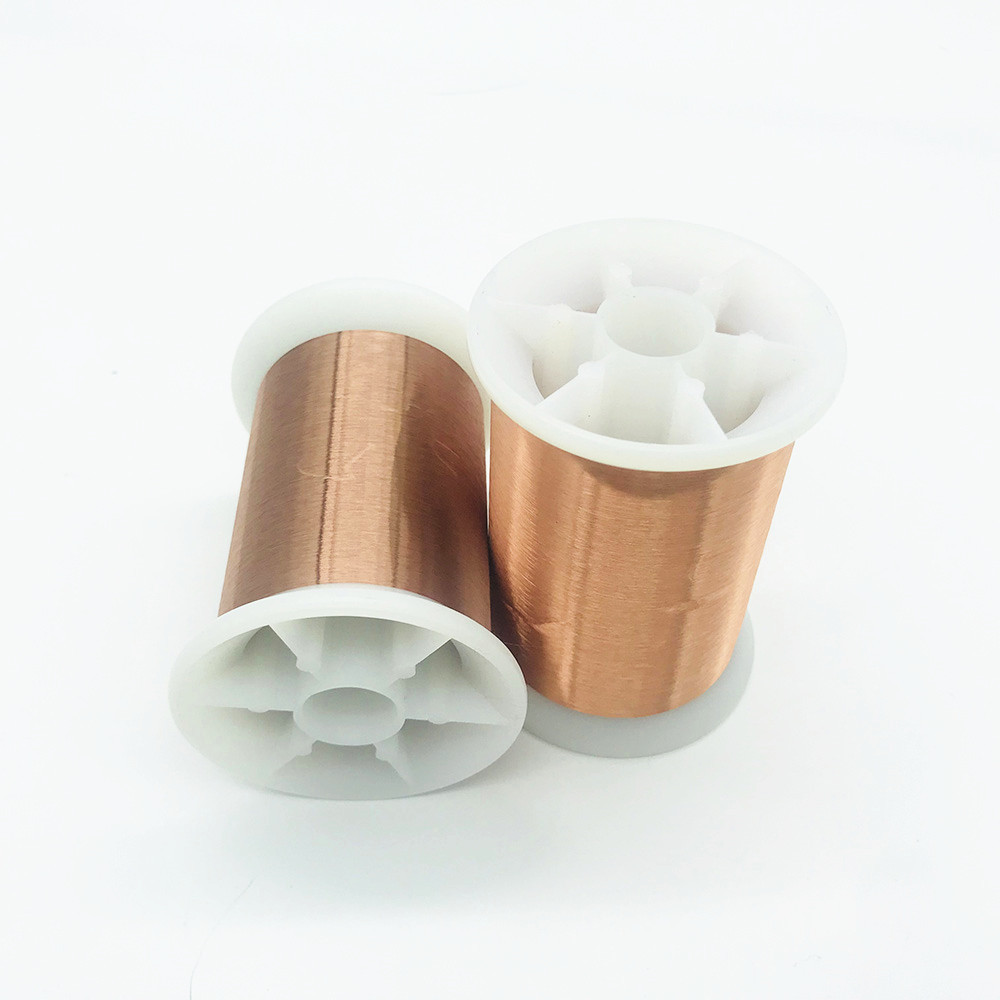

2uew 180 48awg Voice Coil Wire High Frequency Enameled Magnet Copper 0

2uew 180 48awg Voice Coil Wire High Frequency Enameled Magnet Copper 1

2uew 180 48awg Voice Coil Wire High Frequency Enameled Magnet Copper 2

2uew 180 48awg Voice Coil Wire High Frequency Enameled Magnet Copper 3

Tag:

Place of Origin:	China
Brand Name:	Rvyuan
Certification:	IEC/NEMA/JIS/RoHS/ISO
Model Number:	UEW

Minimum Order Quantity:	10kg
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	2-15 workding days
Payment Terms:	Negotiation
Supply Ability:	Satisfy your demand
