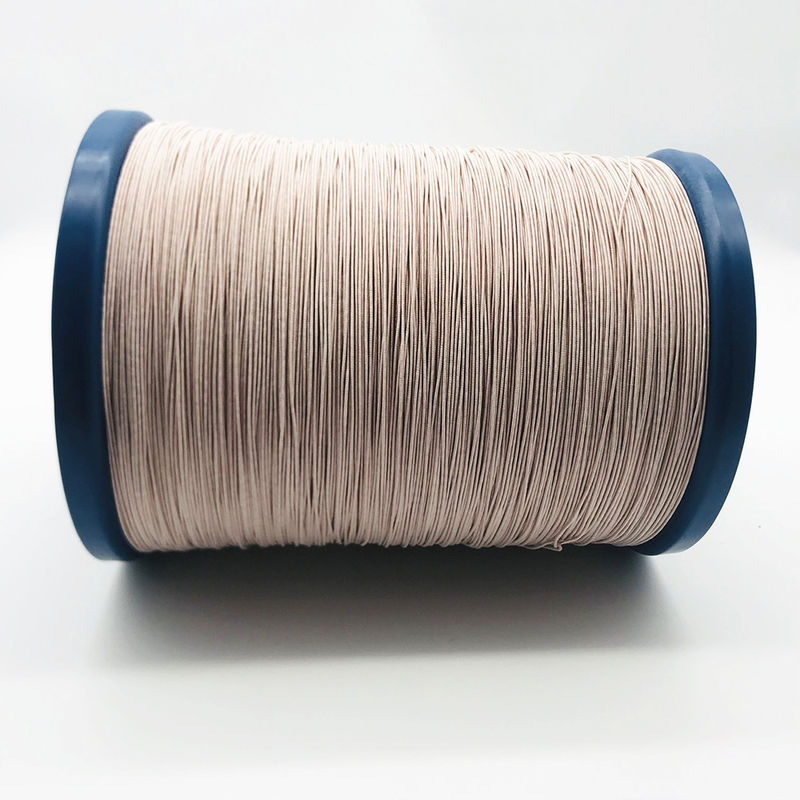

Ustc 40awg / 42 Enameled Stranded Copper Wire Nylon Covered Litz Wire

Basic Information

Place of Origin:	China
Brand Name:	Ruiyuan
Certification:	UL/ISO9001/ISO14001/RoHS/Reach
Model Number:	0.08mm * 42

Minimum Order Quantity:	20Kilogram/Kilograms
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	2-15 days
Payment Terms:	Negotiation
Supply Ability:	Negotiation

Get Best Price Contact Now

Detail Information

Product:	Silk Covered Litz Wire	Feature:	Self Bonding Silk Covered Litz Wire
Individual Wire Diameter:	0.08mm	No. Of Strands:	42
Thermal Grade:	155	Jacket:	Dacron/Nylon
Highlight:	ustc155 stranded copper wire , 40awg stranded copper wire , enameled stranded copper wire

Product Description

USTC155 40awg / 42 Enameled Stranded Copper Wire Nylon Covered Litz Wire

Litz wire employs a stranded wire with individually insulated conductors (forming abundle). Our factory can customize various types of Litz wire, which is one of our company's main products and best-selling products,including silk covered wire, Mylar wire, etc.

Item	Technical requriement	Test result
Conductor overall diameter(mm)	0.087-0.103	0.090	0.093
Conductor diamter (mm)	0.08±0.003	0.078	0.080
Overall diamter(mm)	Max. 0.83	0.67	0.71
Pitch (mm)	27±3	√	√
Resistance (Ω/m at20℃)	Max.0.08988	0.0820	0.0817
Breakdown voltage	Min.1100	2800	3100
Max pin holes faults/6m	Max.35	7	4

Ustc 40awg / 42 Enameled Stranded Copper Wire Nylon Covered Litz Wire

ustc155 stranded copper wire

40awg stranded copper wire

enameled stranded copper wire

self bonding thin stranded wire,

enameled thin stranded wire,

40 awg thin stranded wire
