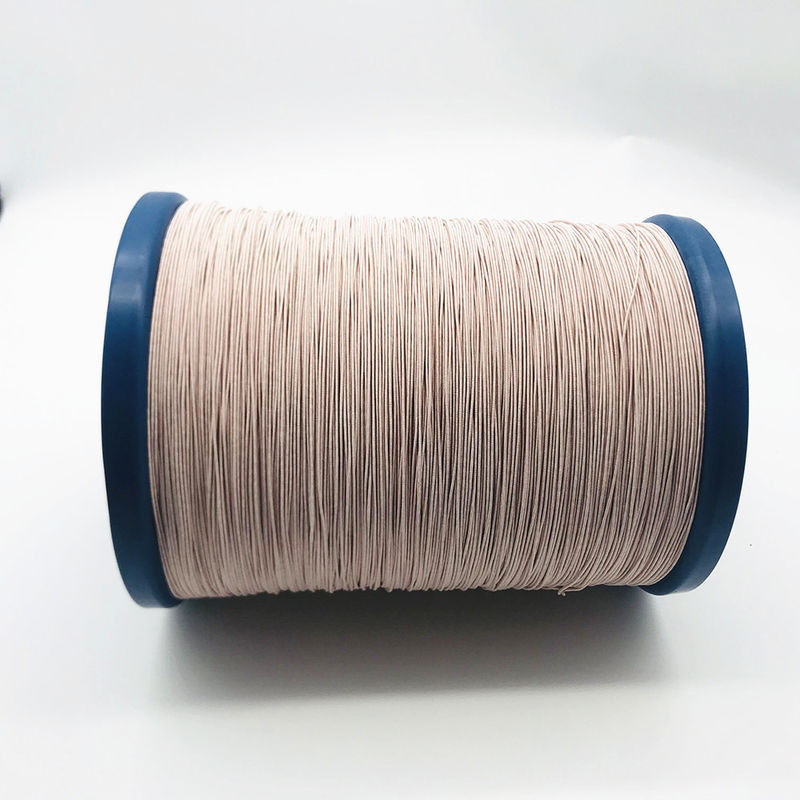

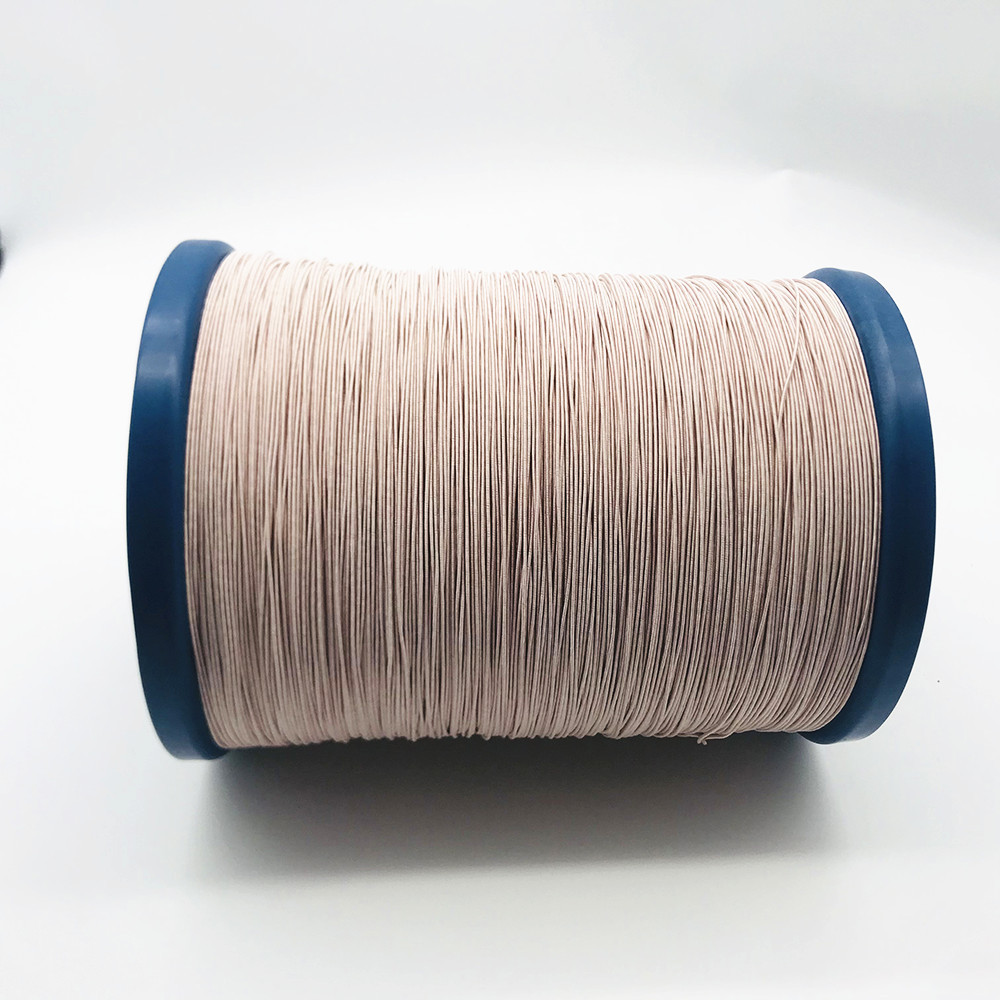

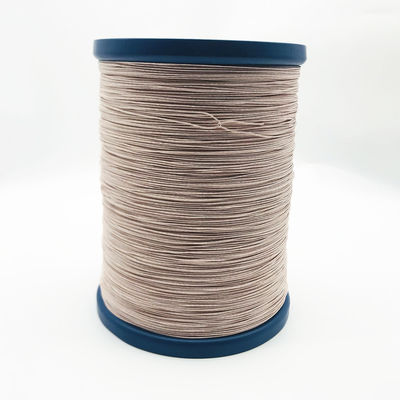

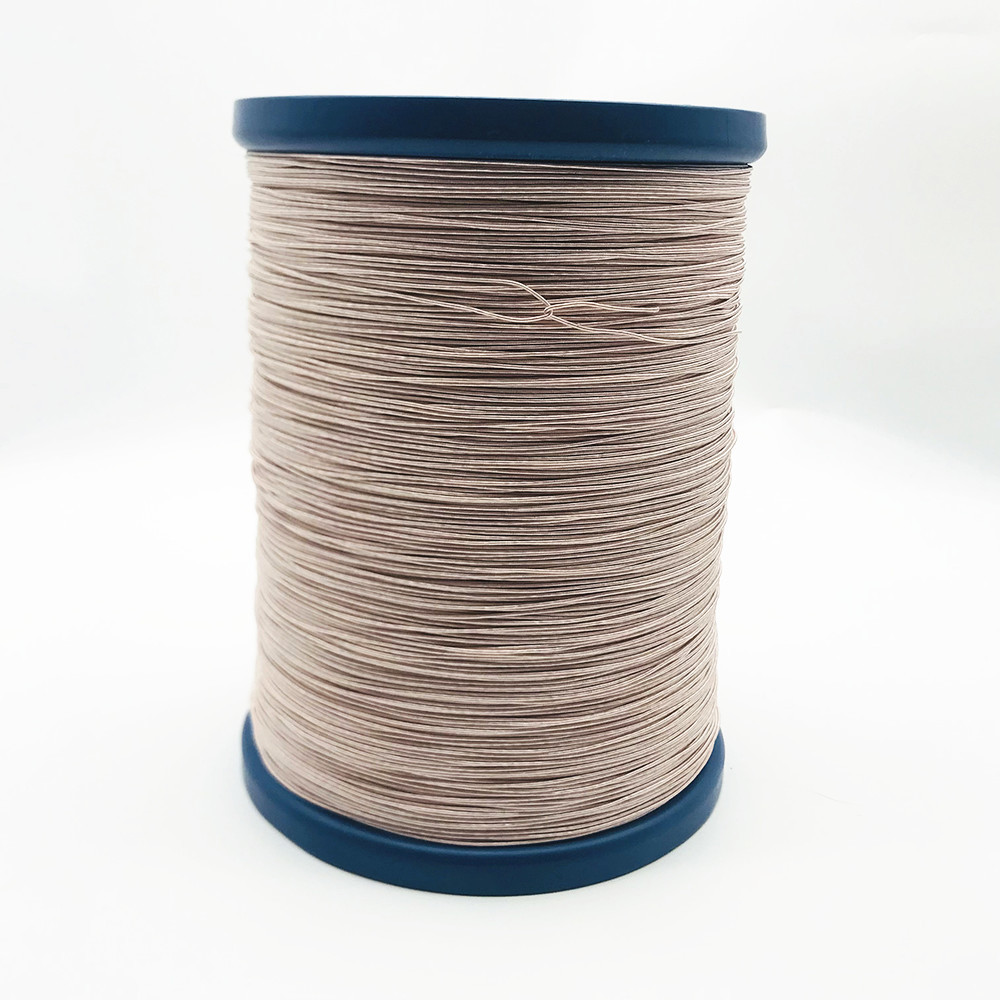

Thin 0.08mm * 105 Ustc Stranded Copper Litz Wire

Basic Information
Place of Origin: China
Brand Name: Ruiyuan
Certification: UL/ISO9001/ISO14001/RoHS/Reach
Model Number: 0.08mm * 105
Minimum Order Quantity: 20Kilogram/Kilograms
Price: Negotiation
Packaging Details: Carton
Delivery Time: 2-15 days
Payment Terms: Negotiation
Supply Ability: 10Ton/week
Detail Information
Product: Silk Covered Litz Wire Feature: Self Bonding Silk Covered Litz Wire
Individual Wire Diameter: 0.08mm No. Of Strands: 105
Thermal Grade: 155 Jacket: Dacron/Nylon
High Light:

0.08mm copper litz wire

,

dacron jacket copper litz wire

,

thin copper litz wire


Product Description

0.08mm * 105 USTC Stranded Copper Wire Self Bonding Silk Covered Litz Wire



Litz wire employs a stranded wire with individually insulated conductors (forming abundle). Our factory can customize various types of Litz wire, which is one of our company's main products and best-selling products,including silk covered wire, Mylar wire, etc.



Item Technical requriement Test result
Conductor overall diameter(mm) 0.086-0.103 0.086-0.088
Conductor diamter (mm) 0.08±0.003

0.077-0.079

Overall diamter(mm) Max. 1.30  1.12-1.18
Pitch (mm) 20±3
Resistance (Ω/m at20℃)
Max.0.03595 0.0338
Breakdown voltage
Min.1100 2800
Max pin holes faults/6m Max.45 0



Thin 0.08mm * 105 Ustc Stranded Copper Litz Wire 0
