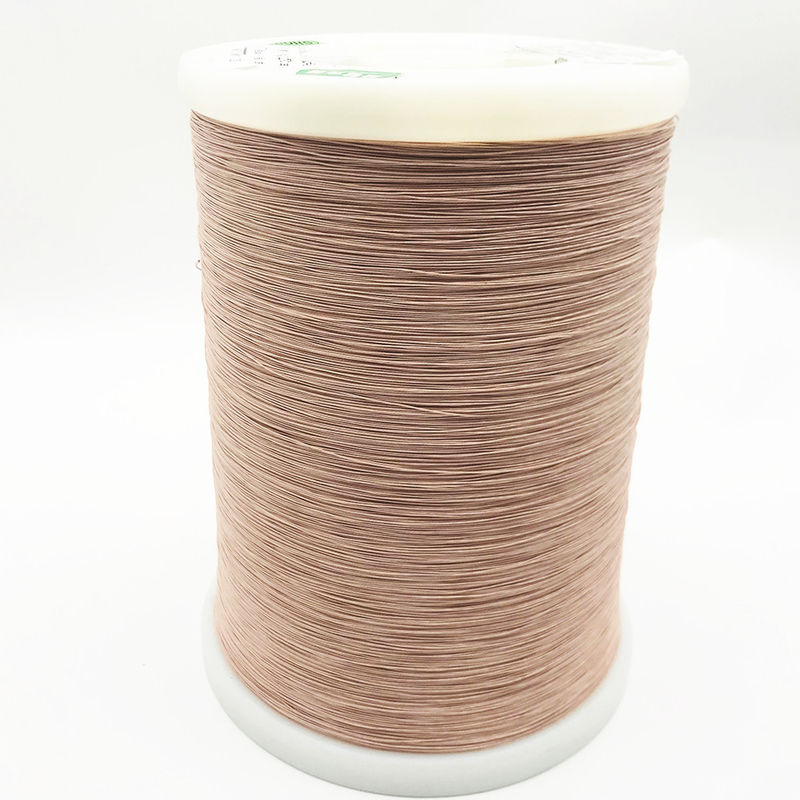

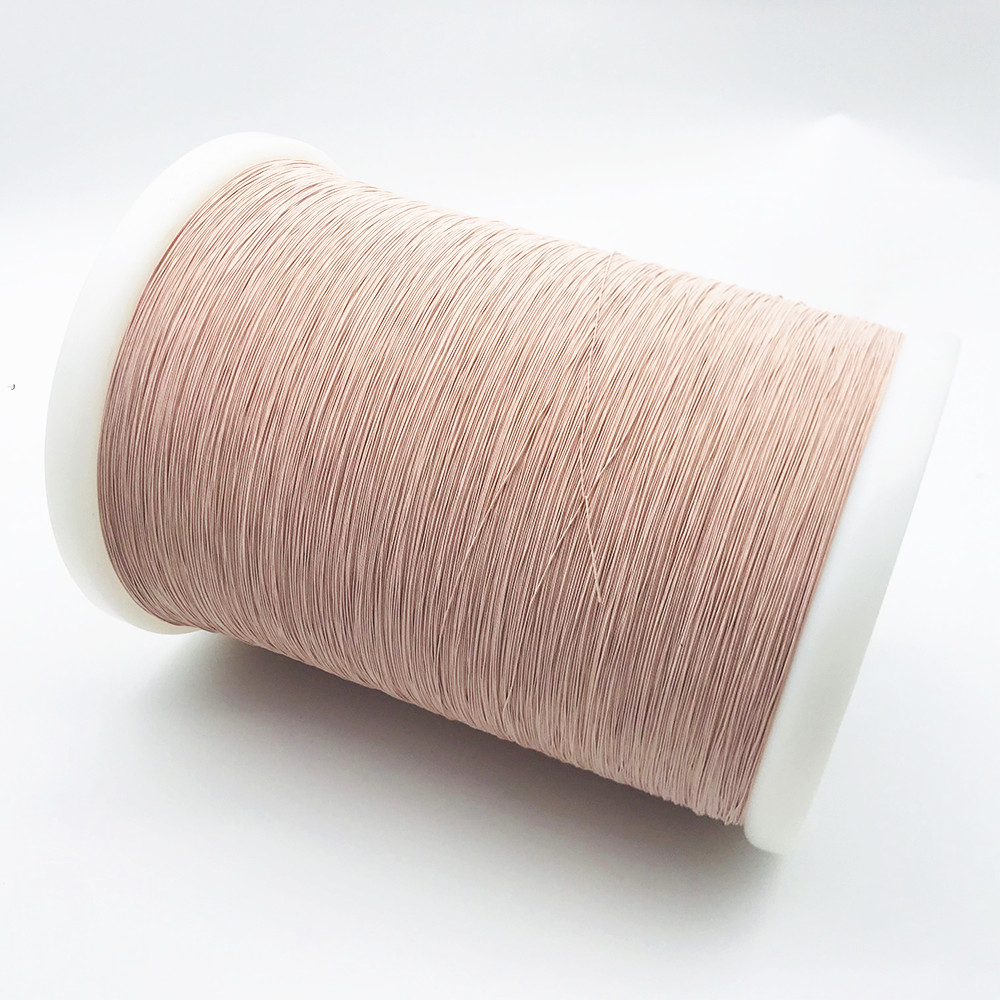

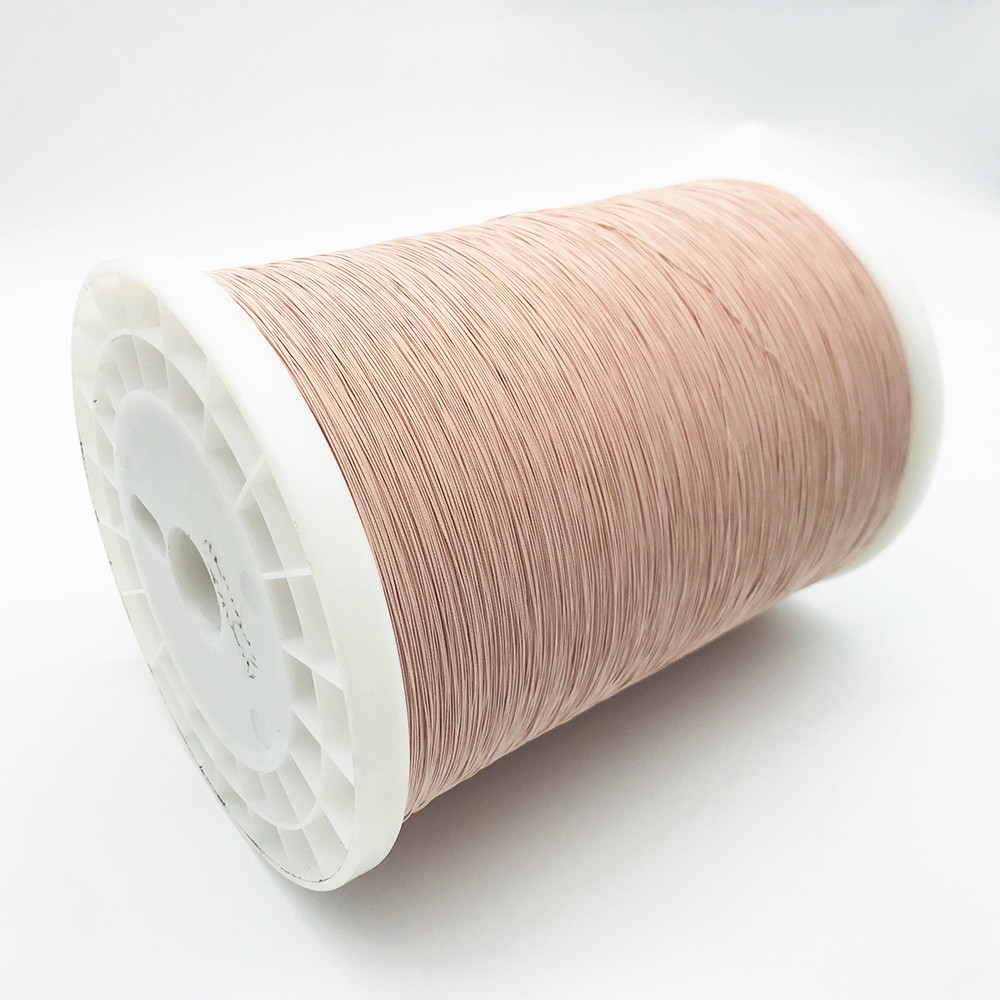

40 Awg Copper Litz Cable For High Frequency Transformer

Basic Information

Place of Origin:	China
Brand Name:	Ruiyuan
Certification:	UL/ISO9001/ISO14001/RoHS/Reach
Model Number:	40awg/17

Minimum Order Quantity:	20Kilogram/Kilograms
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	15 days
Payment Terms:	Negotiation
Supply Ability:	500kg/week

Get Best Price Contact Now

Detail Information

Product Name:	Silk Covered Litz Wire	Single Wire Diameter:	40awg(0.08mm)
Number Of Strands:	17	Thermal Grade:	155
Breakdown Voltage:	Min. 1100V	Jacket:	Nylon
Highlight:	40 awg copper litz cable , high frequency transformer copper litz cable , 0.08 mm copper litz cable

Product Description

40AWG / 17 USTC155 Silk Covered Litz Wire Copper Wire Stranded For High Frequncey Transformer

Litz wire employs a stranded wire with individually insulated conductors (forming abundle). Our factory can customize various types of Litz wire, which is one of our company's main products and best-selling products,including silk covered wire, Mylar wire, etc.

Test report

Characteristics	Technical requests	Test Results
Conductor diameter(mm)	0.08±0.003	0.078	0.080
Overall conductor diameter(mm)	0.087-0.103	0.090	0.093
Maximum outer diameter(mm)	0.52	0.42	0.47
Pitch(mm)	27±3	√	√
Maximum Resistance(Ω/m 20℃)	0.2221	0.200	0.202
Minimum Breakdown Voltage(V)	1100	2700	2600
Solderability	390±5℃, 6s	√	√
Pinhole(faults/6m)	Max.20	3	2

40 Awg Copper Litz Cable For High Frequency Transformer 0
