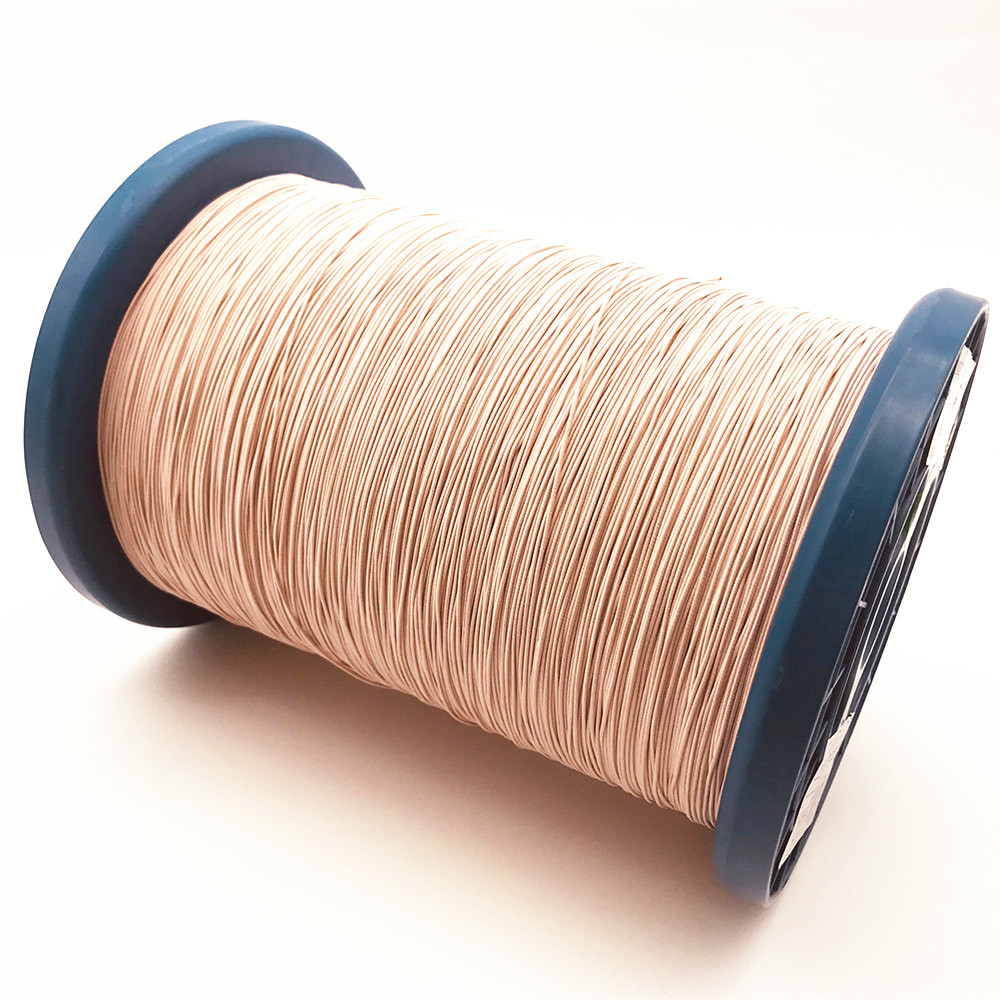

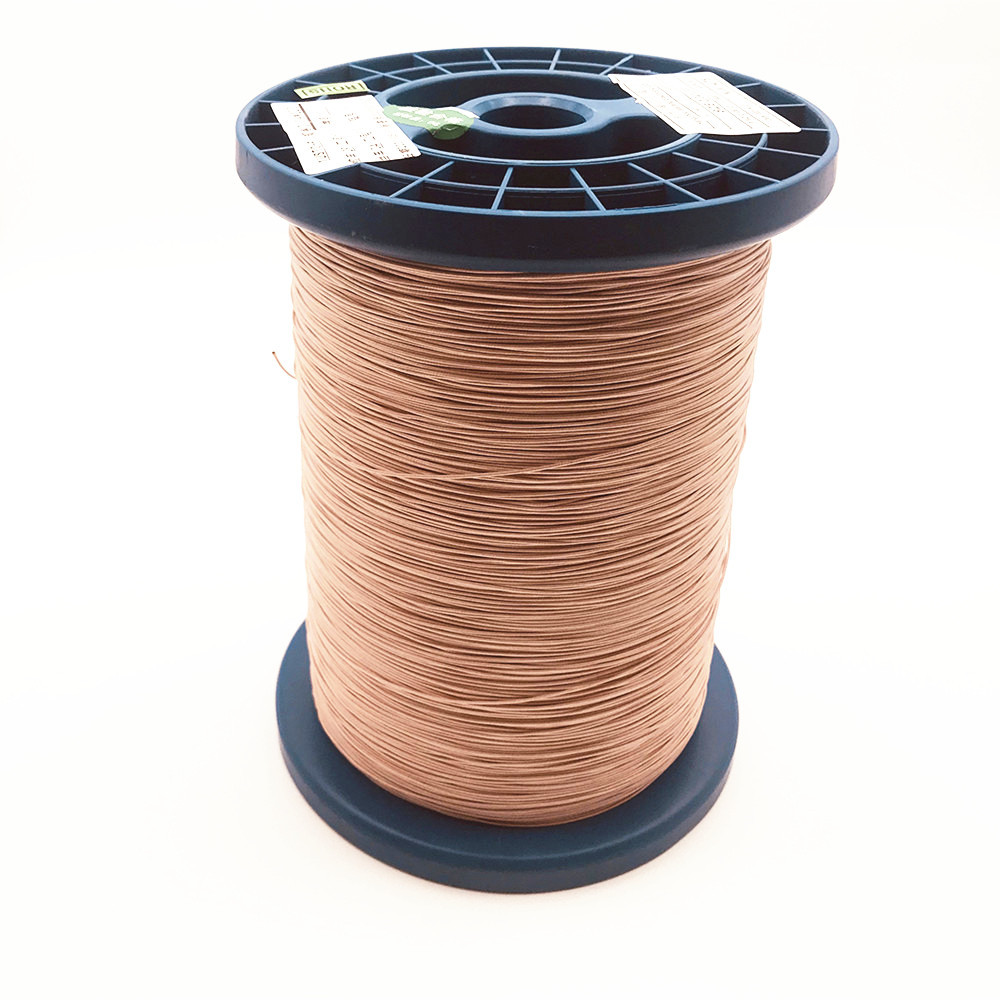

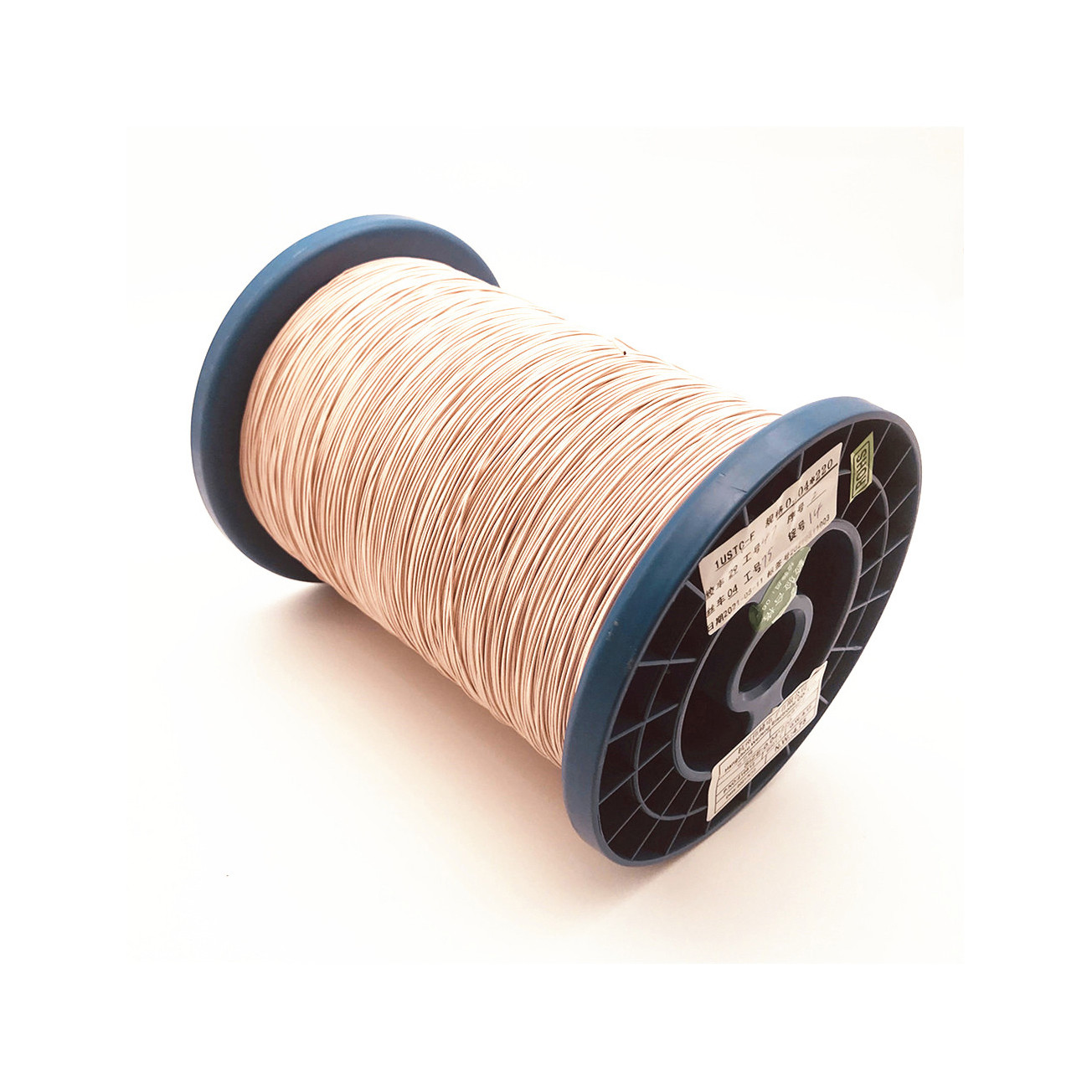

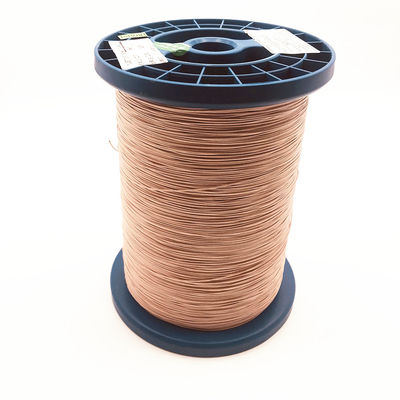

1300v 0.1mm * 250 Nylon Covered Insulated Copper Litz Wire

Basic Information

Place of Origin:	China
Brand Name:	Ruiyuan
Certification:	UL/ISO9001/ISO14001/RoHS/Reach
Model Number:	0.1*250

Minimum Order Quantity:	20Kilogram/Kilograms
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	2-15 days
Payment Terms:	Negotiation
Supply Ability:	Negotiation

Get Best Price Contact Now

Detail Information

Product Name:	Silk Covered Litz Wire	No. Of Strands:	250
Single Wire Diameter:	0.1mm	Voltage:	1300v
Thermal Grade:	155
Highlight:	nylon covered insulated copper litz wire , 1300v copper litz wire , 0.1mm copper litz wire

Product Description

USTC 155 1300V 0.1mm * 250 Nylon Covered Insulated Wire Enamel Stranded Copper Litz Wire

Litz wire employs a stranded wire with individually insulated conductors (forming a bundle). The covering with silk can improve the winding efficiency, especially at high speed.

USTC WIRE 0.1*250	Technical requests
Conductor diameter(mm)	0.10±0.003
No. Of strands	250
Maximum outer diameter(mm)	2.39
Pitch(mm)	32±3
Maximum Resistance(Ω/km 20℃)	9.34
Minimum Breakdown Voltage(V)	1300
Solderability	390±5℃, 9s

1300v 0.1mm * 250 Nylon Covered Insulated Copper Litz Wire 0
