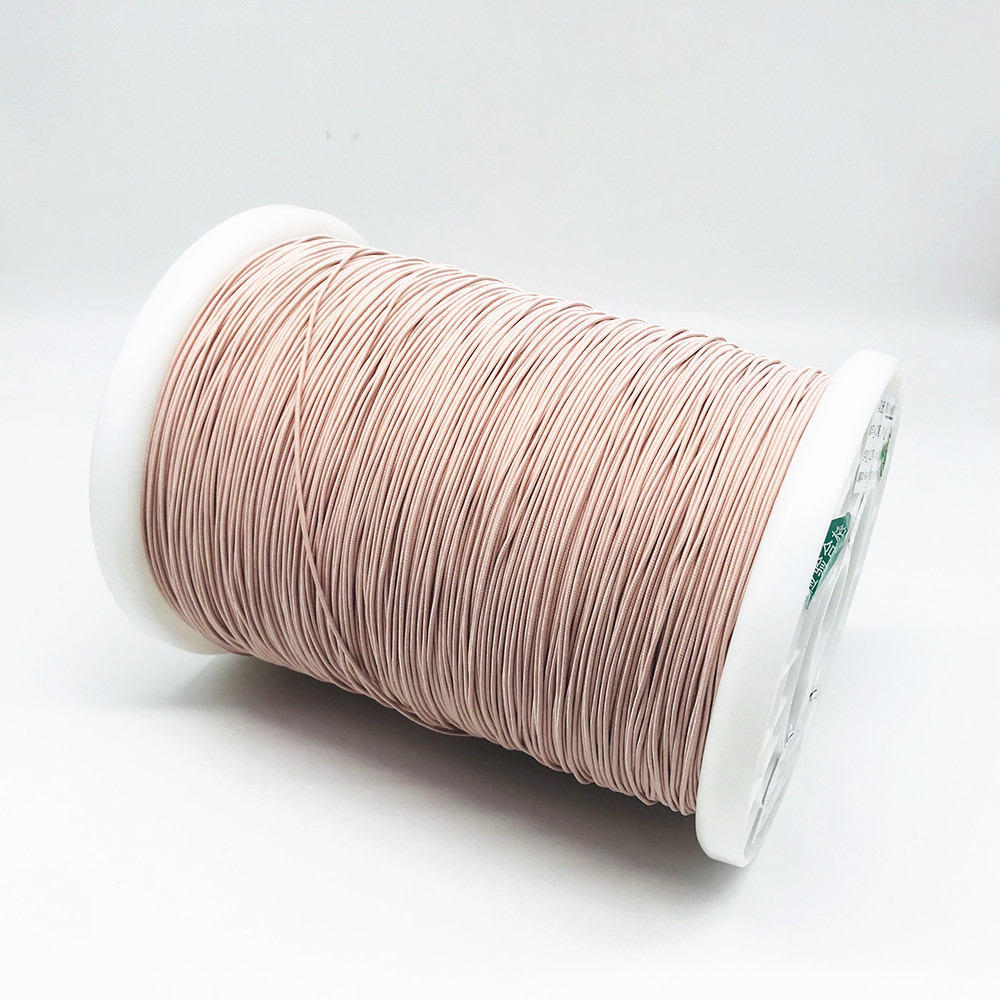

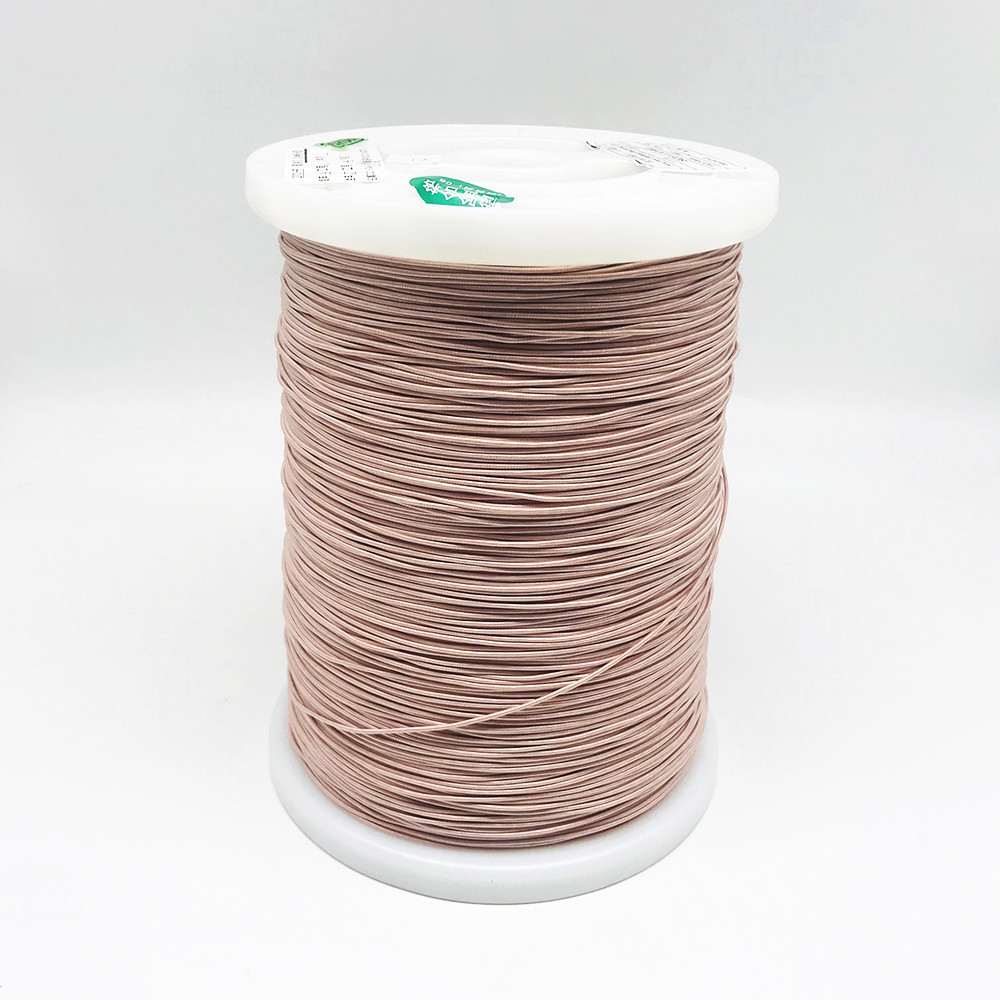

Silk Covered Ustc 155 0.04mm * 420 Copper Litz Wire

Basic Information
Place of Origin: China
Brand Name: Ruiyuan
Certification: UL/ISO9001/ISO14001/RoHS/Reach
Model Number: 0.04*420
Minimum Order Quantity: 20Kilogram/Kilograms
Price: Negotiation
Packaging Details: Carton
Delivery Time: 2-15 days
Payment Terms: Negotiation
Supply Ability: Negotiation
Detail Information
Product Name: Silk Covered Litz Wire No. Of Strands: 420
Single Wire Diameter: 0.04mm Min. Breakdown Voltage(V): 1300
High Light:

ustc 0.04 mm copper wire

,

copper litz wire ustc

,

copper litz wire silk covered


Product Description

USTC 155 0.04mm * 420 High Voltage Insulated Polyester Enameled Stranded Wire Silk Covered Litz Wire

We offer copper stranded wire, silk covered litz wire, taped litz wire and profiled litz wire.

Fast delivery within 5 days.

2-year quatlity assurance



Characteristics
Technical requests
Test Results
Conductor diameter(mm)
0.04±0.002
0.038
0.040
Overall conductor diameter(mm)
0.048-0.076
0.049
0.053
No. Of strands
420
Maximum outer diameter(mm)
2.17
1.17
1.23
Pitch(mm)
27±3

Maximum Resistance(Ω/m 20℃)
0.03731
0.0332
0.0331
Minimum Breakdown Voltage(V)
1100
2800
3100
Solderability
390±5℃, 9s
Pinhole(faults/6m)
Max. 41
6
4
