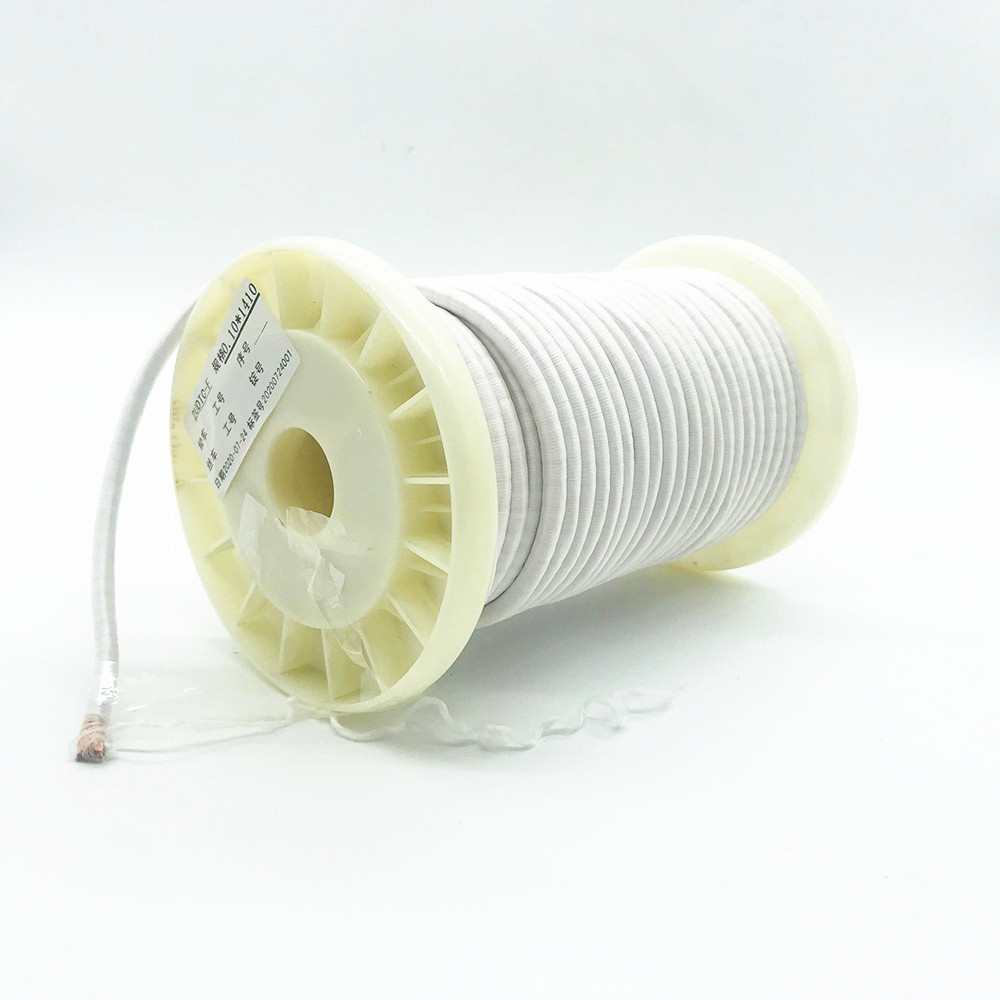

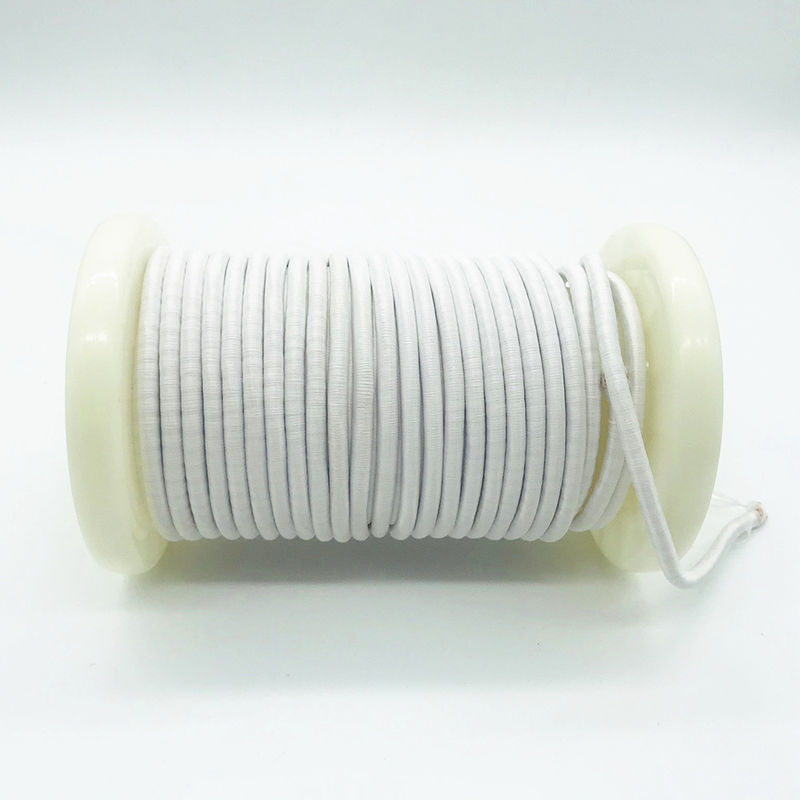

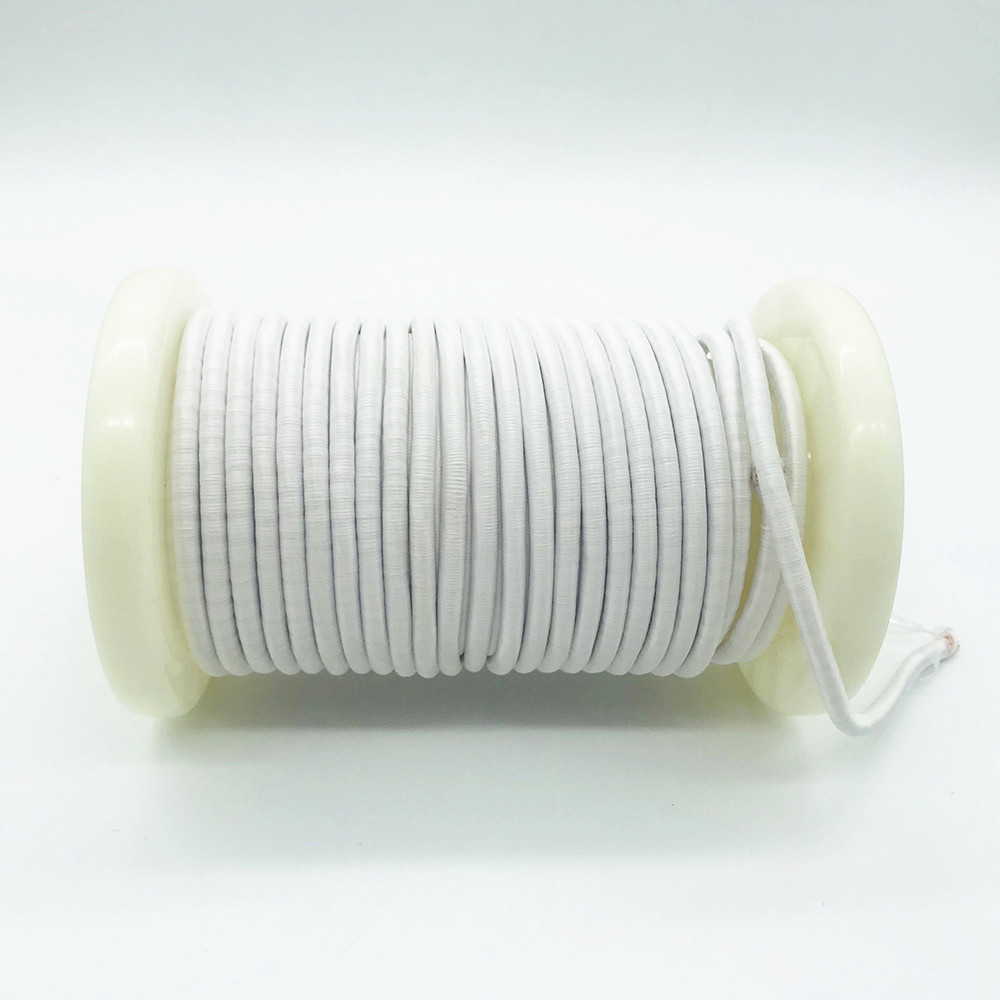

0.05mm x 660 Strands Silk Covered Litz Wire USTC Copper Litz Wire

Basic Information

Place of Origin:	China
Brand Name:	Ruiyuan
Certification:	UL/ISO9001/ISO14001/RoHS/Reach
Model Number:	0.05*660

Minimum Order Quantity:	20kg
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	2-15 days
Payment Terms:	Negotiation
Supply Ability:	200 Ton/Tons per Month

Get Best Price Contact Now

Detail Information

Product Name:	Silk Covered Litz Wire	No. Of Strands:	660
Single Wire Diameter:	0.05mm	Voltage:	1500V Min.
Thermal Grade:	155
Highlight:	660 Strands Litz Magnet Wire , 0.1mm Litz Magnet Wire , 0.1mm Litz Magnet Winding Wire

Product Description

0.1mm x 660 Strands Silk Covered Lize Wire Twist Copper Enameled Wire For Winding

Litz wire employs a stranded wire with individually insulated conductors (forming a bundle). The covering with silk can improve the winding efficiency, especially at high speed.

Test report: 0.05mm x 660 strands	Standard	1	2
Single wire diameter	0.055-0.069mm	0.058mm	0.061mm
Overall diameter	Max. 2.41mm	1.85mm	1.92mm
Pitch	40±3	√	√
Max resistance(Ω/Km at 20℃)	Max. 0.01552	0.01379	0.01381
Mini breakdown voltage	Min.950	2300	2400
Max pin holes fault/6m	Max.103	18	15

0.05mm x 660 Strands Silk Covered Litz Wire USTC Copper Litz Wire 0
