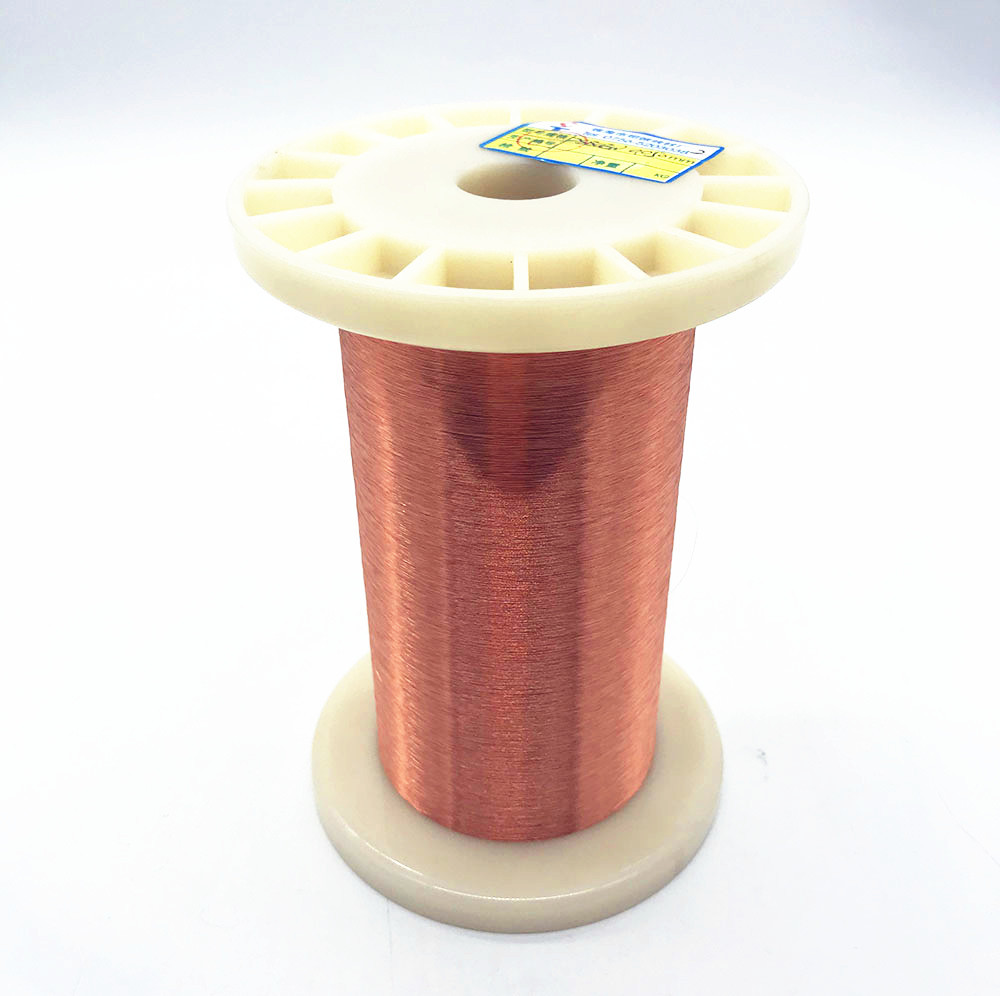

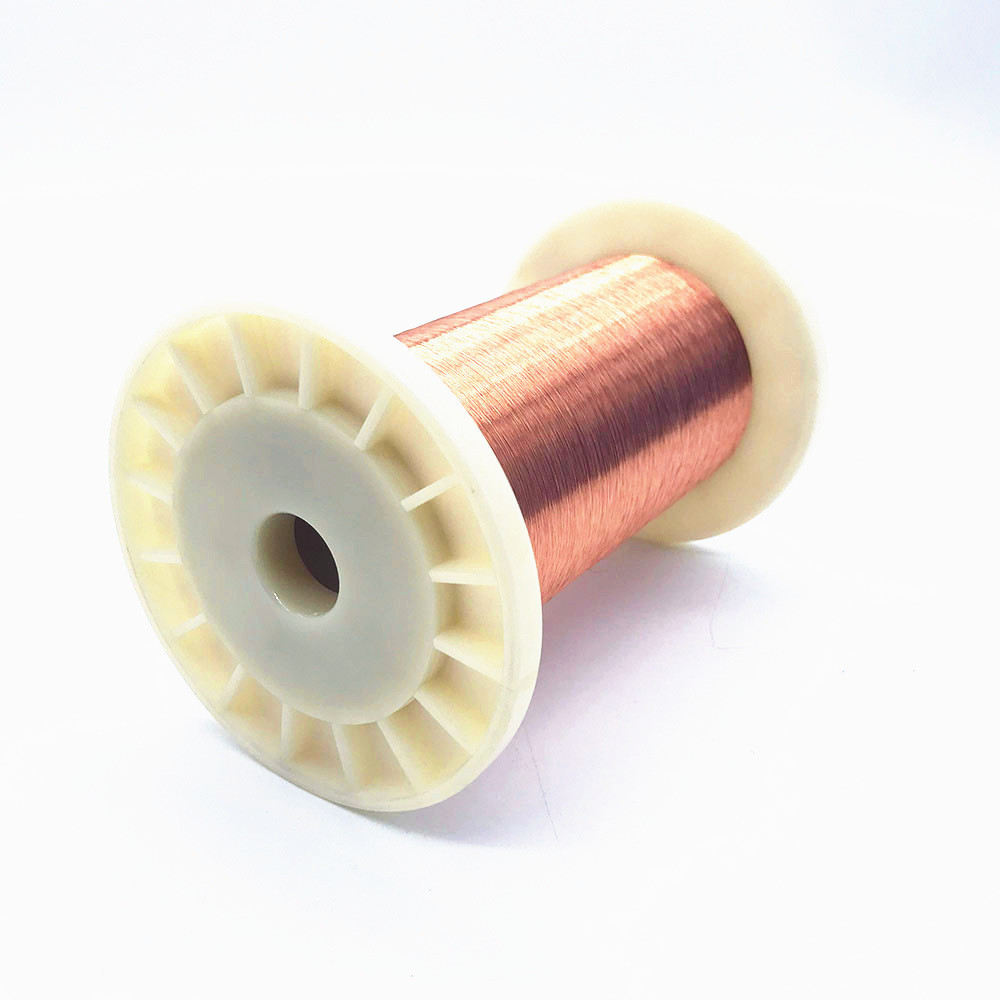

155 Class UEW155 0.032mm Magnet Enameled Copper Wire

Basic Information
Place of Origin: China
Brand Name: Ruiyuan
Certification: UL/ISO9001/ISO14001/RoHS/Reach
Model Number: 0.032mm
Minimum Order Quantity: 20 Kilogram/Kilograms
Price: Negotiation
Packaging Details: Carton
Delivery Time: 2-15 days
Payment Terms: L/C, T/T
Supply Ability: 200 Ton/Tons per Month
Detail Information
Product Name: Enameled Copper Wire Diameter: 0.032mm
Insulation: UEW Thermal Class: 155
Type: Solid Port: Tianjin
High Light:

Magnet Enameled Copper Wire

,

0.032mm Enameled Copper Wire

,

UEW155 Enamelled Winding Wire


Product Description

UEW155 0.032mm Magnet Wire Ultra Thin Enameled Copper Wire For Watch

The conductor is the basic material of the enameled wire. Commonly used materials for conductors are copper, aluminum and other alloy materials. Usually the resistance in an electronic component is determined by the conductor. The cross-sectional area and length of the conductor affect the resistance.The type of insulating film: The insulating film is divided into single film and heavy film. Single film includes UEW, PEW, EIWHE AIW etc. Heavy film refers to an additional coating of nylon or self-adhesive paint on a single film.Magnet wire has excellent mechanical, electrical and chemical performance, especially in high current output, heat resistance and corrosion resisitance.t is mainly used in high-voltage transformers, electric machines, generator, etc. A special type of enamelled wire is self bonding or adelaide enameleld wire.



We are one of the pioneers in producing ultra-fine enameled wires below 0.03mm in China. Our R & D team has 20 years of market experience.We have achieved the goal of "zero pinholes after stretching" for ten years. In 2019, our finest diameter is 0.011mm,and mass production has been achieved.When the displays return the transformer industry, we are the No.1 Chinese brand with ashare of cake.We rival the internationally renowned enameled wire brands for production,technology, raw materials. We surpass them in terms of "service, quick response"; 30% lower "price" is our advantage. More and more well-known customers choose us as suppliers-Philips, Bosch, Panasonic, Samsung ...



Advantages Of Enameled Copper Wire

a) High resistance to heat shock.

b) High temperature.

c) Good performance in cut-through.

d) Suitable for high-speed automated routing.

e) Able to be direct weld, with no pinhole.

f) Resistive to high frequency, wearing, refrigerants and electronics corona.

g) High breakdown voltage, small dielectric loss angle.

h) Environment-friendly.







Specification

Characteristics
Technical requests
Test Results
Conclusion
Sample 1
Sample 2
Surface
Good

OK
OK
OK
Bare Wire Diameter
0.032±
0.001
0.032
0.032
OK
0.001
Coating Thickness
≥ 0.005 mm
0.009
0.008
OK
Overall Diameter
≤ 0.042 mm
0.041
0.04
OK
Conductor Resistance
≤ 22.843 Ω/m
22.032
22.076
OK
Elongation
≥ 10 %
14
15
OK
Breakdown Voltage
≥ 275 V
1456
1312
OK
Pinhole Test
≤ 5 faults/5m
0
0
OK
Continuity
----
----
----
----
Test Items
Technical Requests
Resulat


Adhesive
Coating layer is good
OK


Cut-through
230℃ 2min no breakdown
OK


Heat Shock
200± 5℃/30min no crack
OK


Solder Ability
390± 5℃ 2Sec Smooth
OK


Solvent Resistance
No blister, no expansion, no shed
OK
