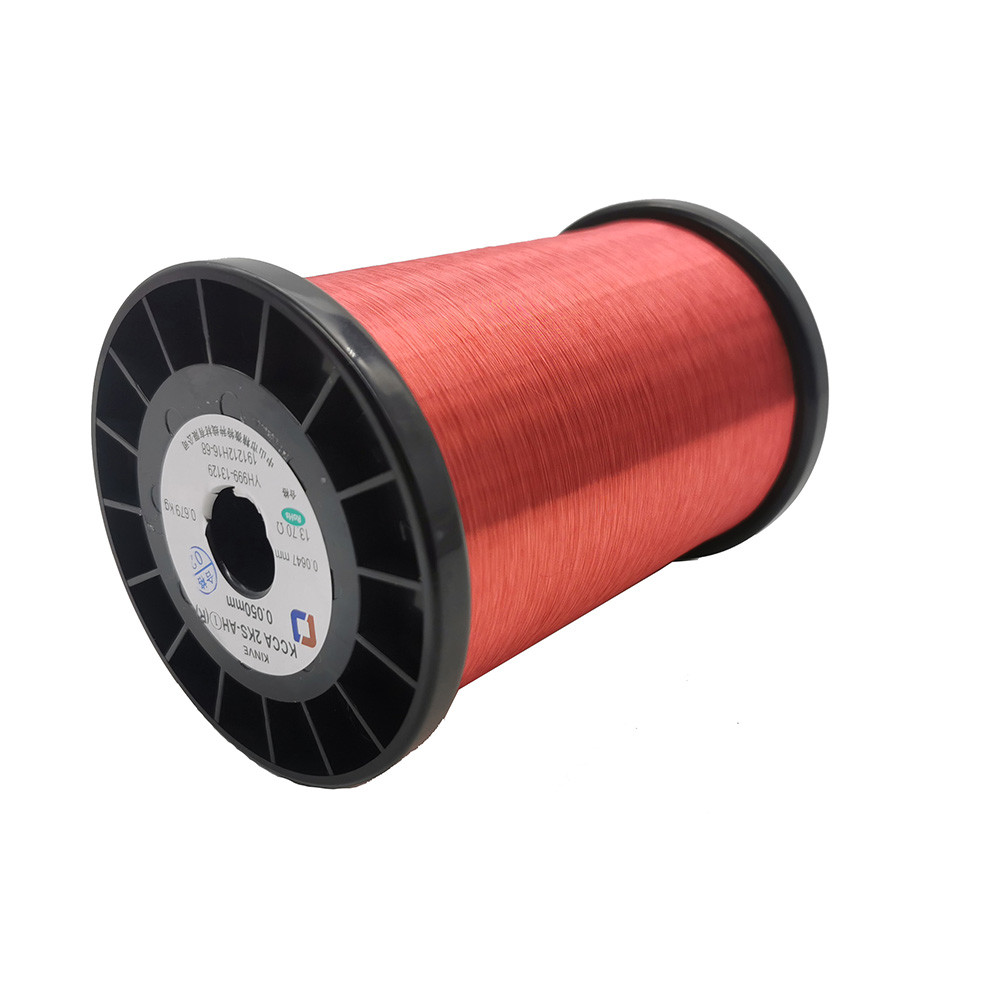

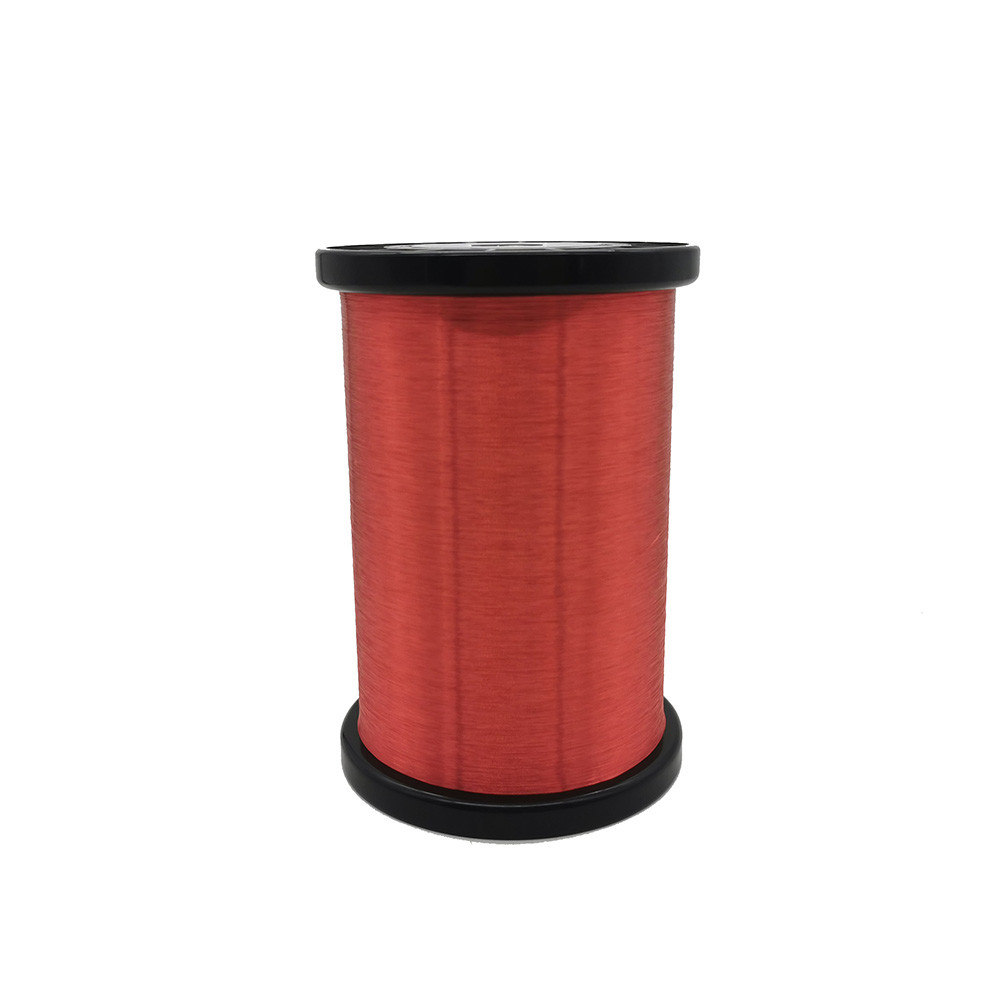

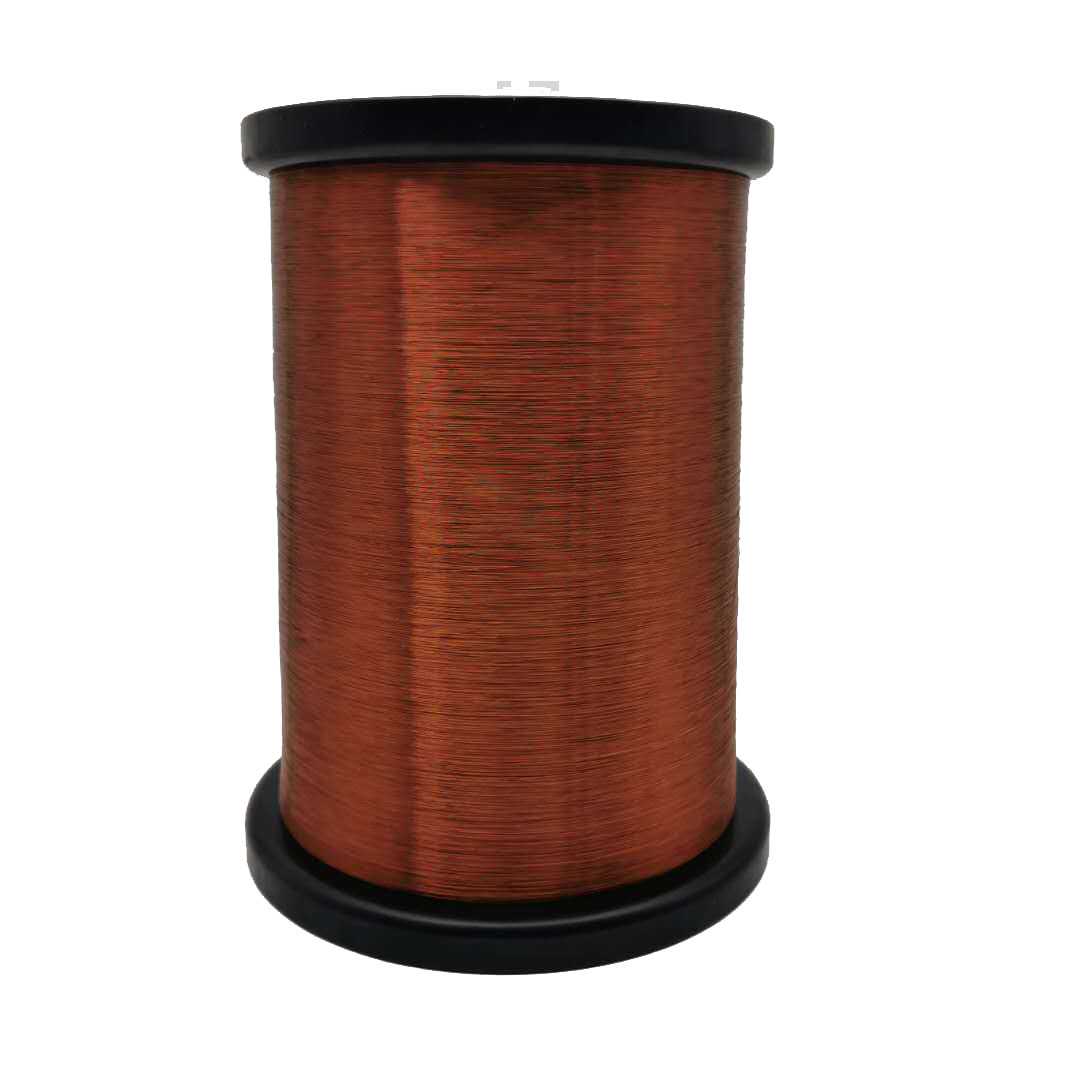

Solid AWG 50 0.025mm Voice Coil Enamelled Copper Wire

Basic Information
Place of Origin: China
Brand Name: Rvyuan
Certification: UL/ISO9001/ISO14001/RoHS/Reach
Model Number: 0.025mm
Minimum Order Quantity: 20 Kilogram/Kilograms
Price: Negotiation
Packaging Details: Carton
Delivery Time: 2-15 days
Payment Terms: Negotiation
Supply Ability: 200 Ton/Tons per Month
Detail Information
Conductor Material: Copper Conductor Type: Solid
Thermal Class: 155 Insulation: UEW
Diameter: 0.025mm Port: Tianjin
High Light:

Voice Coil Enamelled Copper Wire

,

AWG 50 Enamelled Copper Wire

,

0.025mm Ultra Fine Magnet Wire


Product Description

AWG 50 0.025mm Ultra Fine Self Bonding Enameled Magnet Wire CCA wire For Voice Coil

CCA is an electrical conductor composed of an inner aluminium core and outer copper cladding,The primary applications of this conductor revolve around weight reduction requirements. These applications include high-quality coils, such as the voice coils in headphones or portable loudspeakers; high frequency coaxial applications, such as RF antennas and cable television distribution cables; and power cables.

FEATRURES

Light weight. Only 50% of copper at the same length

Solderability

Good ductility and bending strength

High fidelity sound quality

APPLICATIONS

Micro voice coil speakers

Microphones,

buzzer

HIFI stereos

Item Polyester Polyurethane
Insulation type QA/UEW QA/PEW
Thermal rating B(130)/F(155)/H(180) B(130)/F(155)/H(180)
Enameled thickness 1 grade/2 grade 1 grade/2 grade
Conductor CCA CCA
Bobbin PT4/PT10/PT25/PT30 PT4/PT10/PT25/PT30
