High Frequency Copper Litz Wire Silk Covered Enameled 0.3mm * 170 Strands

Basic Information
Place of Origin: China
Brand Name: Rvyuan
Certification: UL/ROHS/ICE/ISO9001/ISO14001
Model Number: 0.3mm * 170
Minimum Order Quantity: 20 Kilogram/Kilograms
Price: Negotiation
Packaging Details: Carton
Delivery Time: 10-15 workding days
Payment Terms: L/C, T/T
Supply Ability: 200 Ton/Tons per Month
Detail Information
Type: Insulated Insulation Material: UEW/Ployester
Breakdown Voltage: 2700V Thermal Class: 155
Strands: 640 Twist Pictch: 3-70
High Light:

served litz wire

,

rectangular litz wire


Product Description

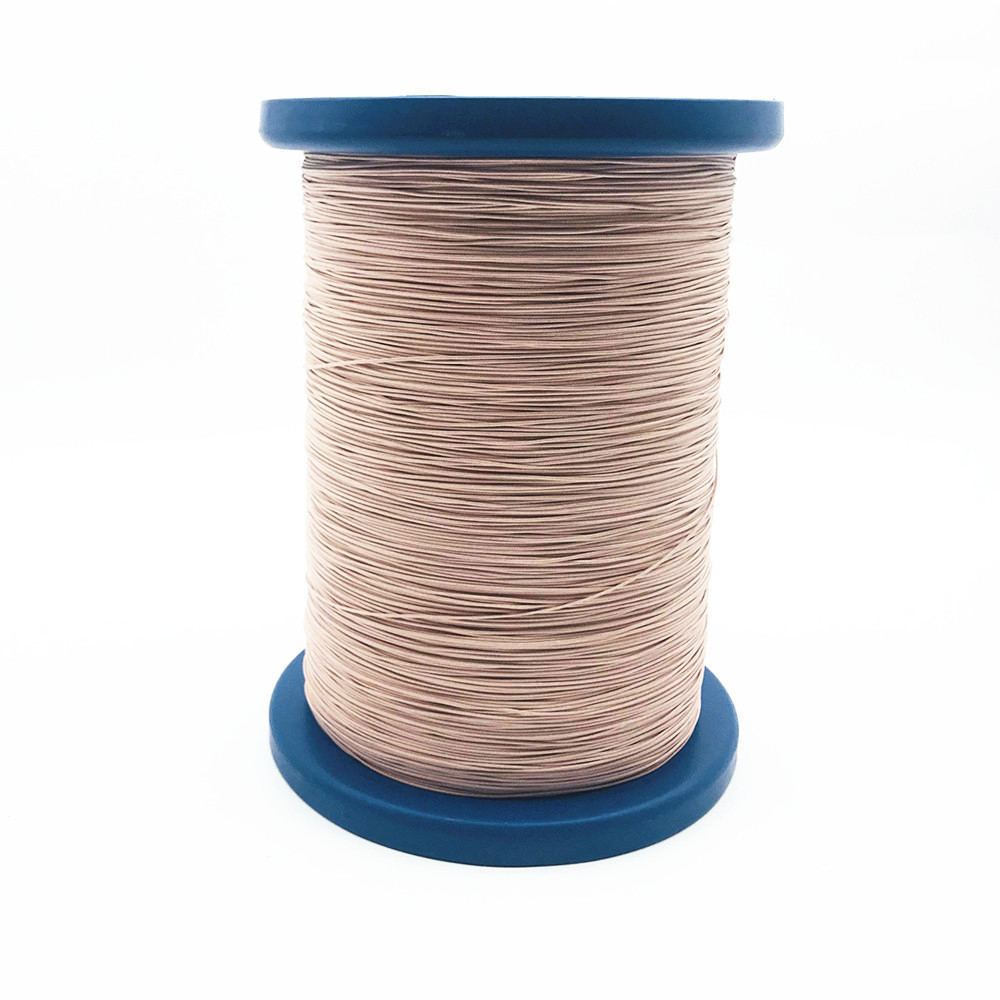

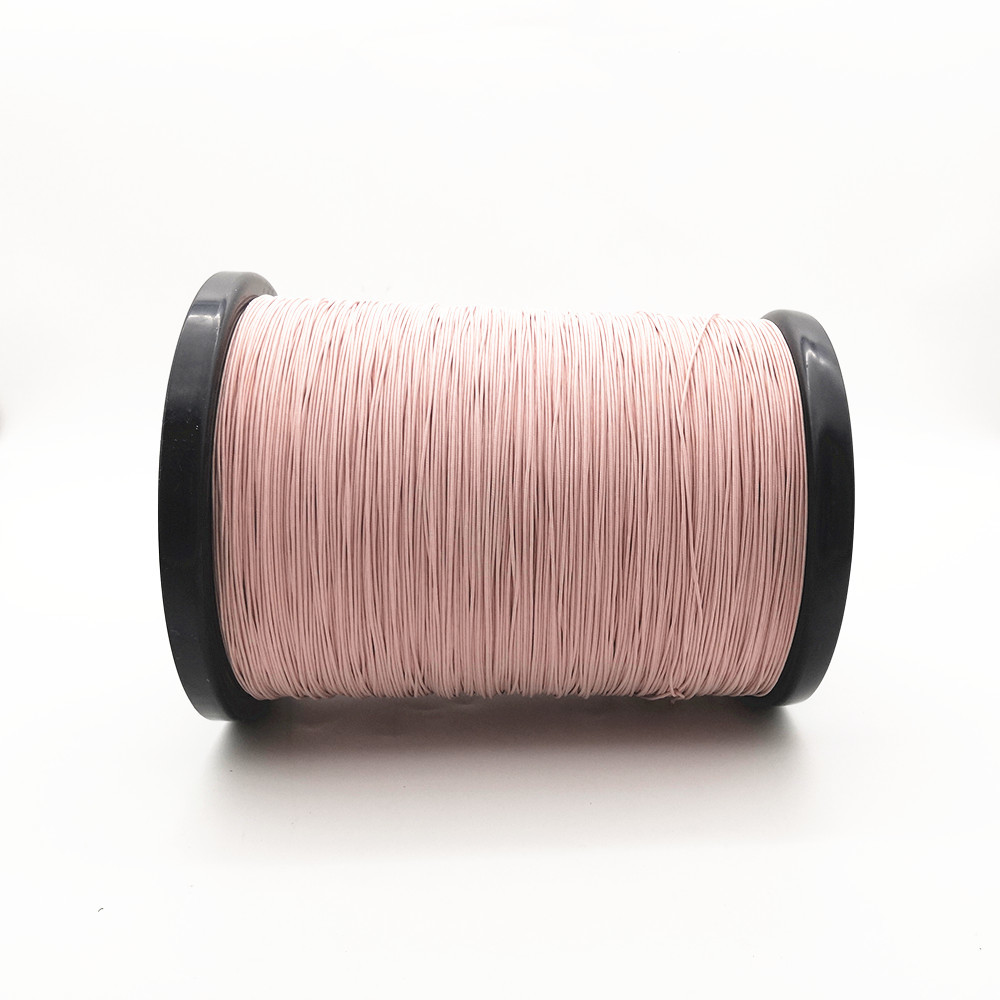

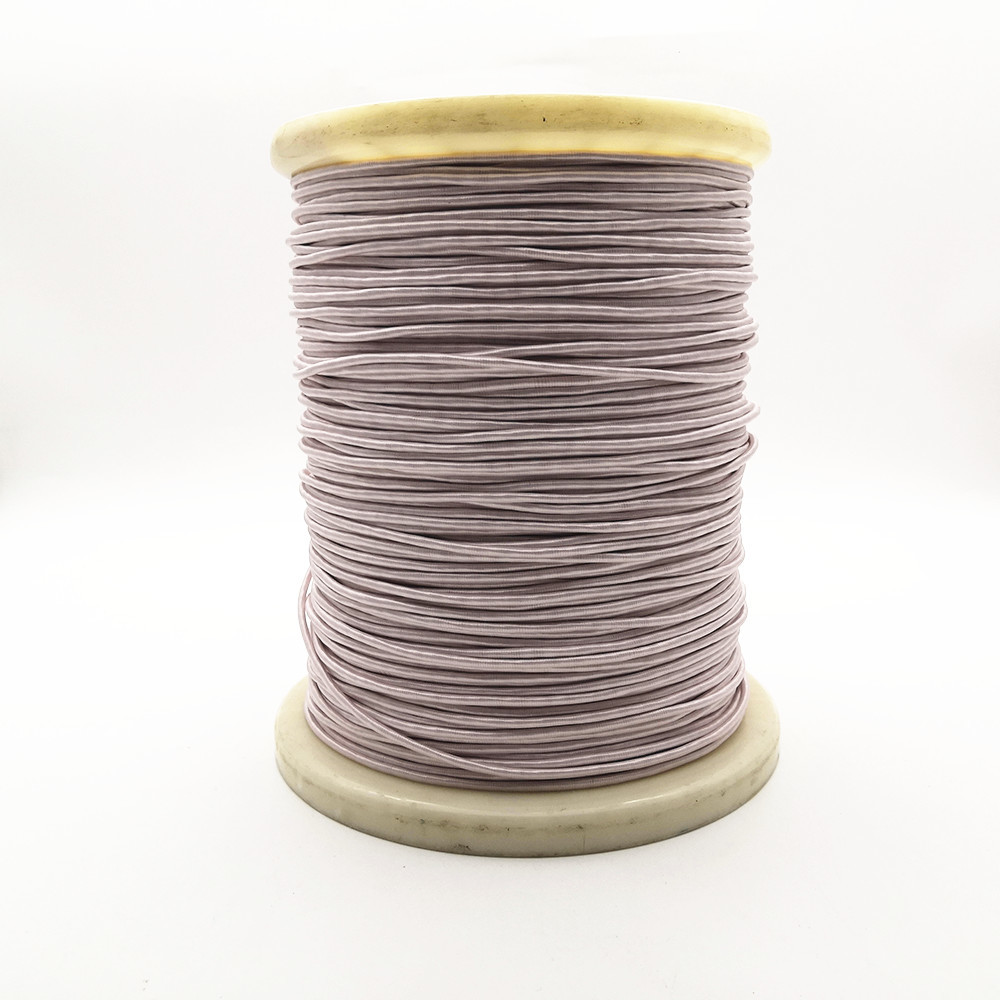

0.3MM * 170 STRANDS HIGH FREQUENCY COPPER LITZ WIRE SILK COVERED ENAMELED COPPER LITZ WIRE

What is USTC wire? It is insulation wire covered with one layer or multi layer insulating fiber (nylon, polyester fiber, natural silk and adhesive silk) on the surface of single enameled wire or stranded wire.USTC wire is a special type of wire used in electronics. The wire is designed to reduce the skin effect and proximity effect losses in conductors. It consists of many thin wires, individually coated with an insulating film and twisted or woven together, following a carefully prescribed pattern often involving several levels (groups of twisted wires are twisted together, etc.).The size range we can make is 0.03-0.8mm, and strands number is 2-4000.







Characteristics

Technical requests

Test Results

Conclusion

1

Inner diameter

0.15±0.003 mm

0.15mm

OK

2

Thickness of coating

0.012mm

0.065

OK

3

Outer diameter

0.177mm

0.163

OK

4

Twist direction

S/Z

S

OK

5

Strands

640

640

OK

6

Twist Pitch

20.5±3 mm

20.6

OK

7

Breakdown Voltage

1300V

2700V

OK

8

Conductor Resistance

1.66Ω/km

1.34

OK

9

Solderability

YES

YES

OK

10

Pinhole

640PCS/5m

17pcs

OK

Remark:



The product meet the requirement of RoHS

Conclusion:

Approved
