Awg38/1500 High Frequency Silk Covered Litz Wire Super Thin Enameled Coated

Basic Information
Place of Origin: China
Brand Name: Rvyuan
Certification: UL/ROHS/ICE/ISO9001/ISO14001
Model Number: AWG38
Minimum Order Quantity: 20 Kilogram/Kilograms
Price: Negotiation
Packaging Details: Carton
Delivery Time: 2-15 days
Payment Terms: L/C, T/T
Supply Ability: 200 Ton/Tons per Month
Detail Information
Conductor Material: Copper Insulation Material: Enameled
Voltage: 1000v Type: 0.1mmX1500
Feature: Silk Covered Solderability: Yes
High Light:

served litz wire

,

rectangular litz wire


Product Description

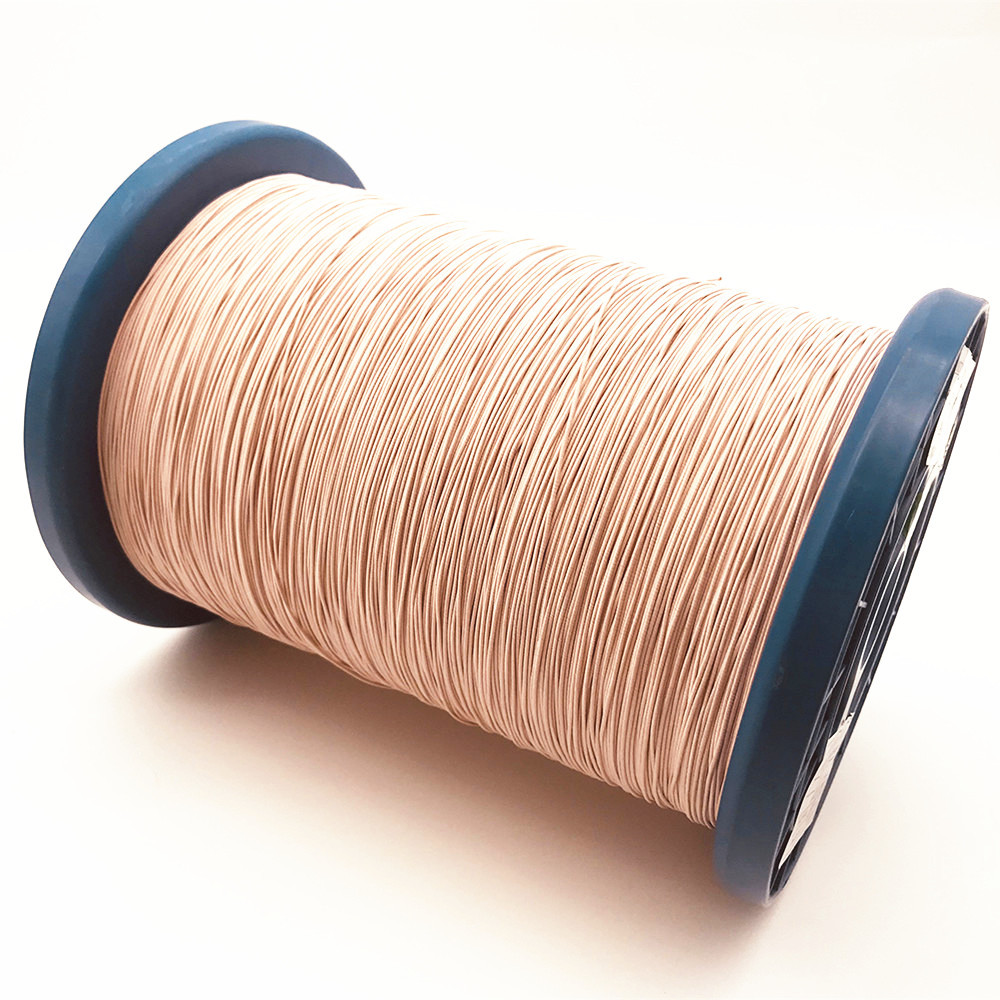

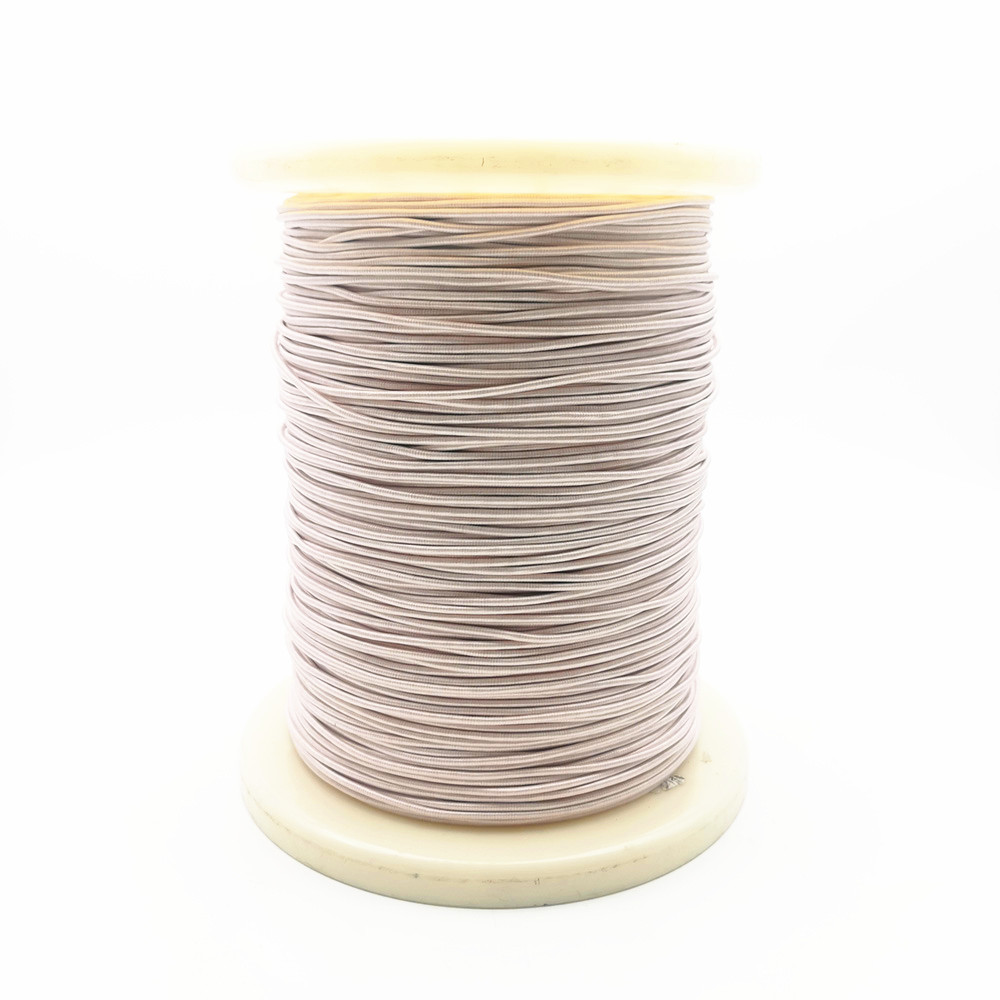

AWG38/1500 HIGH FREQUENCY SILK COVERED LITZ WIRE SUPER THIN ENAMELED COATED COPPER LITZ WIRE

Litz wire employs a stranded wire with individually insulated conductors (forming abundle). Each thin conductor is less than a skin-depth, so an individual strand does not suffer an appreciable skin effect loss.The strands must be insulated from each other—otherwise all the wires in the bundle would short together, behave like a singlelarge wire, and still have skin effectproblems.Furthermore, the strands cannot occupy the same radial position in the bundleover long distances: the electromagnetic effects that cause the skin effect would still disrupt conduction. The weaving or twisting pattern of the wires in the bundle is designed so that the individual strands are on the outside of the bundle for a distance (where the EM field changes are smaller and the strand sees low resistance), and are inside for a distance (where the EM field changes are the strongest and the resistance is higher). If each strand has a comparable impedance, current is distributed equally among every strand within the cable. This allows the interior of the litz wire to contribute to the overall conductivityof the bundle.





Characteristics
Technical requests
Test Results
Conclusion



Sample
0.0415
1
Surface
Good
OK
OK
2
Breakdown Voltage
≥ 1.1 KV
1.5
OK
3
Enamel Continuity
≤ 155 hole/6m
90
OK
4
Outer diameter
0.107-0.125
0.110-0.114
OK
5
Inner diameter
0.10±0.003 mm
0.098-0.10
OK
6
Conductor Resistance (20℃ Ω/m)
≤ 0.01587
0.01437
OK
7
Pitch
78mm±2
OK
OK
8
Direction
————

OK
9
Solderability
380± 5℃ 30 Sec Smooth
OK
OK
Remark

Conclusion

Approved
