Solderable Ultra Fine Enameled Copper Wire Self Bonding Enameled Magnet Wire For Voice Coil

Basic Information
Place of Origin: China
Brand Name: Rvyuan
Certification: UL/ROHS/ICE/ISO9001/ISO14001
Model Number: 0.012 - 0.8mm
Minimum Order Quantity: 10 Kilogram/Kilograms
Price: Negotiation
Packaging Details: Carton
Delivery Time: 2-15 days
Payment Terms: Negotiation
Supply Ability: 200 Ton/Tons per Month
Contact Now
Detail Information
Type: Insulated Conductor Material: Copper
Insulation Material: Enameled Thermal Class: 180/200/220
Solderability: Yes Bonding Method: Alcohol / Hot Air
High Light:

self bonding copper wire

,

enamelled winding wire


Product Description

UEW SUPER FINE COPPER WIRE SELF BONDING ENAMELED MAGNET WIRE FOR VOICE COIL

We are one of the pioneers in producing ultra-fine enameled wires below 0.03mm in China. Our R & D team has 20 years of marketexperience.We have achieved the goal of "zero pinholes after stretching" for ten years. In 2019, our finest diameter is 0.011mm,and mass production has been achieved.When the displays return the transformer industry, we are the No.1 Chinese brand with ashare of cake.We rival the internationally renowned enameled wire brands for production, technology, raw materialsWe surpass them in terms of "service, quick response"; 30% lower "price" is our advantage. More and more well-known customers choose us as suppliers-Philips, Bosch, Panasonic, Samsung ...

We have a long history of producing self-adhesive lines. Since the beginning of our factory, we have started to develop and produce self-adhesive lines. Because of our strong R & D strength, our products have a wide range of applications.We have a full range of self-adhesive lines and a wide range of applications.Thermal class is155C, 180 C, 200 C, 220 C. Conductor material includes enameled round wire, enameled copper-clad aluminum wire

APPLICATION

Speaker coil, such as microphone, earphone, speaker, hearing aid,Bluetooth audio, speakers, etc.;High-temperature voice coils, such as car audio, home theater, high-power speakers, etc. High-sensitivity voice coils, such as headphone speakers and high-temperature-resistant voice coils;micro vibration motor,such as focus-driving,(coin-type, coreless-type) and other electrical and electronics components, such as inductor, watch coil, coin machine coil, buzzer;magnetic head, IC card.

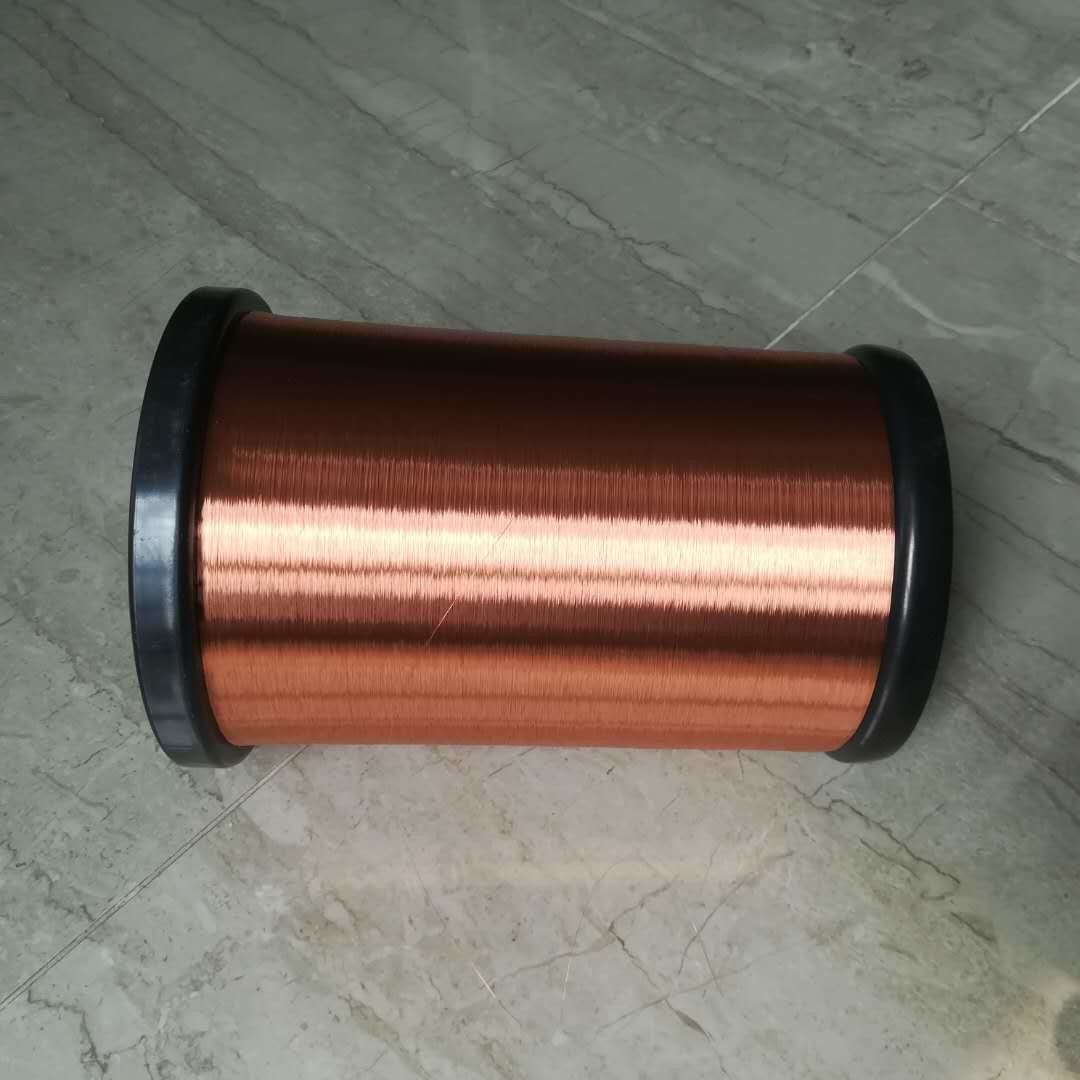

Solderable Ultra Fine Enameled Copper Wire Self Bonding Enameled Magnet Wire For Voice Coil

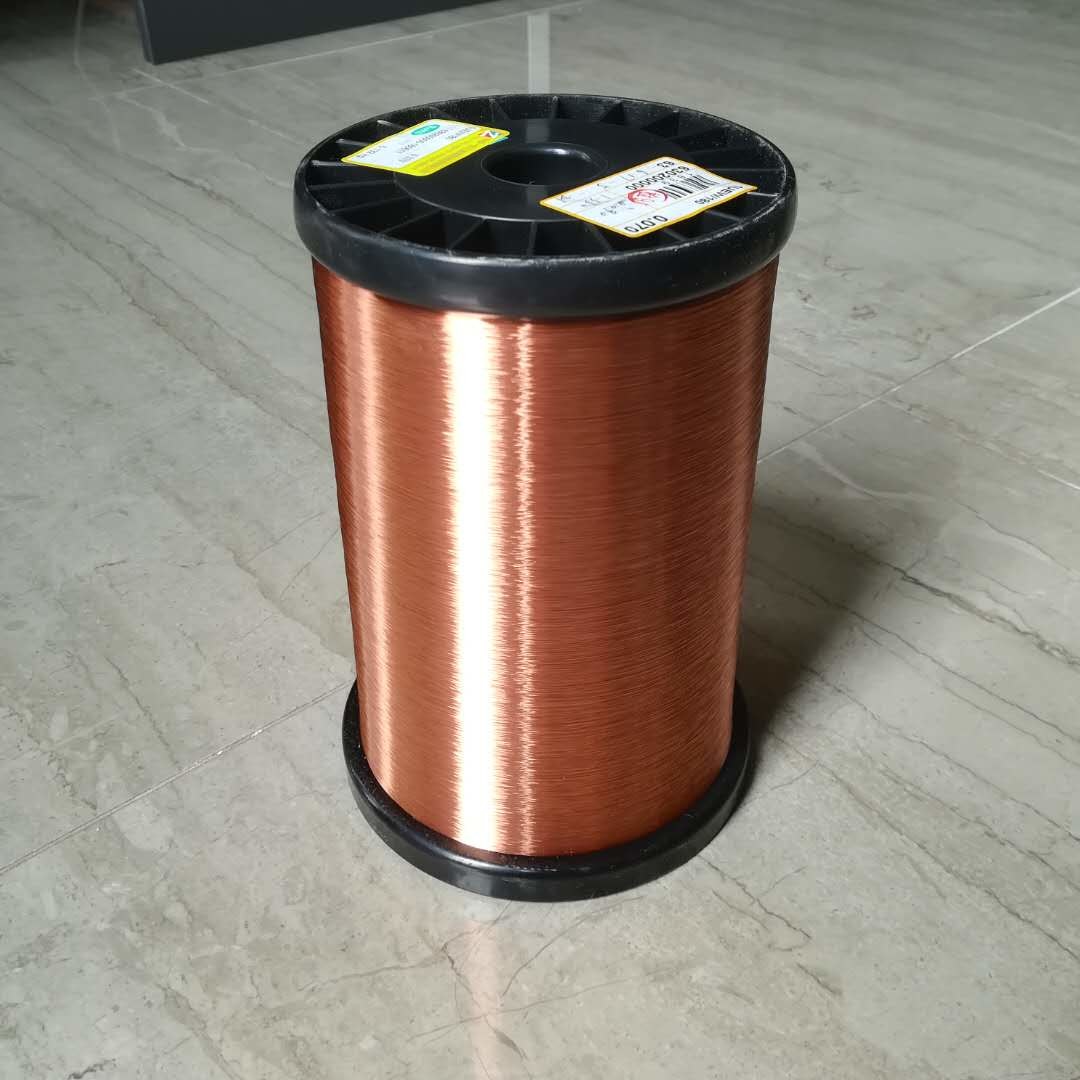

Solderable Ultra Fine Enameled Copper Wire Self Bonding Enameled Magnet Wire For Voice Coil

Self-bonging Enameled Wire for Speaker (voice coil)

Description

Designation

Thermal Grade(℃)

Heating temperature(℃)

Diameter(mm)

Feature

Polyester
Enameled
Wire

PEKVW

155

180~200

0.05~0.60

●Thermal grade 155
●Solvent bonding thermosetting type,
high bonding strength

Polyimide
Enameled
Wire

EIKVW

200

180~200

0.05~0.60

●Thermal grade 180
●Solvent bonding thermosetting type,
high bonding strength

Polyamideimide
Enameled
Wire

AIKVW

220

180~200

0.06~0.60

●Thermal grade 200
●Solvent bonding thermosetting type,
high bonding strength

Polyester
Enameled
CCA Wire

PEKVCCAW

155

170~200

0.05~0.60

●Thermal grade 155
●Solvent bonding thermosetting type,
high bonding strength
●CCA conductor,light weight&high sensitivity

Polyimide
Enameled
CCA Wire

EIKVCCAW

180

170~200

0.05~0.60

●Thermal grade 180
●Solvent bonding thermosetting type,
high bonding strength
●CCA conductor,light weight&high sensitivity

Solderable Ultra Fine Enameled Copper Wire Self Bonding Enameled Magnet Wire For Voice Coil

Solderable Ultra Fine Enameled Copper Wire Self Bonding Enameled Magnet Wire For Voice Coil

Solderable Ultra Fine Enameled Copper Wire Self Bonding Enameled Magnet Wire For Voice Coil

Solderable Ultra Fine Enameled Copper Wire Self Bonding Enameled Magnet Wire For Voice Coil

Solderable Ultra Fine Enameled Copper Wire Self Bonding Enameled Magnet Wire For Voice Coil

Solderable Ultra Fine Enameled Copper Wire Self Bonding Enameled Magnet Wire For Voice Coil
