| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | UL/RoHS/ISO 9001 |
| Model Number: | 0.3mm x 170 |
| Minimum Order Quantity: | 20 Kilogram/Kilograms |
| Price: | Negotiation |
| Packaging Details: | Carton with pallet |
| Delivery Time: | 5-8 days |
| Supply Ability: | 200 Ton/Tons per Month |
| Breakdown Voltage: | 3KV | Thermal Class: | 155 |
|---|---|---|---|
| Certificate: | UL/SGS | Insulation: | 2UEW |
| Diameter: | 0.326mm | Color: | Natural |
| Strands: | 170 | Conductor Diameter: | 0.3mm |
| High Light: | served litz wire,rectangular litz wire |
||

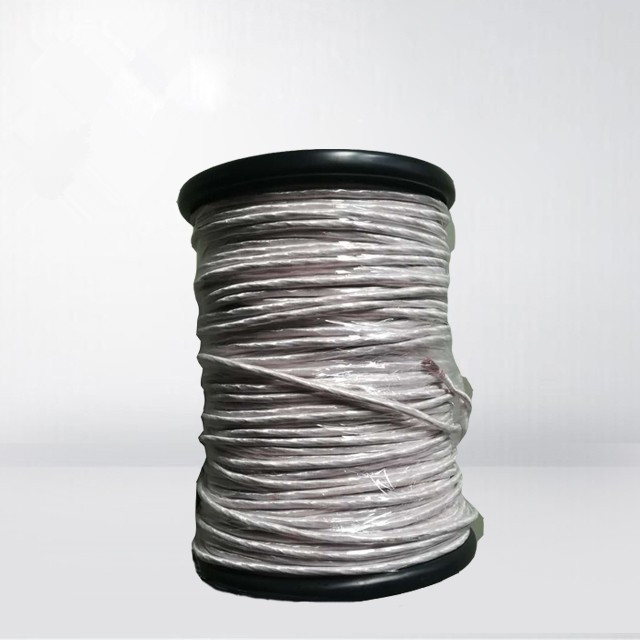

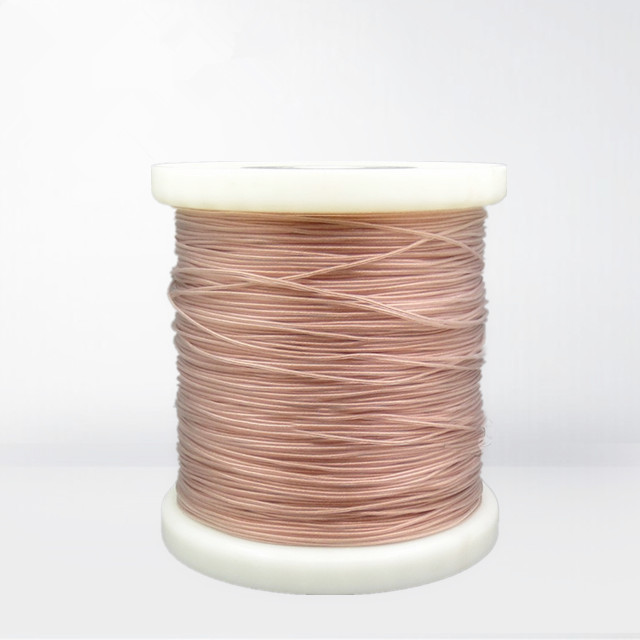

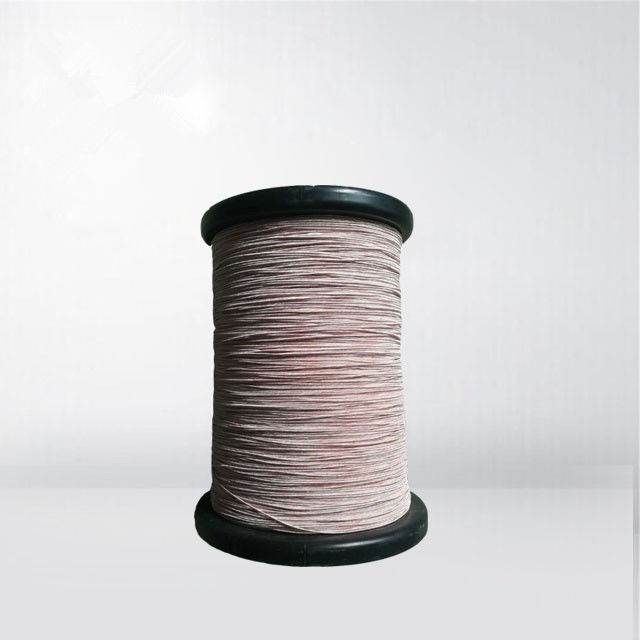

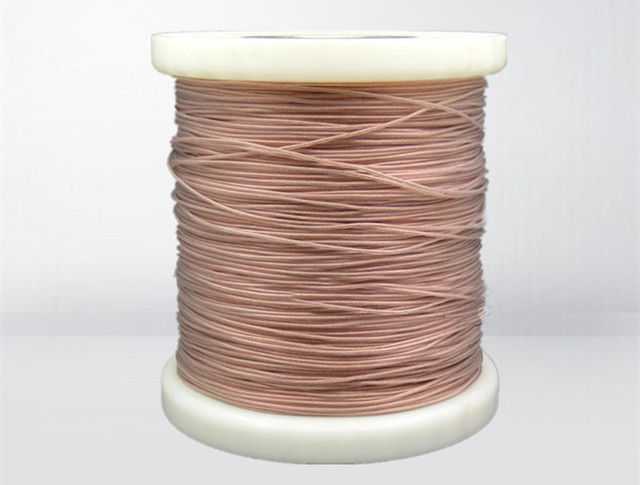

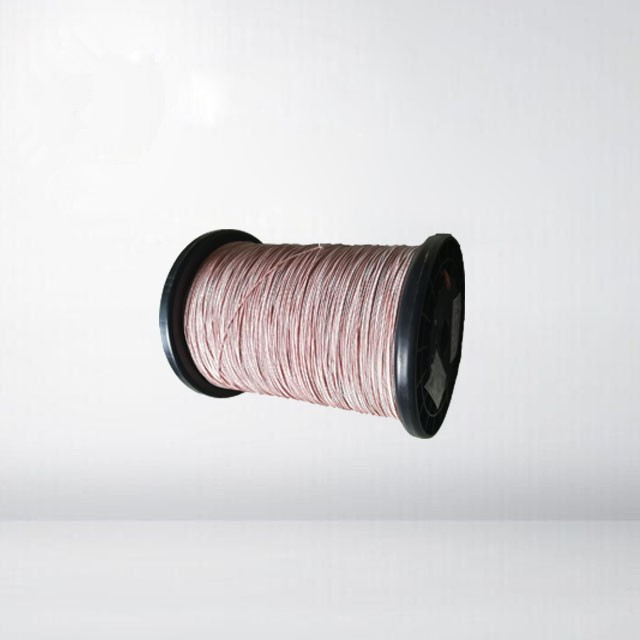

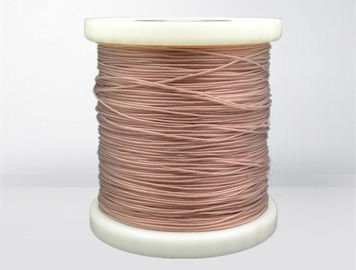

ENAMELED INSULATION HIGH FREQUENCY LITZ WIRE MAGNET WIRE UL CERTIFICATE
High frequency litz wire served with natural silk, polyester or nylon is characterized by an increase in mechanical performance and excellent dimensional stability. The precise serving quality guarantees a high degree of flexibility and prevents splicing dureing the process of cutting the litz wire and therefore allows for optimal contacting. Silk covered litz wire is also called USTC WIRE, which utilizes the insulation of UEW and artificial fiber, the interlayer capacitance will be lower to achieve outstanding performance at high frequency and increasing"Q" value. We also can provide self boinding USTC wire. New design or recommendation according to customer requirements for size, tures, currents, power and environmental parameters. Customers to use automatic line machine, semi-qutomatic machine, cutting coiling, please inform us, so that we can provide the best solution, component methods are divided into two kinds, with glue, without glue.
APPLICATION:
Induction coating hobs
RF transformers
RF transducers
E-Motors
SPECIFICATION:
|
gauge(mm) |
Stranding No. |
Twisting Distance(mm) |
|
0.05+250D |
14 |
2.75 |
|
0. 06+250D |
14-18 |
2.64 |
|
0.06 + 250D |
10 |
3.5 |
|
0.07 + 250D |
36 |
5.3 |
|
0.08+200D |
8 |
2.64 |
|
0.08+250D |
8 |
2.9 |
|
0.08+500D |
10 |
3.5 |
|
0.10-0.14 |
10 or below |
5.68-9.18 |
|
0.10-0.14 |
10-20 |
9.18-11.47 |
|
0.11-0.14 |
30-60 |
15.29-17.00 |
|
0.15-0.20 |
10 or below |
9.18-11.47 |
|
0.15-0.20 |
10-20 |
15.29-17.00 |
|
0.21-0.30 |
10 or below |
11.47-15.29 |
|
0.21-0.30 |
10-20 |
15.29-17.00 |
|
0.31-0.40 |
10 or below |
17.00-22.20 |
|
0.31-0.40 |
10-20 |
22.20-31.57 |
|
0.50 or above |
|
5.68-50.00 |
