Place of Origin: | China |
---|---|
Brand Name: | Rvyuan |
Certification: | IEC/NEMA/JIS/RoHS/ISO |
Model Number: | 0.2 X 320 Model |
Minimum Order Quantity: | Different types with differet MOQ |
Price: | Negotiation |
Packaging Details: | Spool with carton |
Delivery Time: | 2-15 workding days |
Payment Terms: | Negotiation, T/T |
Supply Ability: | 50 tons per month |
Product Name: | USTC Litz Wire | Temperature: | 130/150℃ |
---|---|---|---|
Conductor Type: | Solid | Model: | 0.20*320 |
Application: | Transformer/wireless Charger | Insulation Material: | UEW/Ployester |
Highlight: | served litz wire,rectangular litz wire |

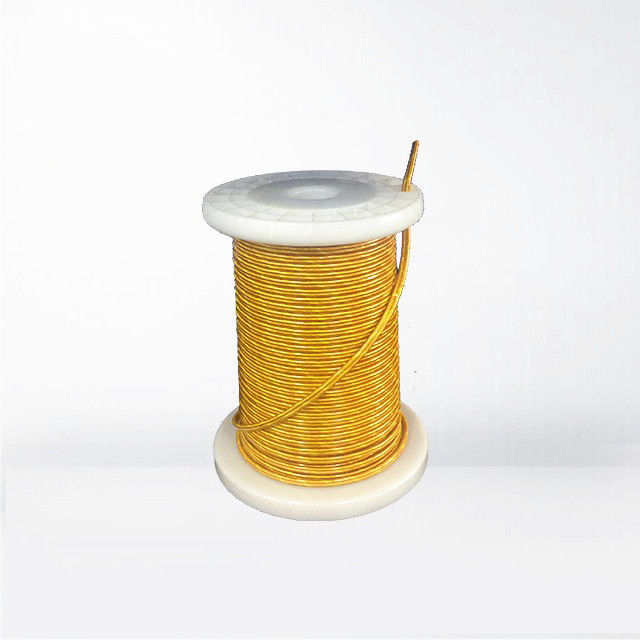

SILK STRANDING HIGH FREQUENCY LITZ WIRE 0.2 X 320 MODEL
High frequency litz wire served with natural silk, polyester or nylon is characterized by an increase in mechanical performance and excellent dimensional stability. The precise serving quality guarantees a high degree of flexibility and prevents splicing during the process of cutting the litz wire and therefore allows for optimal contacting.The size range we can make is 0.03-0.8mm, and strands number is 2-4000.
FEATURES
1. Increased efficiency
2. Mitigation of skin and proximity effect
3. Minimum eddy current losses
4. Lowered operating temperatures
5. Reduced footprint of final product
6. Substantial weight reduction
7. Avoidance of "hot spots"
APPLICATION
1.Induction coating hobs
2.RF transformers
3.RF transducers
4. E-Motors
SPECIFICATION
Gauge(mm) |
Stranding No. |
Twisting Distance(mm) |
0.05+250D |
14 |
2.75 |
0. 06+250D |
14-18 |
2.64 |
0.06 + 250D |
10 |
3.5 |
0.07 + 250D |
36 |
5.3 |
0.08+200D |
8 |
2.64 |
0.08+250D |
8 |
2.9 |
0.08+500D |
10 |
3.5 |
0.10-0.14 |
10 or below |
5.68-9.18 |
0.10-0.14 |
10-20 |
9.18-11.47 |
0.11-0.14 |
30-60 |
15.29-17.00 |
0.15-0.20 |
10 or below |
9.18-11.47 |
0.15-0.20 |
10-20 |
15.29-17.00 |
0.21-0.30 |
10 or below |
11.47-15.29 |
0.21-0.30 |
10-20 |
15.29-17.00 |
0.31-0.40 |
10 or below |
17.00-22.20 |
0.31-0.40 |
10-20 |
22.20-31.57 |
0.50 or above |
|
5.68-50.00 |
