220 0.45×7.5mm Rectangular Copper Wire Polyurethane Insulation For Transformer

Basic Information
Place of Origin: China
Brand Name: Rvyuan
Certification: IEC/NEMA/JIS/RoHS/ISO/UL
Model Number: 0.45*7.5mm
Minimum Order Quantity: 10 Kilogram/Kilograms
Price: Negotiation
Packaging Details: Spool with carton
Delivery Time: 10-15 workding days
Payment Terms: T/T, L/C
Supply Ability: Satisfy your demand
Contact Now
Detail Information
Temperature: 220℃ Width-Thickness Ratio: 1:16
Conductor Thickness: 0.45mm Conductor Width: 7.5mm
Certification: IEC/NEMA/JIS/RoHS/ISO/UL Insulation: Polyurethane
Self Solderable: Yes

Product Description

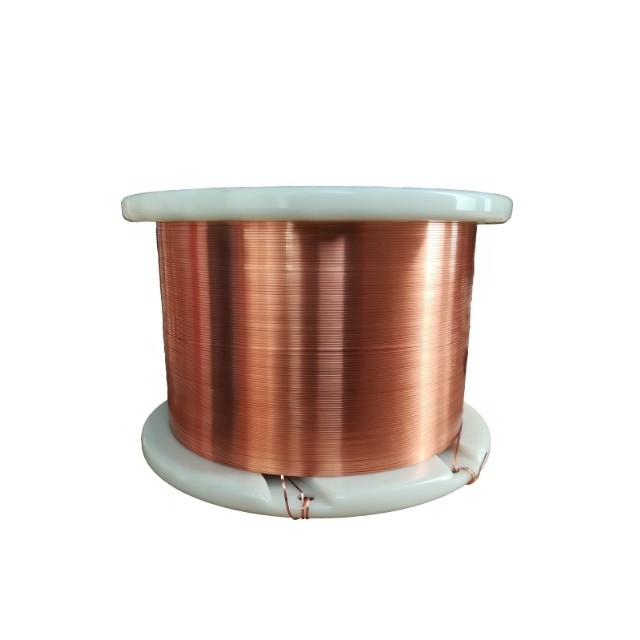

220 0.45×7.5MM RECTANGULAR COPPER WIRE POLYURETHANE INSULATION FOR TRANSFORMER

Rectangular or flat enameled copper wire consists two parts: width and thicness.When we describe the size, it likes thickness x width or width x thickness.Today most popular Notebook computers, wireless charger...and many other 3C products, are ever-possible designing to make its shape and structure become as light, thin, short and small as possible; while this development demanding the stricter characteristics of its coil, also resulting the conventional enamelled copper wire unfitted for the trend. This special demand for smaller-dimension and higher-efficiency makes the fiat-shape coil become the mainstream of the future, in response to this brand new trend, the Company successfully developed the "Enamelled Flat Copper Wire" for the market.

APPLICATION

  • Notebook coil.

  • Coils of printer.

  • Motors of CD driver.

  • Transformer.

  • Wireless charger

220 0.45×7.5mm Rectangular Copper Wire Polyurethane Insulation For Transformer



220 0.45×7.5mm Rectangular Copper Wire Polyurethane Insulation For Transformer















Insulation

Thermal Class

Solder ability

Self-bonding

Size Range

Width(mm)

Thickness(mm)

Ratio

AIWJ

220

x

x

0.155--7.5

0.02-1.8

1.25

EI/AIWJ

220

x

x

0.155--7.5

0.02-1.8

1.25

EI/AIWJ

200

x

x

0.155--7.5

0.02-1.8

1.25

UEWJ

180

0

x

0.155--7.5

0.02-1.8

1.25

EIWJ

180

x

x

0.155--7.5

0.02-1.8

1.25

SEIWJ

180

0

x

0.155--7.5

0.02-1.8

1.25

UEWJ

155

0

x

0.155--7.5

0.02-1.8

1.25

UEWJ

130

0

x

0.155--7.5

0.02-1.8

1.25

EI/SBWJ

180

x

0

0.155--7.5

0.02-1.8

1.25

SEI/SBWJ

180

0

0

0.155--7.5

0.02-1.8

1.25

EI/AI/SBWJ

220

x

0

0.155--7.5

0.02-1.8

1.25

AI/SBWJ

220

x

0

0.155--7.5

0.02-1.8

1.25

UE/SBWJ

180

0

0

0.155--7.5

0.02-1.8

1.25

UE/SBWJ

155

0

0

0.155--7.5

0.02-1.8

1.25

UE/SBWJ

130

0

0

0.155--7.5

0.02-1.8

1.25

Parameter

Class 130

Class 155

Class-180

Class-200

Class220

Class-240

Standards

IEC60317-16 GB/T7095.7

60317-16 GB/T7095.3

60317-28 GB/T7095.4

MW 36 60317-29 BS6811 GB/T7095.6

MW 18 60317-18 GB/T7095.2

MW 20 60317-47 GB/T7095.5

Thermal Class

130°C

155°C

180°C

200°C

120°C

240°C

Enamel Base Coat

Polyester

Modified Polyester

Polyester-Imide

Polyester-Imide

Polyester-formal

Polyimide

Enamel Top Coat







Polyester-Imide





Range of insulation thickness

IEC60317-0-2 G1,0.06-0.11mm G2,0.12-0.17mm

Performance

  1. Excellent bending property 2.High flexibility of the enamel 3.Good resistance to abrasion 4.High mechanical property

1.Excellent bending property 2.High flexibility of the enamel 3.Good resistance to abrasion 4.High mechanical property 5.Higher thermal property

1.High thermal resistance 2.Suitable for windings that are subjected to constantly high temperature and mechanical stress 3.Good chemical resistance1.

1.Excellent thermal resistance 2.Suitable for windings that are subjected to constantly high temperature and mechanical stress 3.Good chemical resistance 4.Good resistance to refrigerant and freon

1.Excellent bending property 2.High flexibility of the enamel 3.Good resistance to abrasion 4.High mechanical property

1.Excellent thermal resistance suitable for any electric equipment

that are constantly exposed to high working temperature 2.Outstanding mechanical and chemical property 3.Good performance against radiation

Application

1.Dry and oil-immersed 2.Electrical equipment

1.Dry and oil-immersed 2.Electrical equipment

1.Windings of high and low voltage DC/AC motor 2.Magnet coil 3.Dry and oil-immersed transformer

1.Windings of high and low voltage DC/AC motor 2.Magnet coil 3.Dry and oil-immersed transformer 4.Automobile coil 5.Train coil

1.Dry and oil-immersed transformer 2.Electrical equipment

1.Windings with service temperature up to 220°C 2.Motor and generator for aviation and marine application 3.Nuclear industry 4.Windings requiring high reliability

220 0.45×7.5mm Rectangular Copper Wire Polyurethane Insulation For Transformer

220 0.45×7.5mm Rectangular Copper Wire Polyurethane Insulation For Transformer

220 0.45×7.5mm Rectangular Copper Wire Polyurethane Insulation For Transformer

220 0.45×7.5mm Rectangular Copper Wire Polyurethane Insulation For Transformer

220 0.45×7.5mm Rectangular Copper Wire Polyurethane Insulation For Transformer

220 0.45×7.5mm Rectangular Copper Wire Polyurethane Insulation For Transformer
