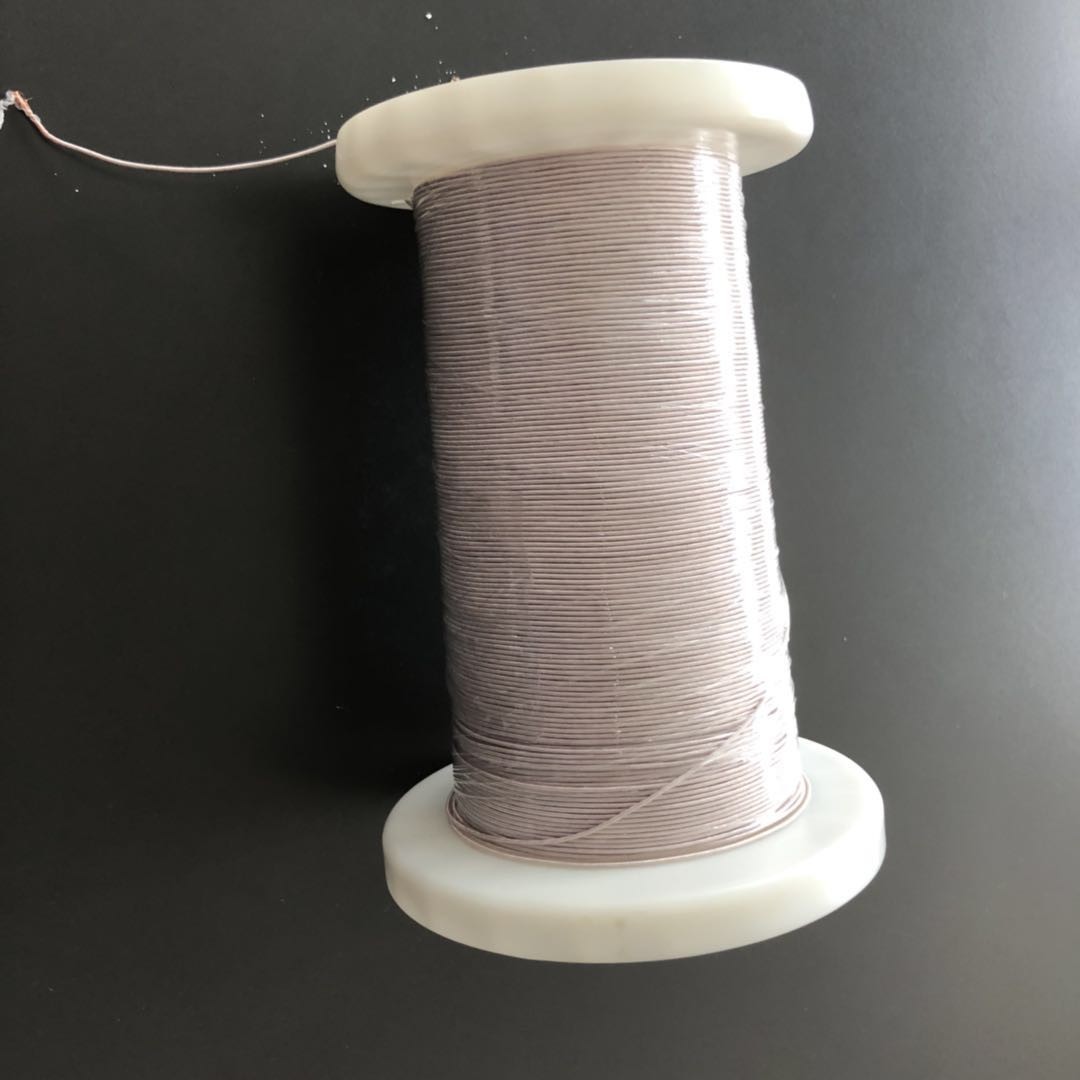

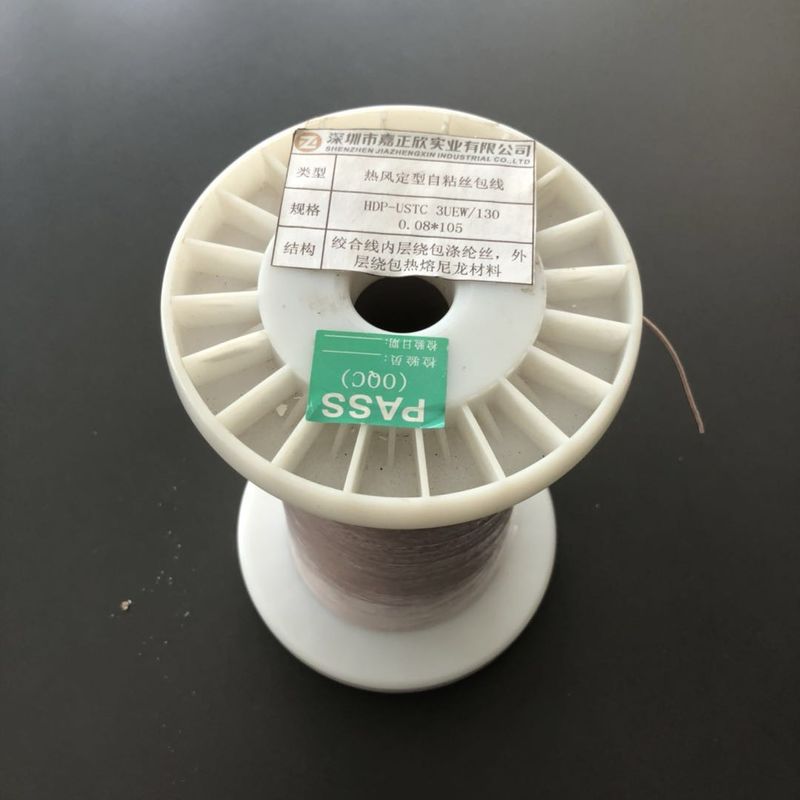

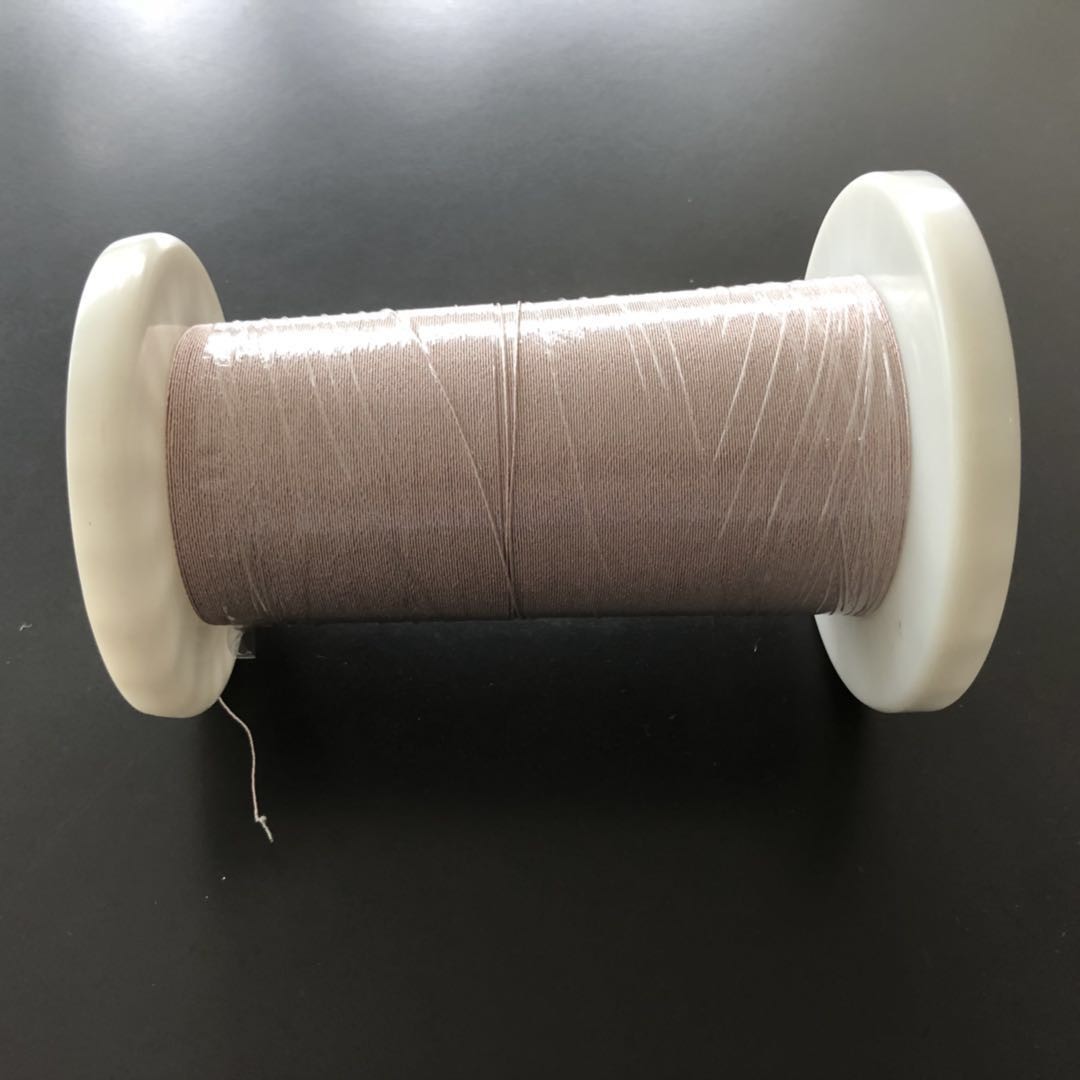

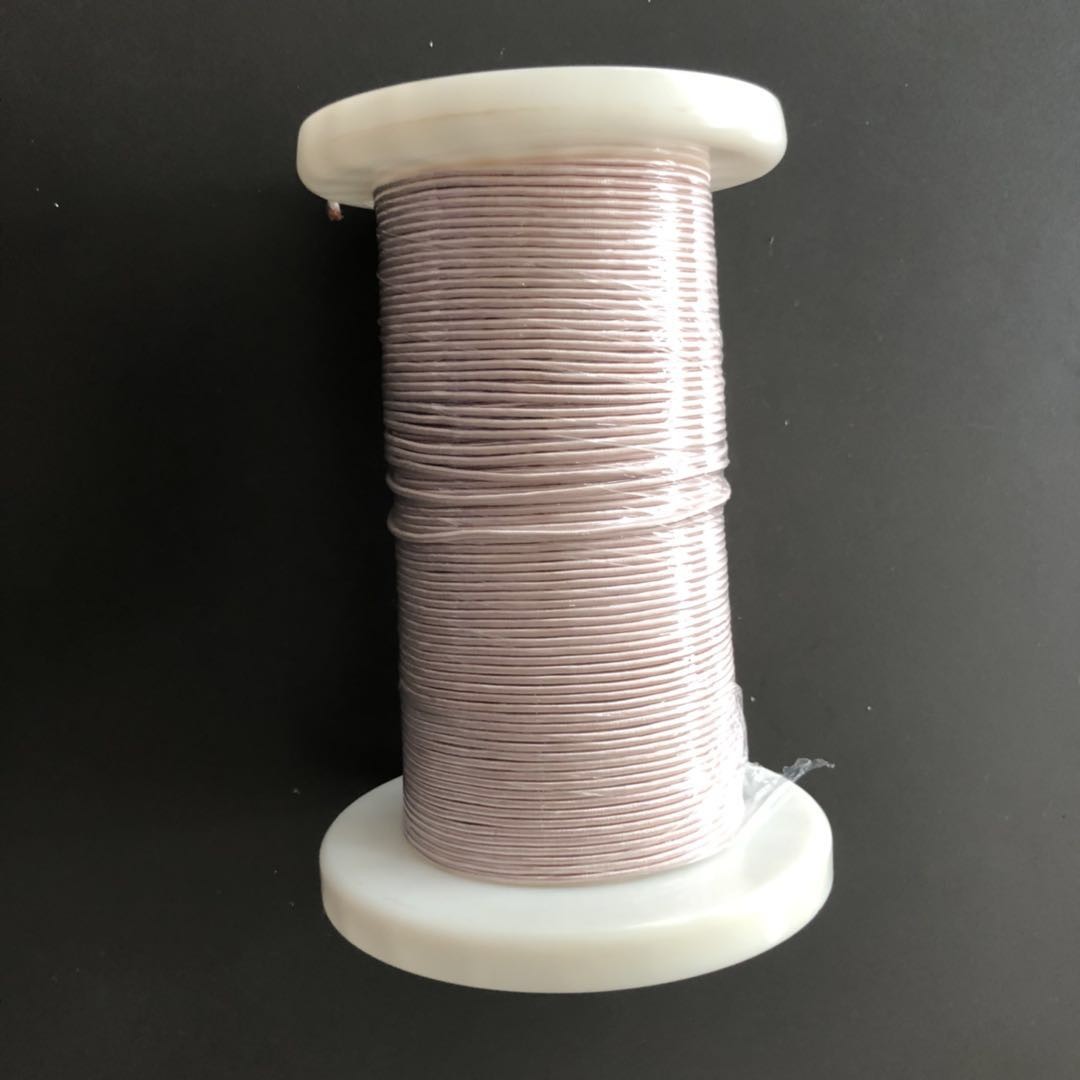

0.08 * 105 Stranded Copper Litz Wire High Frequency Ustc Silk Covered Insulated Wire

Basic Information
Place of Origin: China
Brand Name: Rvyuan
Certification: UL/SGS
Model Number: 0.12*180
Minimum Order Quantity: Different types with differet MOQ
Price: Negotiation
Packaging Details: Spool with carton
Delivery Time: 2-15 workding days
Payment Terms: Negotiation, T/T, L/C
Supply Ability: Satisfy your demand
Detail Information
Breakdown Voltage: 1500V Thermal Class: 155
Certificate: UL/SGS Insulation: UEW
Single Wire: 0.15mm Color: Nature/Red/Green/Black/Others
Strands: 105 Conductor Diameter: 0.08
Twist Pictch: 20.5
Highlight:

soldering litz wire

,

rectangular litz wire


Product Description

0.08 * 105 STRANDED COPPER LITZ WIRE HIGH FREQUENCY USTC SILK COVERED INSULATED WIRE

High frequency litz wire served with natural silk, polyester or nylon is characterized by an increase in mechanical performance and excellent dimensional stability. The precise serving quality guarantees a high degree of flexibility and prevents splicing during the process of cutting the litz wire and therefore allows for optimal contacting.The size range we can make is 0.03-0.8mm, and strands number is 2-4000.
BENEFITS

  • Increased efficiency

  • Mitigation of skin and proximity effect

  • Minimum eddy current losses

  • Lowered operating temperatures

  • Reduced footprint of final product

  • Substantial weight reduction

  • Avoidance of "hot spots"

DESIGN

New design or recommmendation according to customer requirements for size,turns,current,power and environmental parameters.

TIPS

Customers to use auotmatic line machine, semi-automatic machine, cutting coiling, please inform us, so that we can provide the best solution. component methods are divided into two kinds: with glue, without glue

APPLICATION

  • Induction coating hobs

  • RF transformers

  • RF transducers

  • E-Motors

0.08x105 USTC -2.jpg
