High Frequency Triple Insulated Magnet Wire Enameled Wire 1000 Vrms With Abrasion Resistance

Basic Information
Place of Origin: China
Brand Name: Rvyuan
Model Number: TIW-F
Minimum Order Quantity: Different types with differet MOQ
Price: Negotiation
Packaging Details: Spool with carton
Delivery Time: 2-15 days
Payment Terms: T/T, L/C,Negotiation
Supply Ability: Satisfy your demand
Detail Information
Certification: UL/ROHS/ICE/ISO9001/SGS Color: Red/Pink/Blue/Yellow
Size: 0.10-1.00mm Packing: Plastic Roll In Carton
Rated Temperature: 130/155 Rated Voltage: 1000 Vrms
Solderability: Directly
High Light:

insulated copper wire

,

tiw wire


Product Description

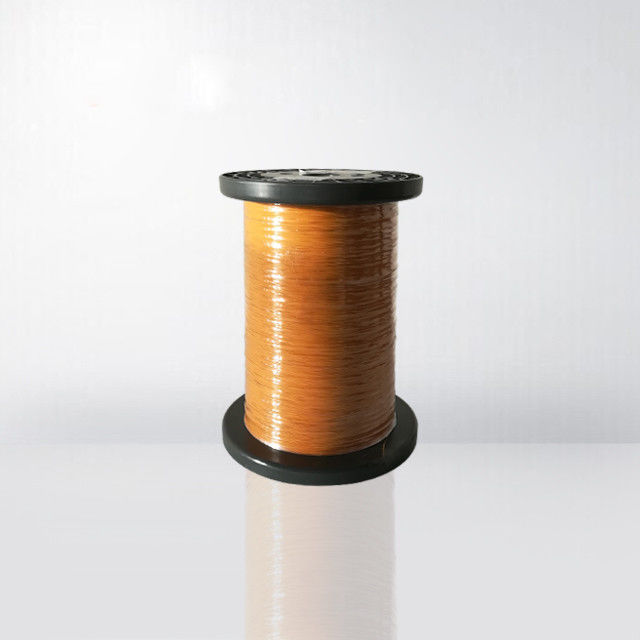

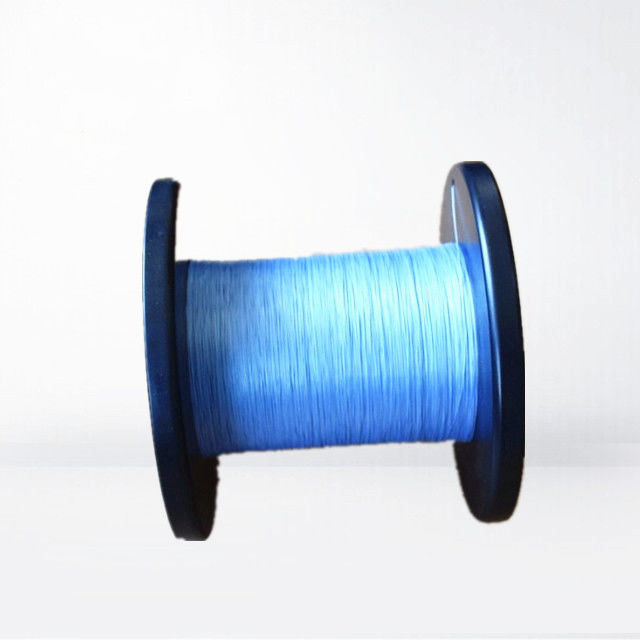

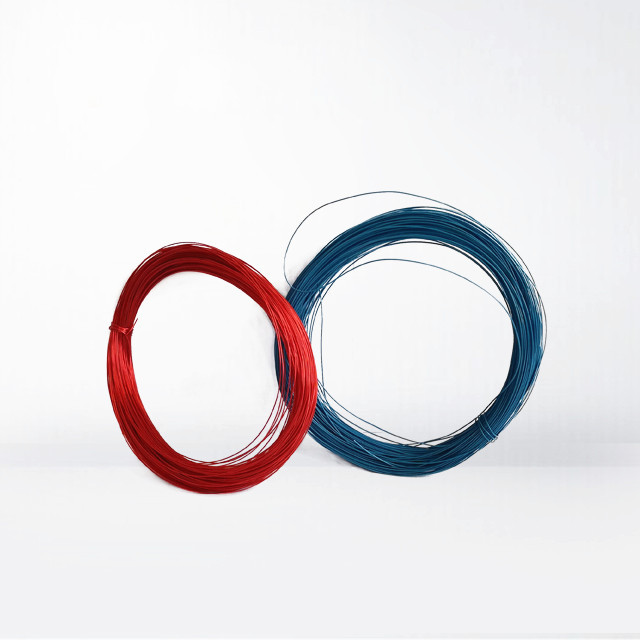

HIGH FREQUENCY TRIPLE INSULATED MAGNET WIRE ENAMELED WIRE 1000VRMS WITH ABRASION RESISTANCE

TIW,triple insulated copper wire a unique product for small transformers. Three layer extruded coatings of high performance polymer resins gives excellent dielectric properties to this type of winding wires. Unlike enamelled wires, three layers of insulation are extruded over the copper conductor by an automated manufacturing process ensure perfect central position of conductor. The conventional enamelled wire winding coils requires insulation between the primary and secondary coils by means of barrier tape or inter layer tape, to isolate primary and secondary windings. Since three layers coating is having very high dielectric strength, it has very less creepage factor. This positive feature of TIW serves to downsize switching transformers, and promises high production efficiency and cost reduction. Depending on the design, the transformer size can be reduced up to 40% and weight up to 60% as compared to transformers made up of enamelled wires.

EXCELLENT INSULATION QUALITY

Supreme UL grade of insulation:Reinforced Insulation

The most advanced insulation type: Triple extrusion

Electric Strength Test:

1.Straight Test:AC 3,000V/1 min above

2.Twisted Teat:AC 6,000V/1 min above

SUITABILITY FOR HIGH-FREQUENCY

Suitable for 30kHz above high frequency purpose

Equalized electric quality with extrusion type

Low dielectric constant

Handing/Storage convenience-Superior physical strength and durability for abrasion

IMPROVED PRODUCTIVITY

Simple production processes: No barrier tape and interleaved insulation tape are required

Solderability: Soldering can be conducted without removal of insulation layer

High Frequency Triple Insulated Magnet Wire Enameled Wire 1000 Vrms With Abrasion Resistance 0

Conductor m/m End product m/m Maximum Conductor Resistance at 20 ℃ Minimum Elongation %
Diameter m/m Tolerance m/m Target outside diameter Tolerance m/m
0.10 ±0.008 0.30 ±0.02 2264.7 15
0.12 ±0.008 0.32 ±0.02 1786.0 15
0.14 ±0.008 0.34 ±0.02 1286.0 15
0.15 ±0.008 0.35 ±0.02 1111.0 15
0.16 ±0.008 0.36 ±0.02 908.8 15
0.17 ±0.008 0.37 ±0.02 853.5 15
0.18 ±0.008 0.38 ±0.02 757.0 15
0.19 ±0.008 0.39 ±0.02 676.2 15
0.20 ±0.008 0.40 ±0.02 607.6 15
0.21 ±0.008 0.41 ±0.02 549.0 15
0.22 ±0.008 0.42 ±0.02 498.4 15
0.23 ±0.008 0.43 ±0.02 454.5 15
0.24 ±0.008 0.44 ±0.02 416.2 15
0.25 ±0.008 0.45 ±0.02 382.5 15
0.26 ±0.010 0.46 ±0.02 358.4 15
0.27 ±0.010 0.47 ±0.02 331.4 15
0.28 ±0.010 0.48 ±0.02 307.3 15
0.29 ±0.010 0.49 ±0.02 285.7 20
0.30 ±0.010 0.50 ±0.02 262.9 20
0.32 ±0.010 0.52 ±0.02 230.0 20
0.35 ±0.010 0.55 ±0.02 191.2 20
0.37 ±0.010 0.57 ±0.02 170.6 20
0.40 ±0.010 0.60 ±0.02 145.3 20
0.45 ±0.010 0.65 ±0.02 114.2 20
0.50 ±0.010 0.70 ±0.02 91.4 20
0.55 ±0.020 0.75 ±0.02 78.2 20
0.60 ±0.020 0.80 ±0.02 65.3 20
0.65 ±0.020 0.85 ±0.02 88.3 20
0.70 ±0.020 0.90 ±0.02 47.2 20
0.75 ±0.020 0.95 ±0.02 41.2 20
0.80 ±0.020 1.00 ±0.02 36.1 25
0.85 ±0.020 1.05 ±0.02 31.9 25
0.90 ±0.020 1.10 ±0.02 28.4 25
0.95 ±0.020 1.15 ±0.02 25.4 25
1.00 ±0.030 1.20 ±0.02 23.3 25
