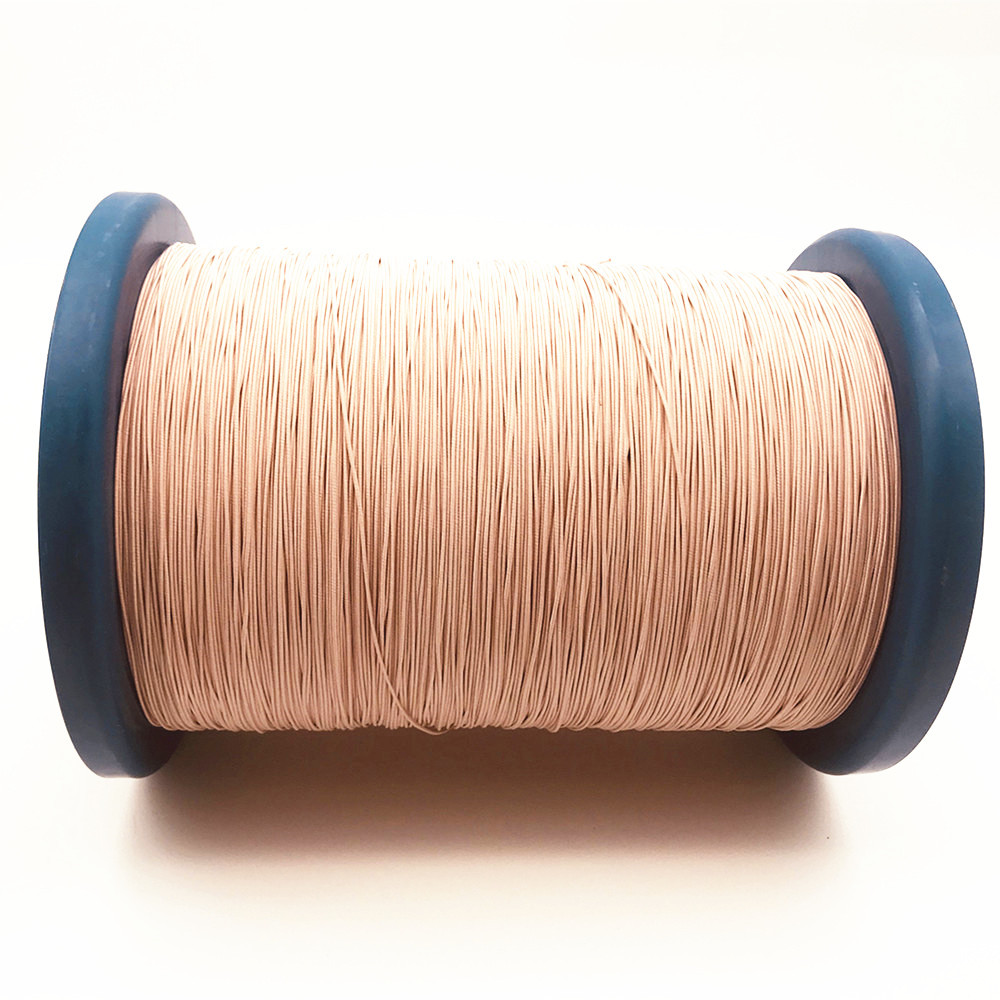

2 - 6000 Strands 155 / 180 Ustc Nylon Covered Litz Wire Copper Twisted Silk Covered

Basic Information
Place of Origin: China
Brand Name: Rvyuan
Certification: IEC/NEMA/JIS/RoHS/ISO
Model Number: Copper litz wire
Minimum Order Quantity: 20kg
Price: Negotiation
Packaging Details: Spool with carton
Delivery Time: 2-15 workding days
Payment Terms: Negotiation
Supply Ability: Satisfy your demand
Detail Information
Name: 2 - 6000 Strands 155 / 180 USTC Copper Twisted Wire Silk Covered Litz Wire Certification: ISO9001/ISO14001/UL/SGS
Diameter: 0.03mm-0.8mm Standard: GB/T5013.3/IEC60245-3:1994
Conductor: Copper Insulation: Enamel
Rated Temperature: 155/180 Key Word: 2 - 6000 Strands 155 / 180 USTC Copper Twisted Wire Silk Covered Litz Wire
No. Of Strands: 560
High Light:

6000 strands ustc litz wire

,

twisted ustc litz wire

,

2 strands ustc wire


Product Description

2 - 6000 Strands 155 / 180 USTC Copper twisted wire Silk covered litz wire

Single wire diameter (mm): 0.03-1.00

Number of strands: 2-6000

Maximum Finished Outer Diameter (mm): 10

Paint film insulation class: Class B/Class F/Class H

Film Type: Polyurethane

Paint film thickness: 1UEW/2UEW/3UEW

Stranding method: single twist/multiple twist

Stranding direction: forward (S)/reverse (Z)

Twisting distance: 20-130mm

Filament Type: Polyester Fiber/Acetate Filament/Hot Fuse Filament

Silk layer color: white/red

Withstand voltage (V): >2200

Number of silk layers: 1/2/4

Reel Specifications: PT-4/PT-10/PT-15

Features: In addition to the same characteristics as enameled stranded wire, silk covered wire has the characteristics of stable shape and good impregnation effect, and the breakdown voltage can be increased by 500~1200V.

Applications: Antenna inductors, high-power LED lighting, LCD TVs, ultrasonic equipment, high-power high-frequency transformers, metal detectors, mobile phone wireless charging, etc.



Test report: 0.08mm x 560 strands, thermal grade 180
Item
Standard
Test result
Single wire diameter mm
0.087-0.103
0.090
0.093
Max. overall diameter(mm)
3.35
2.55
2.70
Max.O.D. mm
0.08±0.003
0.078
0.080
Max. Resistance Ω/m at20℃
0.006741
0.00618
0.00622
Mini breakdown voltage
1100
2700
3200

Name

0.03mm -0.8mm 155 / 180 Ustc UDTC High Frequency Enameled Copper Litz Wire

Key word

Copper litz wire

Insulationh

Enamel, polyster cover

Thermal rating

155degree

Diameter of the enameled copper wire

0.08mm

Number of strands

155 / 180

Type

0.03mm -0.8mm 155 / 180 Ustc UDTC High Frequency Enameled Copper Litz Wire





Ruiyuan Company was awarded the "Quality A Supplier" by a German Brand

2 - 6000 Strands 155 / 180 Ustc Nylon Covered Litz Wire Copper Twisted Silk Covered 0

2 - 6000 Strands 155 / 180 Ustc Nylon Covered Litz Wire Copper Twisted Silk Covered 1

2 - 6000 Strands 155 / 180 Ustc Nylon Covered Litz Wire Copper Twisted Silk Covered 2

2 - 6000 Strands 155 / 180 Ustc Nylon Covered Litz Wire Copper Twisted Silk Covered 3
