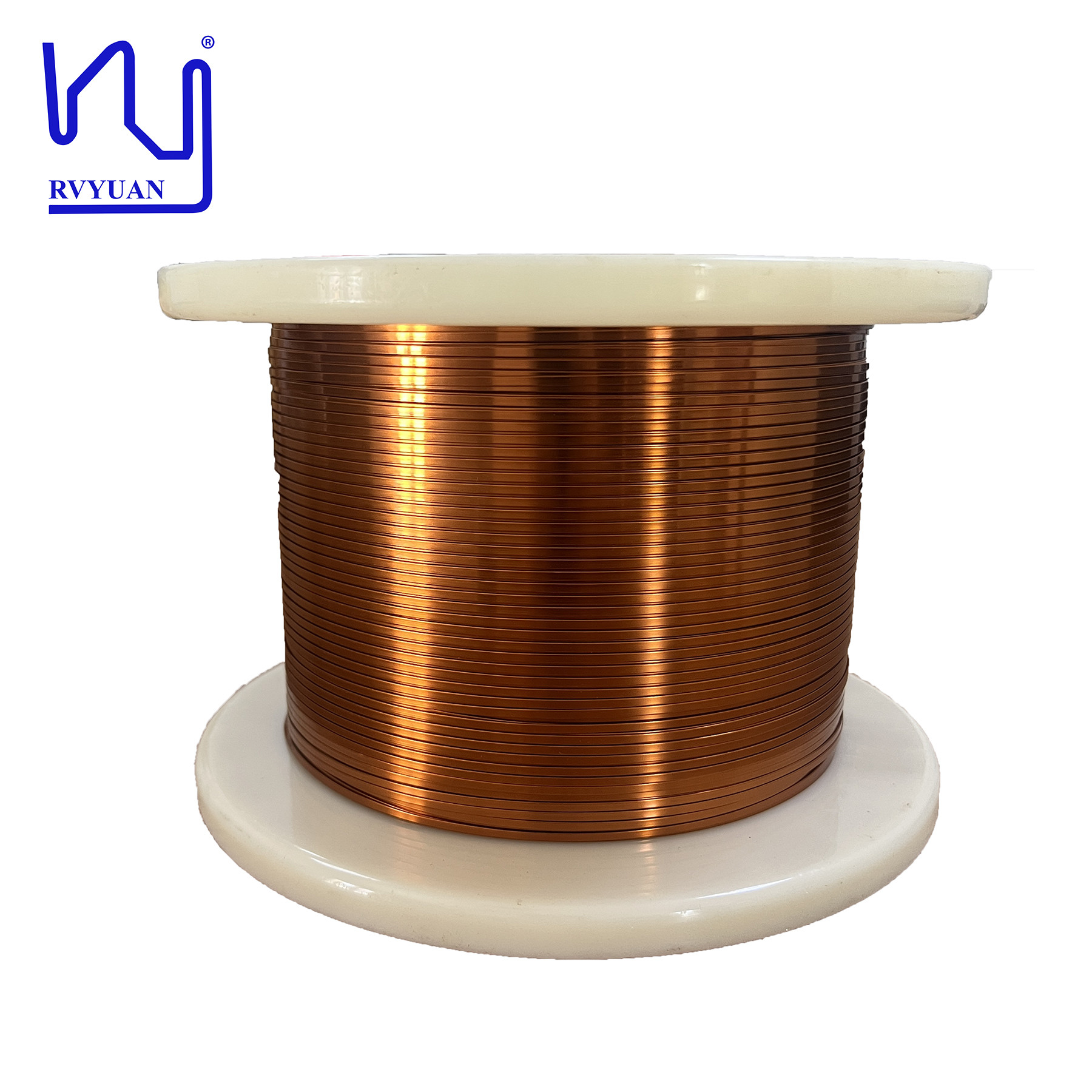

Solderable Self Bonding 0.5mmx2.0mm Enameled Flat Copper Wire For Inductor

Basic Information

Place of Origin:	China
Brand Name:	RVYUAN
Certification:	IEC/NEMA/JIS/RoHS/ISO
Model Number:	UEWH

Minimum Order Quantity:	10KG
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	2-15 workding days
Payment Terms:	T/T, L/C
Supply Ability:	Satisfy your demand

Get Best Price Contact Now

Detail Information

Shape:	Rectangular	Conductor Dimension (Width):	2mm
Unilateral Insulation Layer Thickness (Width):	0.5mm	Bond Type:	Hot Wind
Thermal Grade:	220	Key Word:	Solderable Self Bonding 0.5mmx1.0mm Enameled Flat Copper Wire For Inductor
Highlight:	solderable Enameled Flat Copper Wire , self bonding enameled flat copper wire , 0.2mmx5.0mm Enameled Flat Copper Wire

Product Description

Solderable self bonding 0.5mmx2.0mm Enameled Flat Copper Wire For Inductor

In the motor sector, our enameled flat copper wire is an essential material for winding coils, providing the necessary conductivity and efficiency for all types of motors. Similarly, in inductors, our wire plays a key role in energy storage and magnetic field generation, contributing to the overall functionality of the device.

Item		Conductor dimension		Unilateral adhesive thickness	Unilateral insulation thickness		Overall dimension		Dielectric breakdown voltage	Conductor resistance
Item		Thickness	Width	Unilateral adhesive thickness	Thickness	Width	Thickness	Width	Dielectric breakdown voltage	Conductor resistance
Unit		mm	mm	mm	mm	mm	mm	mm	kv	Ω/km 20℃
SPEC	AVE	0.500	2.000	/	0.025	0.025	/	/
	Max	0.509	2.060	/	0.040	0.040	0.0560	2.110		19.490
	Min	0.491	1.940	0.002	0.010	0.010	/	/	0.700
No. 1		0.495	2.001	0.003	0.023	0.022	0.548	2.052	2.310	18.420
No. 2									2.690
No. 3									2.520
No. 4									3.101
No. 5									3.454
No. 6									/
No. 7									/
No. 8									/
No. 9
No. 10									/
Avg		0.495	2.001	0.003	0.023	0.022	0.548	2.052	2.815
Number of reading		1	1				1	1	5
Min. reading		0.495	2.001	0.003	0.023	0.022	0.548	2.052	2.310
Max. reading		0.495	2.001	0.003	0.023	0.022	0.548	2.052	3.454
Range		0.000	0.000				0.000	0.000	1.144
Result		OK	OK	OK	OK	OK	OK	OK	OK	OK
